Tip Calibration Manual Tip Calibration
Page 157
© Copyright 2021 Stratasys. All rights reserved.

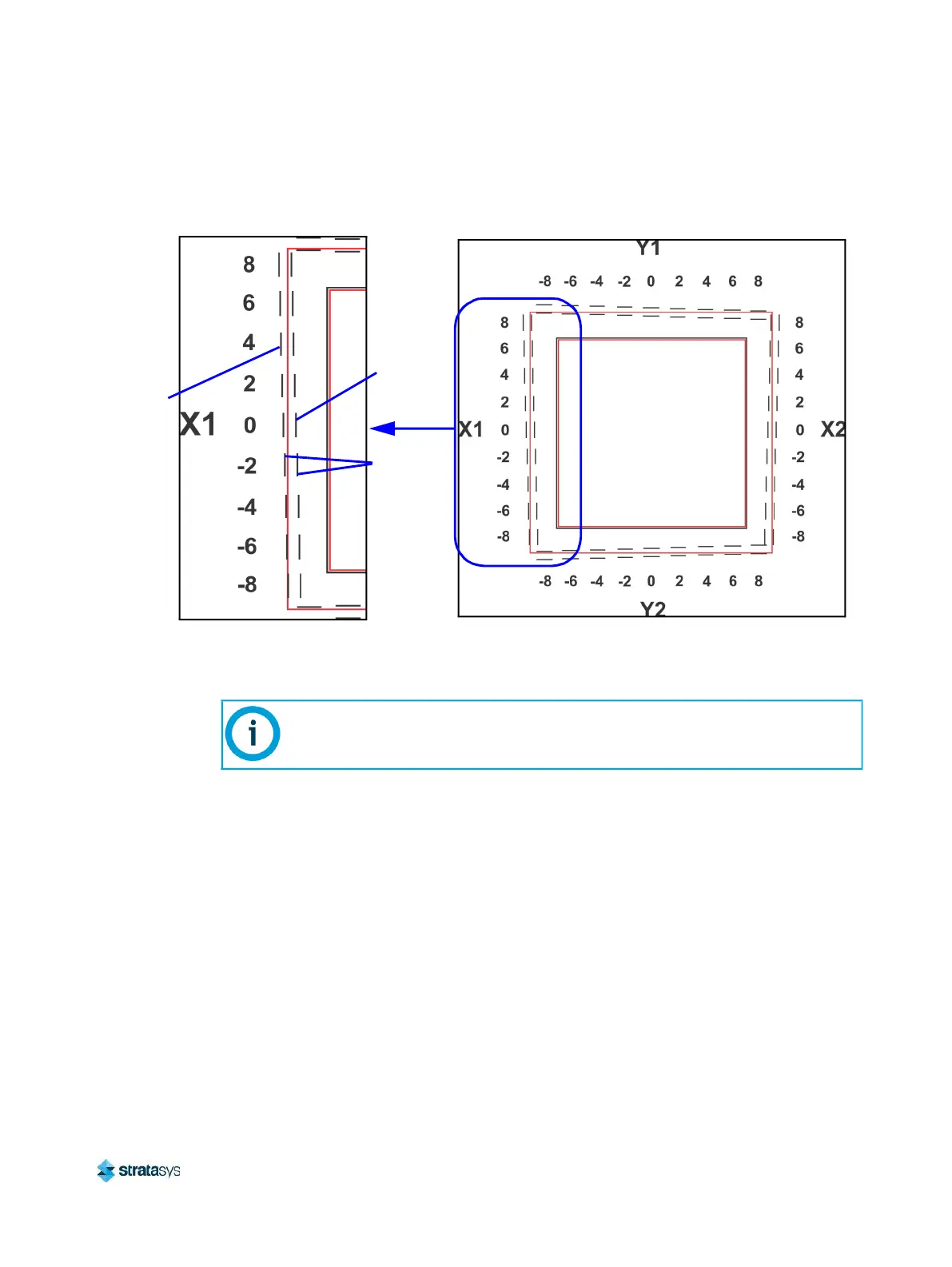

Figure 12: Calibration Part
c. Within the Manual Tip Calibration page, slide all four of the scale icons on the screen to
match where the support toolpath is most centered between the alignment indicators.
The Delta X and Delta Y fields will change to reflect adjustments made.
Calibration Part
Support
toolpath,
most
centered
at 4
Not
centered
at 0
Support toolpath is most centered between the alignment
indicators at the 4, indicating an adjustment of X1 = 0.004
Alignment
indicators
One offset value must be selected for each side (X1, X2, Y1, and Y2).
