Tip Calibration Manual Tip Calibration
Page 156
© Copyright 2021 Stratasys. All rights reserved.

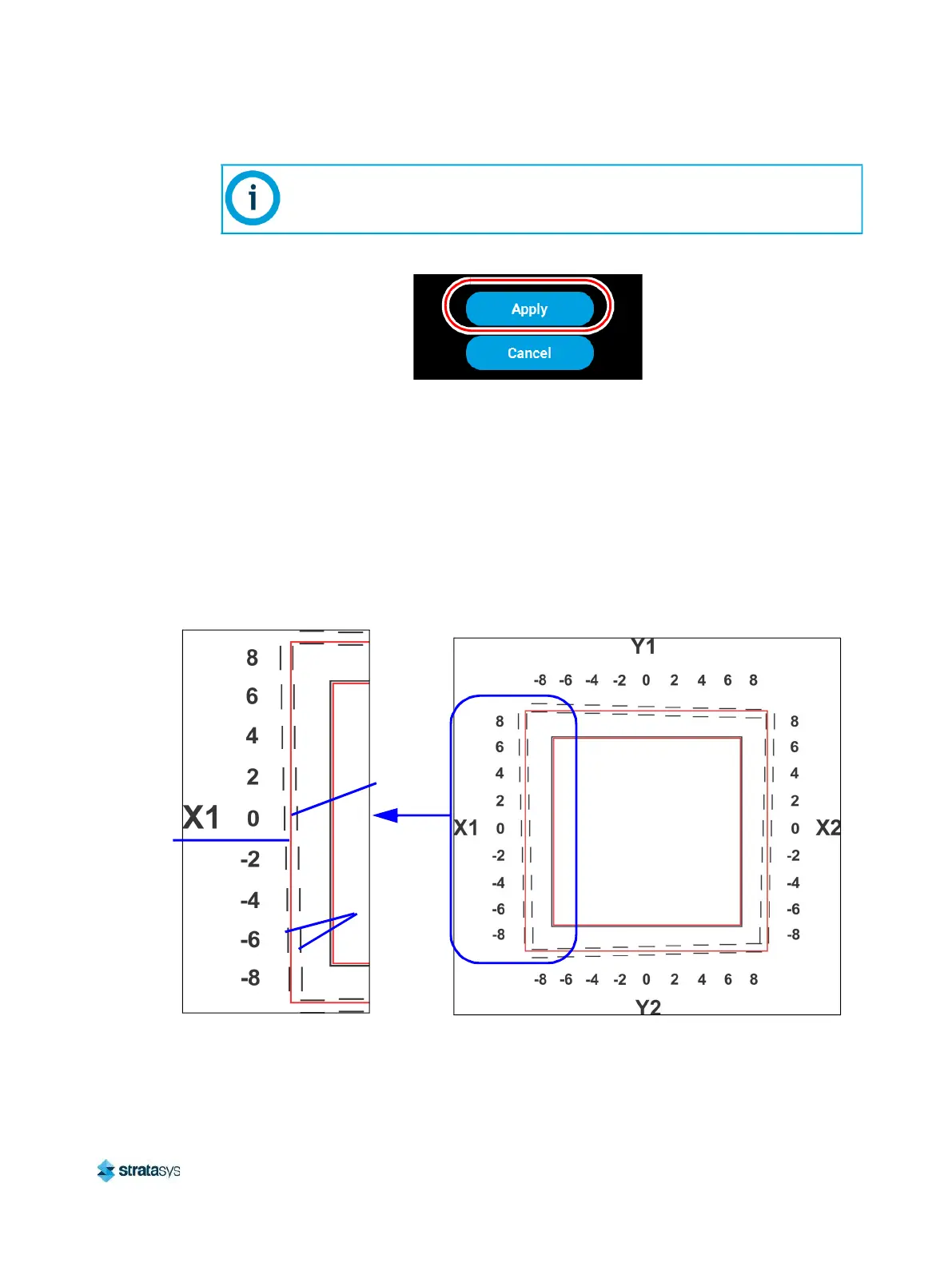

Figure 10: Apply button active
2. Determine the XY Offset Adjustment needed for your printer.
a. Using a magnifier (included in the Welcome Kit), view the relationship between the
support calibration toolpath and the alignment indicators to determine the X and Y axis
calibration.
b. Determine where on each side (X1, X2, Y1, and Y2) the support toolpath is most
centered between the X-Y alignment indicators (see Figure 11 or Figure 12). The
numbers on the calibration part represent thousandths of an inch (e.g., 4 = 0.004 in.).
Figure 11: Calibration Part
The Apply button will become active when you modify an offset value by dragging
the sliding scale icons or pressing the up and down adjustment buttons.
Calibration Part
Alignment
indicators
Support
toolpath
Magnified single side of a calibration
part with a reading of 0.
Most
centered
at 0
