Customer Replaceable Units Carriage Board
Page 189
© Copyright 2021 Stratasys. All rights reserved.
7. Use a 3 mm hex wrench to loosen the mounting screw that secures the carriage board
assembly to the carriage assembly. Lift and remove the carriage board assembly from the
gantry enclosure.

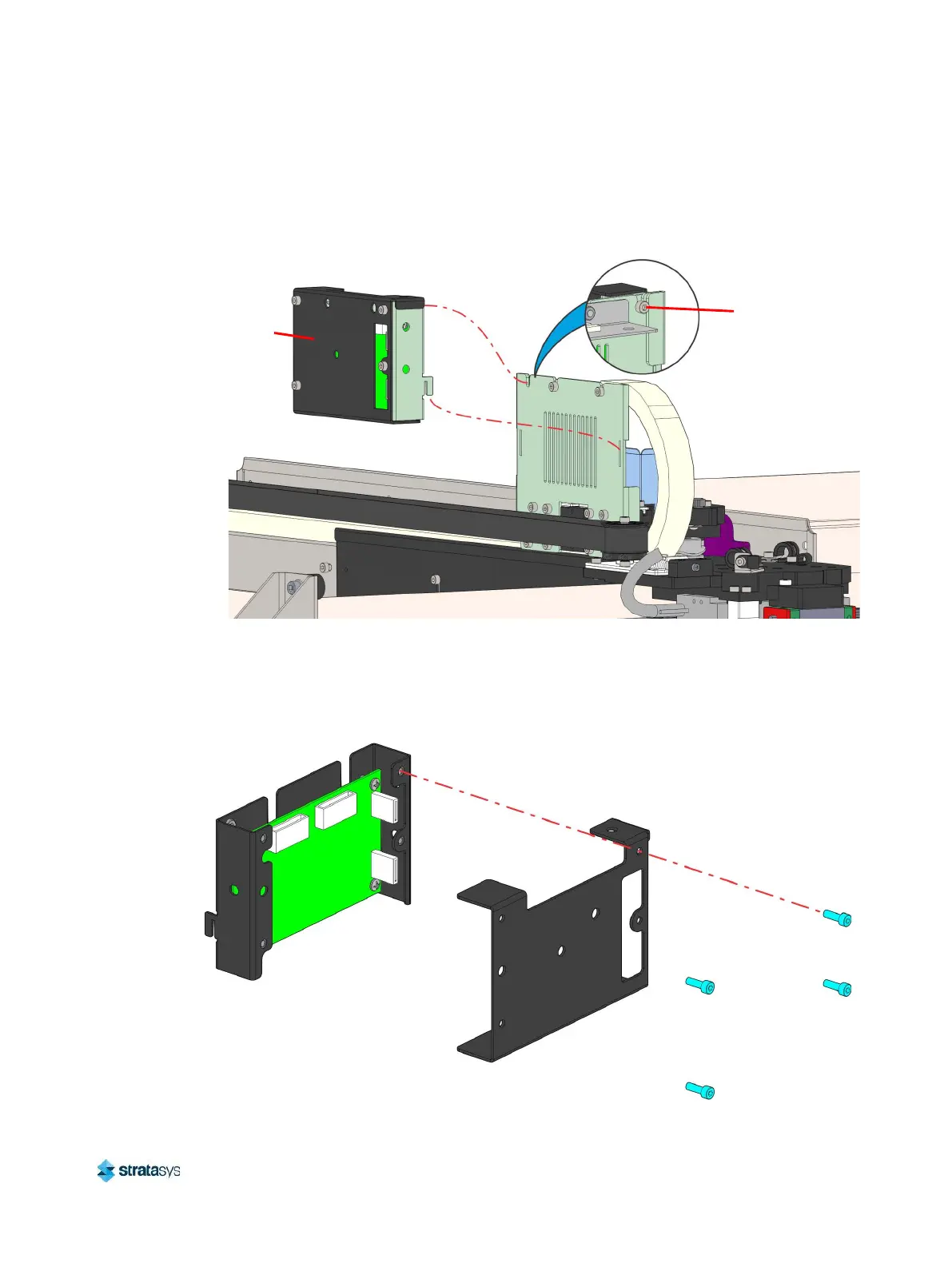

Figure 27: Head Board Assembly Mounting Location
8. Using a 3 mm hex wrench, remove the screws (4) securing the cover to the carriage board
mounting bracket. Remove the cover.
Figure 28: Carriage board cover detail
Carriage
Board
Assembly
Mounting
Screw
To Next Page
