Customer Replaceable Units Bellows, Right/Left
Page 199
© Copyright 2021 Stratasys. All rights reserved.
6. From the top side access door, use a 3 mm hex wrench to remove the screws (5) securing
the bellows to the side of the oven frame. See Figure 35.

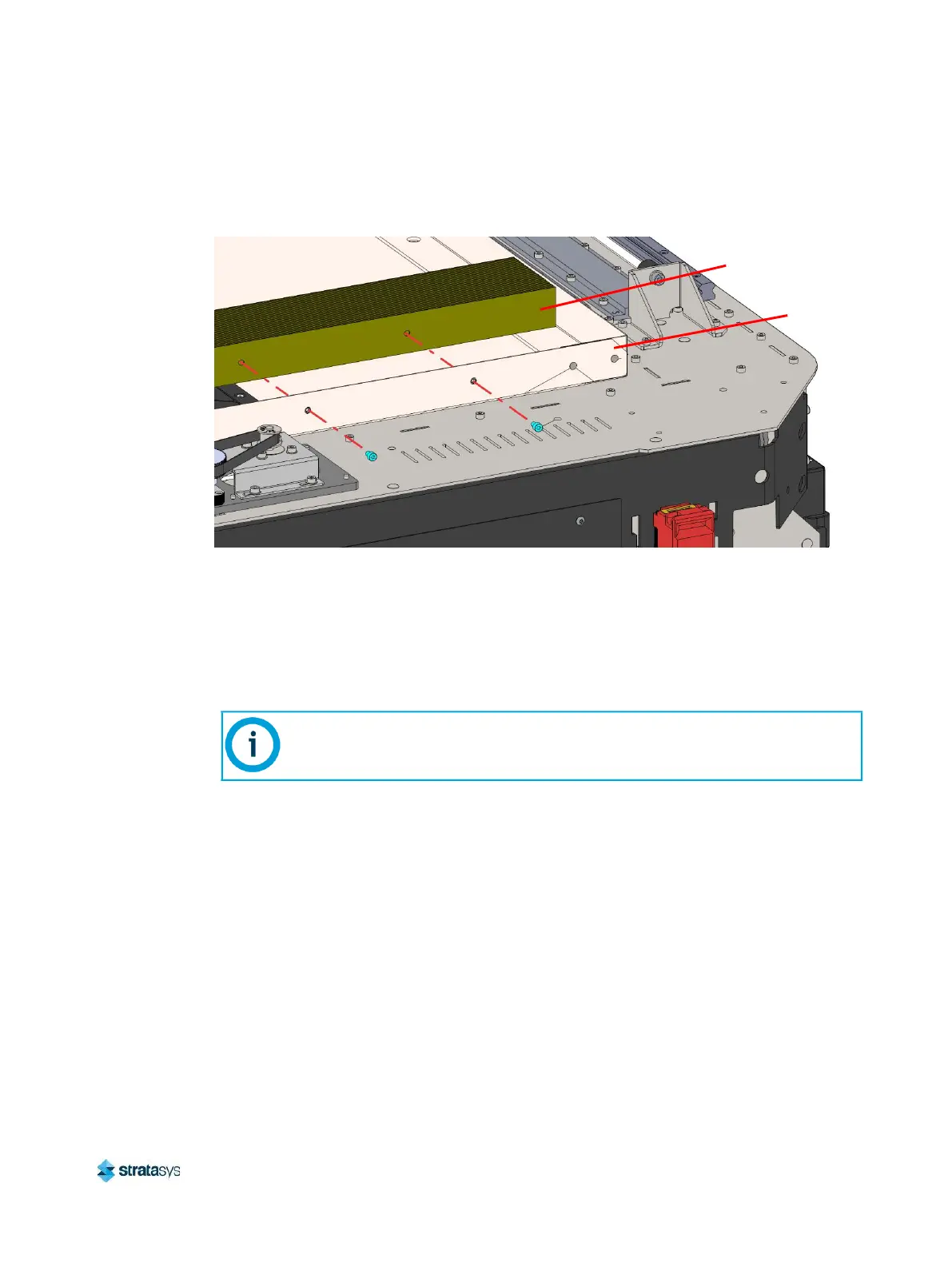

Figure 35: Bellows Detail
7. Remove the bellows from the gantry.
Installing the Bellows
1. From the top side access door, use a 3 mm hex wrench to install the screws (5) securing
the bellows to the side of the oven frame. See Figure 35.
2. From inside the oven enclosure, use a 3 mm hex wrench to install the screws (5) securing
the bellows to the Y bridge.
3.
4. Close the oven door.
5. Close the top side access door.
Bellows
Oven
Frame
Move the Y-bridge as necessary to access bellows mounting screw locations.
