Customer Replaceable Units Y Motor
Page 209
© Copyright 2021 Stratasys. All rights reserved.
8. Remove the Y belt from the Y axis idler pulley.
9. From the rear of the gantry, use a 3 mm hex wrench to remove the screws (6) securing the
Y motor and bracket to the Y bridge. See Figure 42.

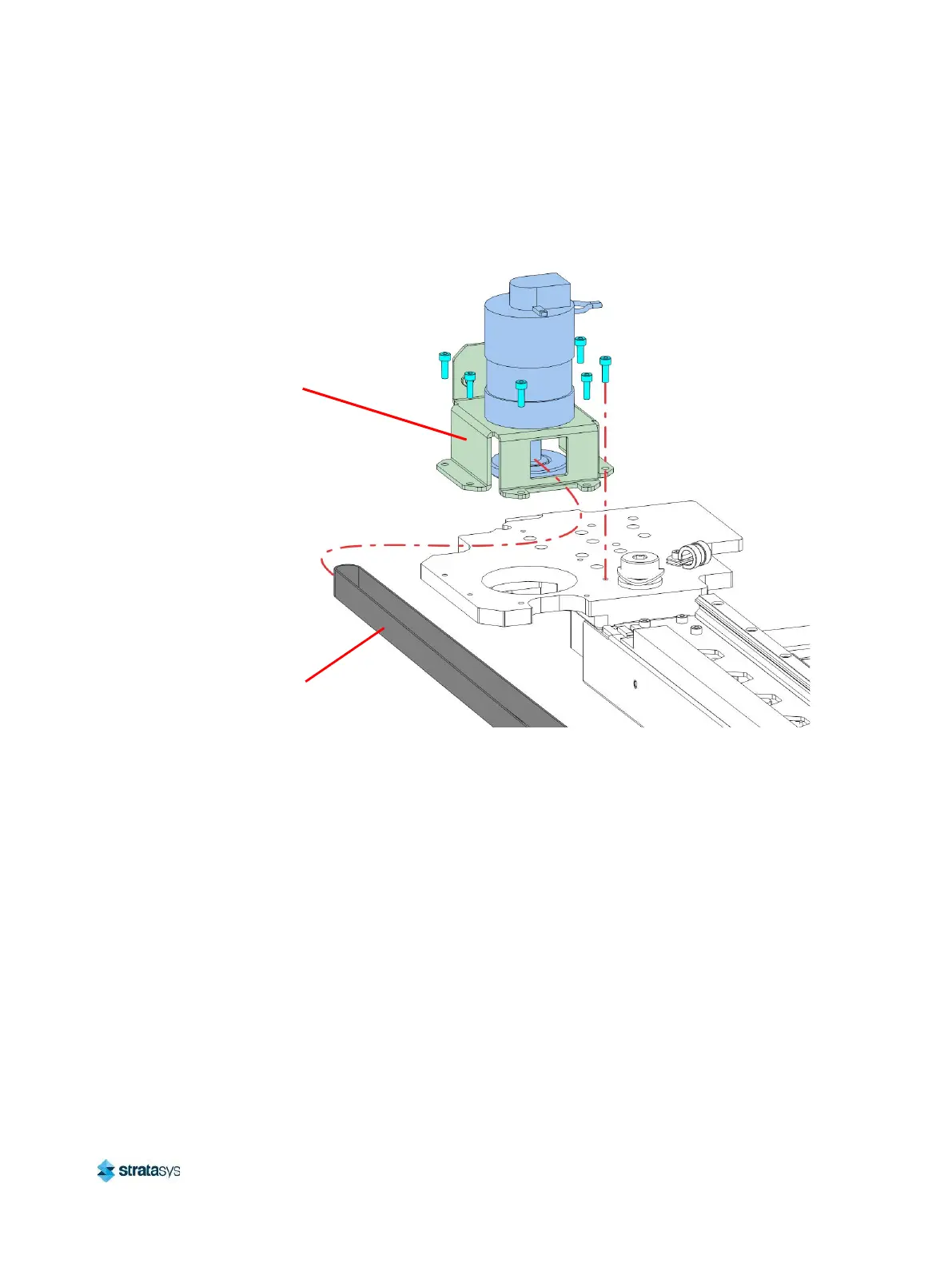

Figure 42: Y motor mounting screw locations
10. Extract the end of the Y belt from the Y motor pulley and motor bracket..
11. Remove the Y motor assembly from the printer.
Y Motor
Bracket
Y Belt
