Stratasys F770 - Page 232

Customer Replaceable Units Z-Motor
Page 221
© Copyright 2021 Stratasys. All rights reserved.
12. Use a 3 mm hex wrench to remove the screw and washer sets (4) that secure the Z motor
to the tension bracket. Remove the Z motor from the printer. See Figure 53.

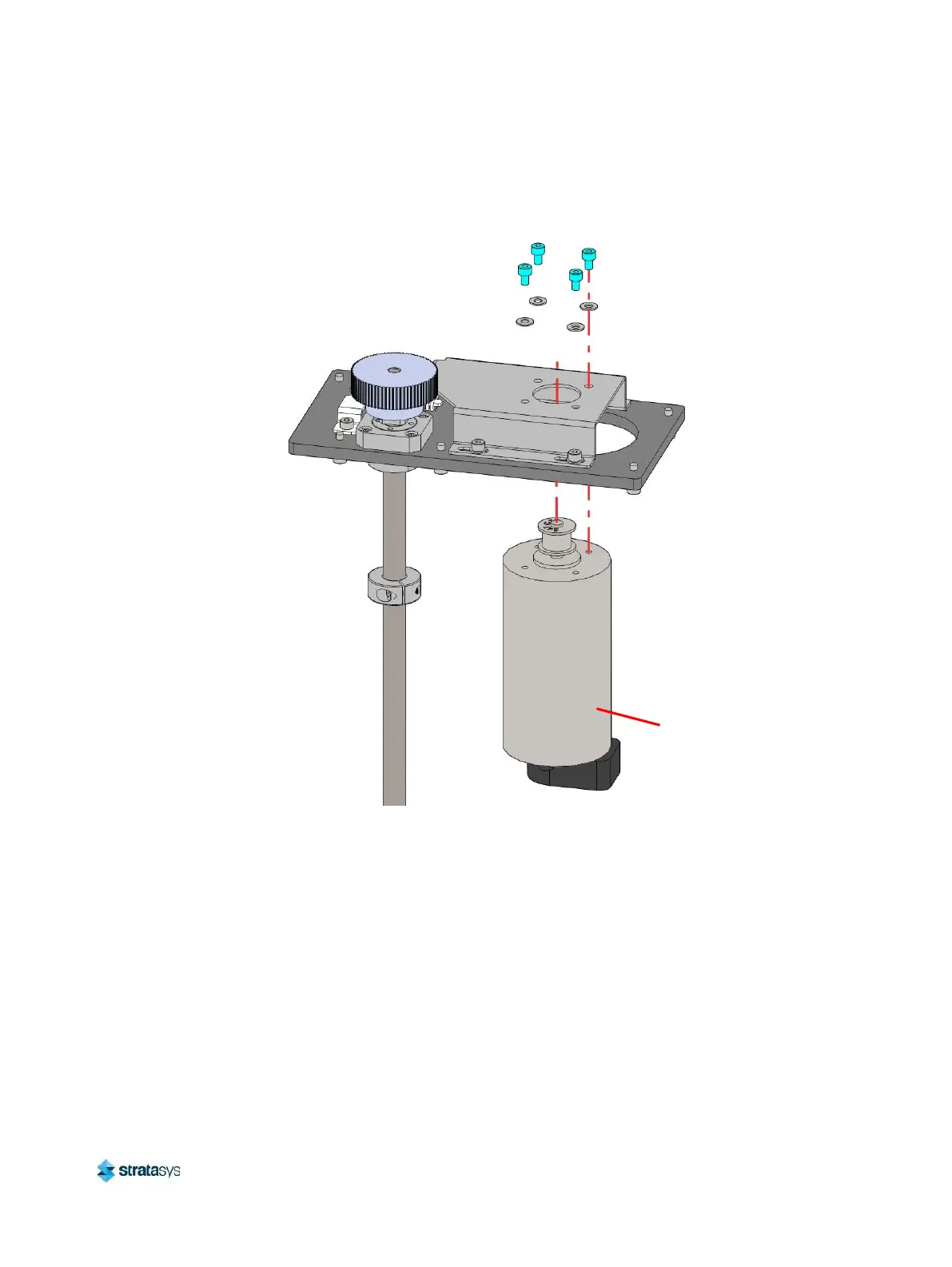

Figure 53: Z Motor Mounting Screw Locations
Z Motor
