Description Of Specific Functions 109
V560 Series High Performance Closed-Loop Vector Inverter User Manual
7: Channel 1 reduced by Channel 2
Frequency set value = set value 1* (1-set value 2 /[F0.2.31])
8: Channel 1 reduced by Channel 2
Frequency set value = set value 1 * set value 2 /[F0.2.31]
9: Highest value Channel 1 or Channel 2
Frequency set value = Max (|set value 1|, |set value 2|)
The maximum value between the absolute values of set value 1 and set value 2 is taken as the frequency set
value, and the combination value must be unipolar.
10: Lowest value Channel 1 or Channel 2
Frequency set value = Min (|set value 1|, |set value 2|)
The minimum value between the absolute values of set value 1 and set value 2 is taken as the frequency set
value, and the combination value must be unipolar.

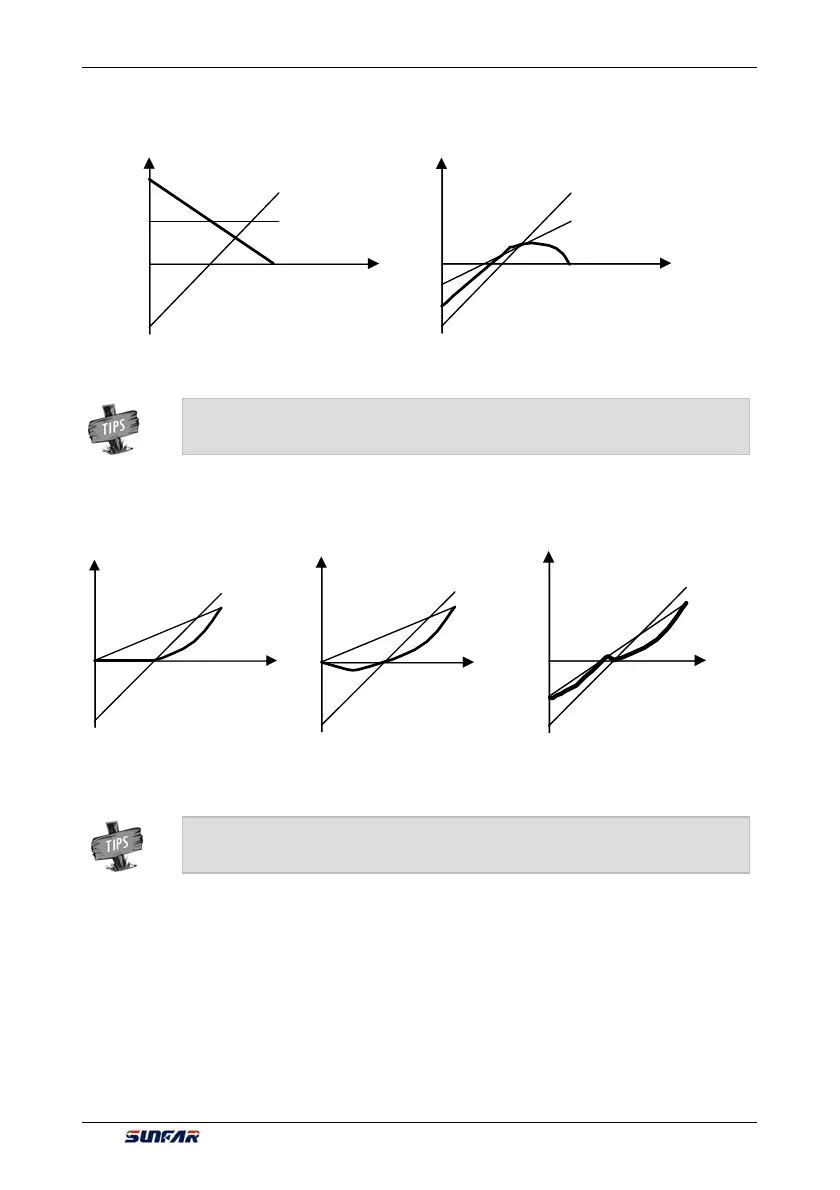

Combination value
Set value 1 (bipolarity)
Set value 2 (bipolarity)
（b）
Figure 7-9-E Frequency combination sketch 5
Combination value
Set value 1 (bipolarity)
Set value 2 (bipolarity)
（c）
Combination value
Set value 1 (unipolarity)
Set value 2 (bipolarity)
（a）
Combination value
Set value 1 (bipolarity)
Set value 2 (bipolarity)
（b）
Combination value
Set value 1(unipolarity)
Set value 2(bipolarity)
（a）
Figure 7-9-D Frequency combination sketch 4
¾ The combination results will only be in bipolarity when the setting source 1 is set in
bipolarity way. (Figure b)
¾ The combination results will only be in bipolarity when the setting source 1 is set in
bipolarity way. (Figure b, Figure c)
