7.27 SIMPLE PROGRAMMABLE MULTI-STAGE OPERATION
(GROUP F6.1)
F6.1.16~F6.1.30 Setting of stage 1~15 Setting range: 0000~1321 Factory default:0000
The unit: Operating frequency source/setting source at each stage
0: Multi-stage frequency setting 1~15/Process PID multi-stage setting 1~7 (1~7)
Stage operation frequency set values should be set by multi-stage frequency setting 1~15 (Group F6.0)/
Process PID multi-stage setting 1~7 (Group F7.1).
1: Frequency command (F0.1.16)/Process PID setting (F7.0.01)
Stage operation frequency set values should be set by frequency command (F0.1.16)/Process PID setting
(F7.0.01).
F6.1.31~ F6.1.45 Stage 1 running time
Setting range:
0.0~6500.0
Factory default: 0.0
The parameter is used to the setting of each stage's operation time; when it occurs to a zero, it means
jumping over this operation stage.
7.28 SWING FREQUENCY OPERATION (GROUP F6.2)
Swing frequency operation is regulated by upper and lower boundary of frequency. If the function's
parameter group is improper, swing frequency operates properly.
[F6.2.48]
[F0.0.16] Confirmed external frequency
set value
Frequency at the center
of the swing frequency
[F6.2.53]
Swing
frequency
amplitude
[F6.2.47]
[F6.2.50]× Swing frequency amplitude
[F6.2.51] [F6.2.52]
Running frequency
Time
F6.2.46 Function selecting (H) Setting range: 0000~1112 Factory default: 0000
_ _ _ X : Function Setting
0: Function closed
The functional parameter of Group F6.2 is available.
1: Function effective
In case of frequency (revolution) instruction source allowed to the priority, the frequency inverter adopts
swing function.
2: Terminal selectivity effective

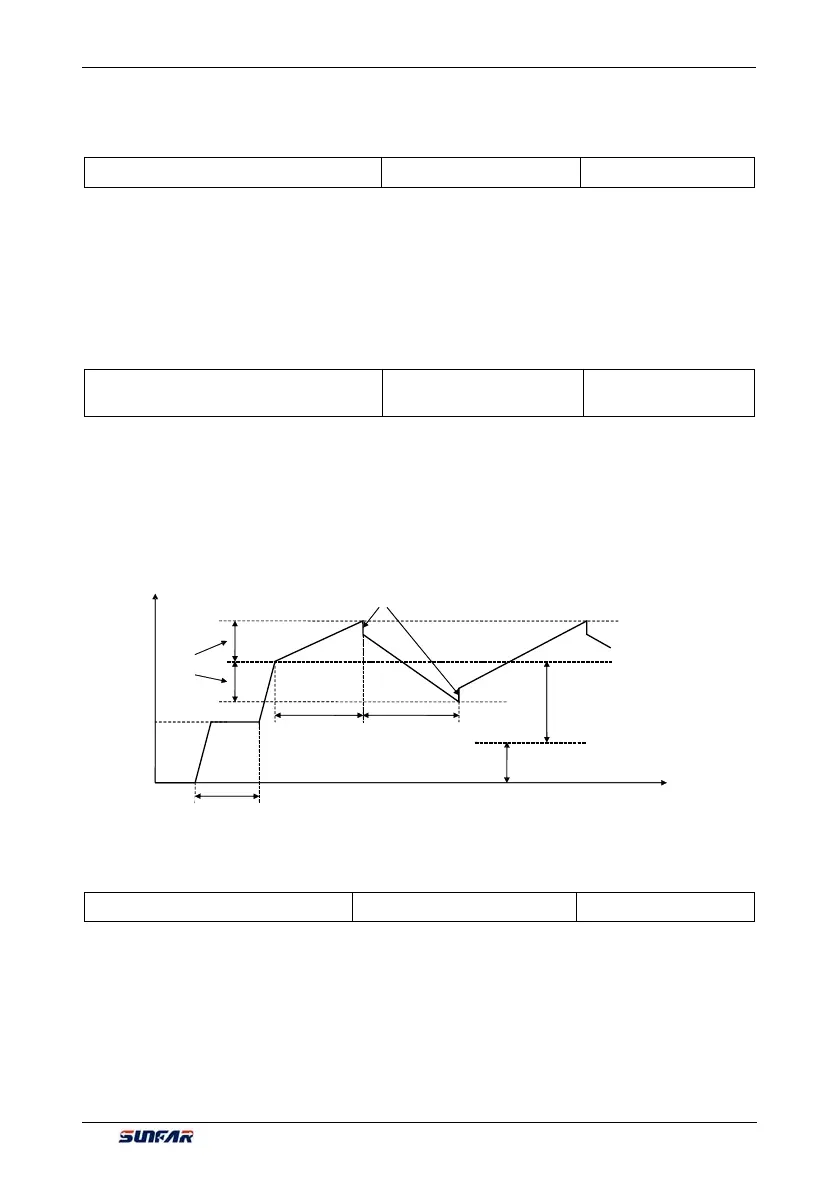

Figure 7-50 Swing frequency operation sketch
