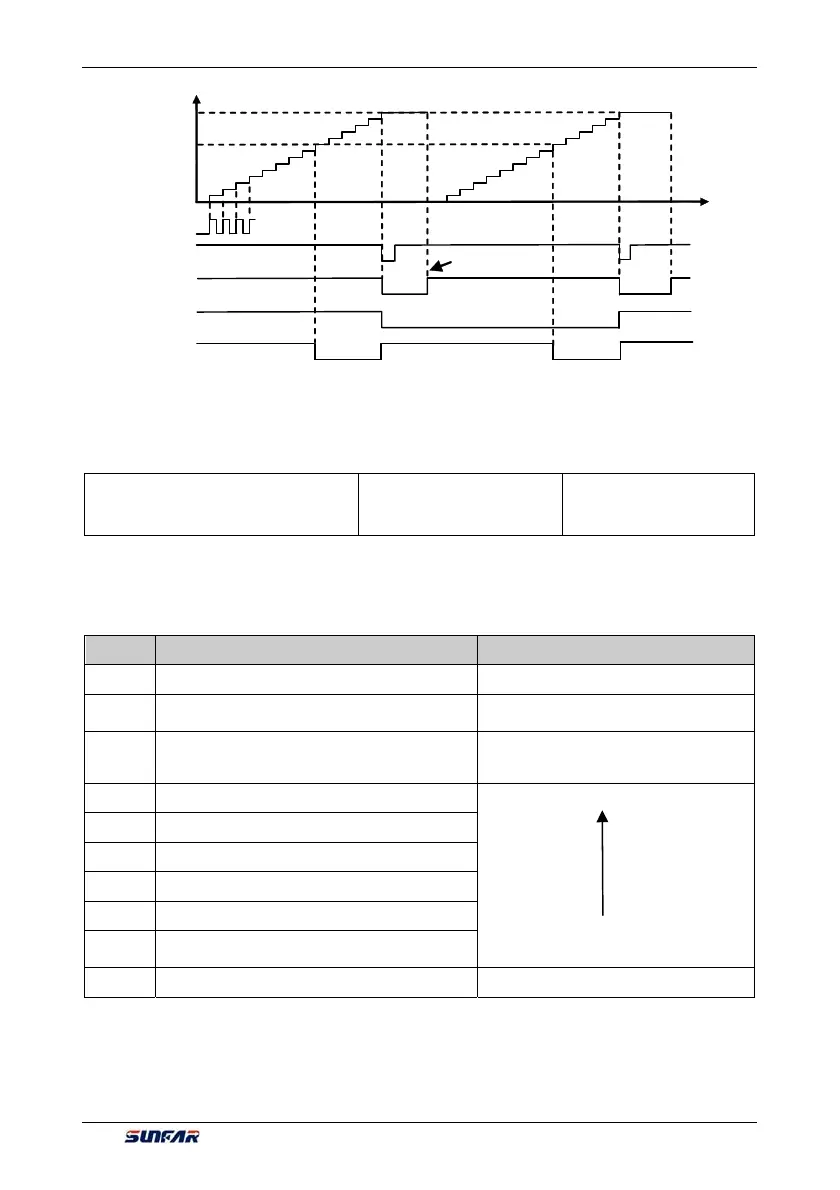

Description Of Specific Functions 155
V560 Series High Performance Closed-Loop Vector Inverter User Manual
7.24 AUXILIARY FUNCTIONS (GROUP F5.3)
F5.3.28 Priority selection of
frequency(revolution) command
source
Setting range: 0000~7777 Factory default: 0000
This parameter is used to define the priority order of (revolving speed) instructions source of given frequency.
When the setting channel with higher priority is invalid, frequency set value of frequency inverter will
automatically set value with the frequency of next top priority.
Table 7-17 Frequency Setting Order of V560 Frequency Inverter:
Priority Setting Remarks
1 Inching frequency setting Top priority
2 Torque control method
In case of torque control method, frequency
setting is invalid
3 Priority defined by this parameter (four at most)
Priority defined by this parameter shall be
deleted from the list of lower priority
automatically
4 process PID output
high
low
5 Swing frequency Operating frequency
6 compensation PID output
7 Revolving speed setting channel (F8.0.00)
8 Automatic multiple frequency operating order
9
Multiple operating frequency of external terminal
selection
10 Frequency setting channel (F0.1.16) Lowest priority
Set value 2
Set value 1
Set value 2 reaching (0.5 Sec. pulse)
Set value 2 reaching (level)
REV after reaching set value 2
REV after reaching set value 1 or 2
Reset
Clock pulse
Figure 7-42-B Counter function 2
