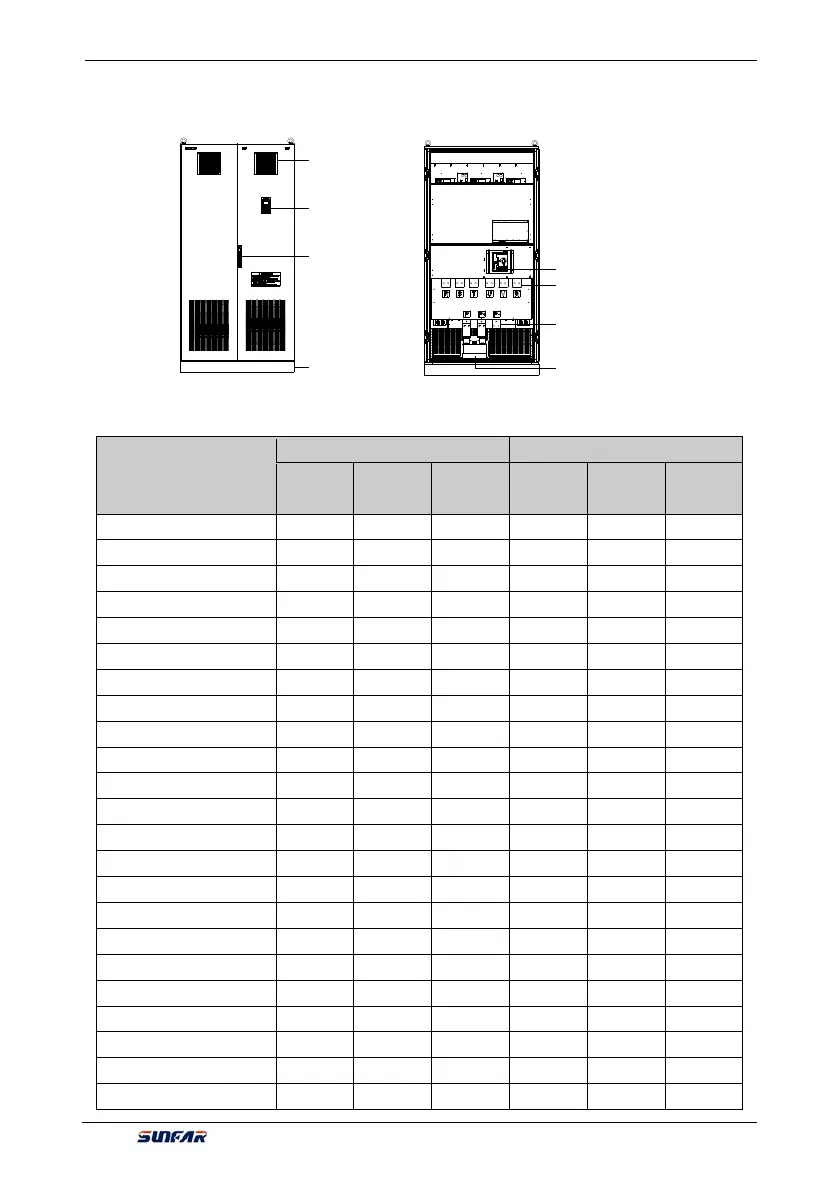

y Appearance Type Ⅵ: Suitable Mode: V560-4T3500G/4T4000P ~ V560-4T6300G/4T7000P
Ventilation
window
Operating
pannel
Lock
Foundation
Control loop Terminal
Major loop terminal
DC Reactor
Major loop terminal
2.3 MODEL TABLE
Model
Universal load mode Steady light load mode
Rated
capacity
(KVA)
Rated
current
(A)
Adaptive
motor
(KW)
Rated
capacity
(KVA)
Rated
current
(A)
Adaptive
motor
(KW)
V560-4T0007G/4T0011P 1.5 2.3 0.75 2.0 3.0 1.1
V560-4T0011G/4T0015P 2.0 3.0 1.1 2.4 3.7 1.5
V560-4T0015G/4T0022P 2.4 3.7 1.5 3.6 5.5 2.2
V560-4T0022G/4T0030P 3.6 5.5 2.2 4.9 7.5 3.0
V560-4T0030G/4T0040P 4.9 7.5 3.0 6.3 9.5 4.0
V560-4T0040G/4T0055P 6.3 9.5 4.0 8.6 13.0 5.5
V560-4T0055G/4T0075P 8.6 13.0 5.5 11.2 17.0 7.5
V560-4T0075G/4T0090P 11.2 17.0 7.5 13.8 21 9.0
V560-4T0090G/4T0110P 13.8 21 9.0 16.5 25 11
V560-4T0110G/4T0150P 16.5 25 11 21.7 33 15
V560-4T0150G/4T0185P 21.7 33 15 25.7 39 18.5
V560-4T0185G/4T0220P 25.7 39 18.5 29.6 45 22
V560-4T0220G/4T0300P 29.6 45 22 39.5 60 30
V560-4T0300G/4T0370P 39.5 60 30 49.4 75 37
V560-4T0370G/4T0450P 49.4 75 37 62.5 95 45
V560-4T0450G/4T0550P 62.5 95 45 75.7 115 55
V560-4T0550G/4T0750P 75.7 115 55 98.7 150 75
V560-4T0750G/4T0900P 98.7 150 75 116 176 90
V560-4T0900G/4T1100P 116 176 90 138 210 110
V560-4T1100G/4T1320P 138 210 110 171 260 132
V560-4T1320G/4T1600P 171 260 132 204 310 160
V560-4T1600G/4T1850P 204 310 160 237 360 185
V560-4T1850G/4T2000P 237 360 185 253 385 200
