5.2.2 OPERATING METHODS OF PANEL
1) Query for status parameters (e.g.)
Auxiliary display ：2.3
Output current
Normal
monitoring mode
Main display： 50.00
Output frequency
Main display： d0.0.04
Function code
Main display： d0.0.00
Monitoring code
Auxiliary display ：50.00
Output frequency
Auxiliary display: 380
Output voltage
Query for status
parameters
Query for
status
parameters
Parameter
modification
mode
Auxiliary display： 0000
Parameter data
Main display: F0.0.01
Function code
Return
the up
one level
Select queried
status parameters
Return
normal
control
Confirm query
for status
parameters
Enter into parameter
modification mode
(refer to the next
section)
Main display: 380
Output voltage
Auxiliary display: 2.3
Output current
Query for
parameters
（Click twice )

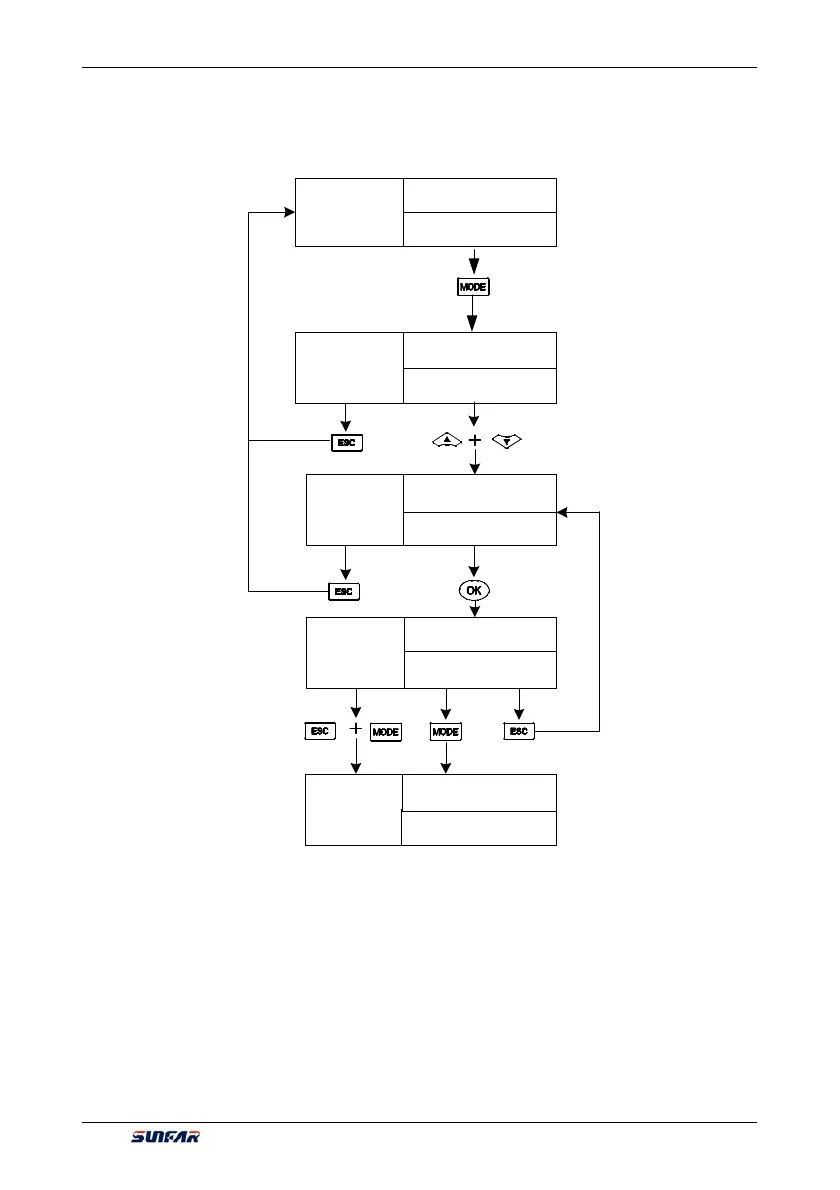

Figure 5-1 Query for status parameters
