12.5 SHIELDED CABLE
In order to meet EMC requirements of CE, it must use shielded cable with shielded
layer. Shielded cable has 3 phase conductive shielded cable and 4 phase conductive
shielded cable. If conductive performance of shielded layer cannot meet requirement, it
would add one separate PE wire or use 4 phase conductive shielded cable with one PE
wire.
In order to restrain shooting and conducting of radio frequency effectively, shielded
layer of shielded cable makes up of coaxial copper intertexture. For increasing shielding
efficiency and conductive performance, intertexture density of shielded layer should be
more than 90%.
12.6 CABLE WIRING REQUIREMENTS
1） Wiring of motor should be far from other cable wirings, and cable of several inverter
motors can be wiring side by side.
2） Wiring of motor cable, input drive cable and control cable would be in different wire
casing. In order to avoid electromagnetic interference of inverter output voltage
with fast changing, it should avoid long distance wiring side by side of motor cable
and other cables.
3） When control cable must cross drive cable, it should ensure the angle of two cables
with 90 degree. Do not cross other cables with inverter.
4） The drive input, output and weak signal cable (e.g. control cable) of inverter should
not wire parallel. With condition available, it is better to wire vertically.
5） Please keep good connection of cable wire casings and fine grounding. Aluminum
wire casing could improve equipotential voltage.
6） Filter, inverter, and motor should be in good connection with system (mechanical
equips) with painting protection of installed parts and sufficient contact with
conductive metal.

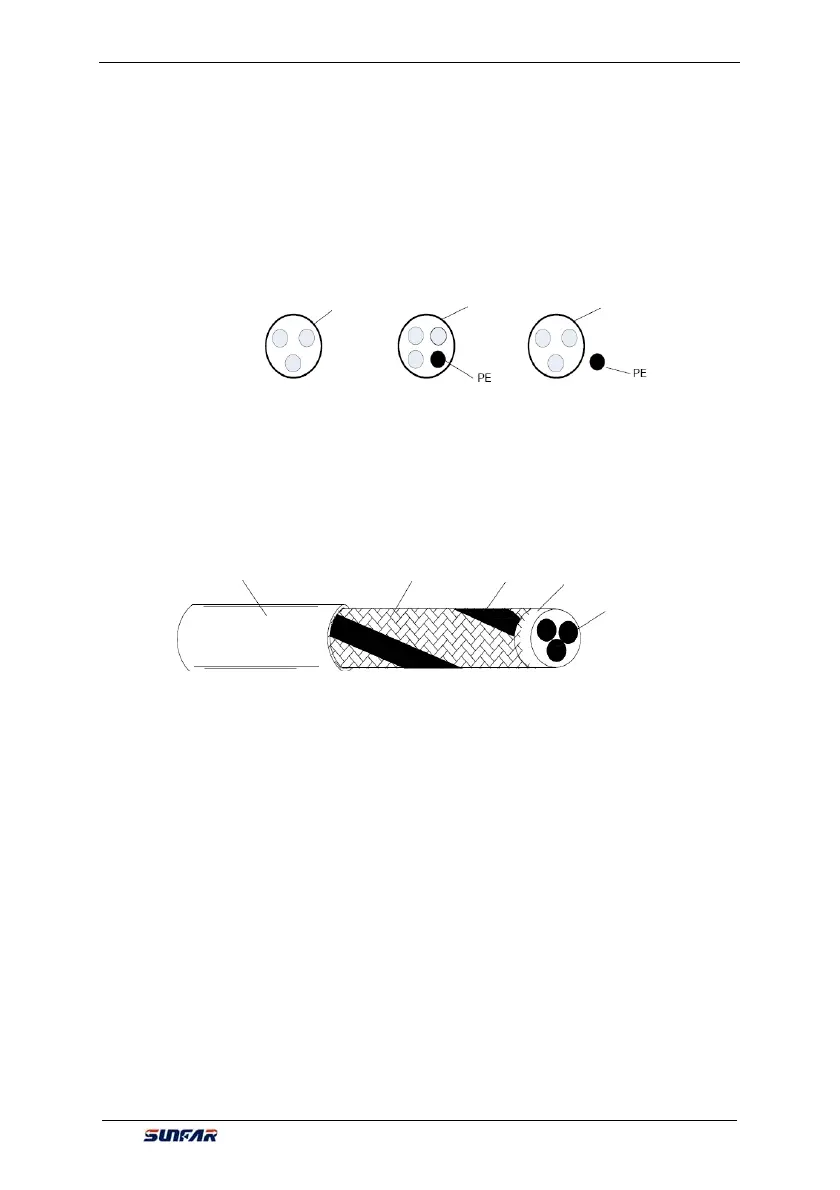

PE wire and
shielded
layer
Shielded layer
Shielded layer
Insulated Skin
Copper Shielded Layer
Copper Intertexture
Inner Insulation e
Cable Core
