Installation Of Frequency Inverter
V560 Series High Performance Closed-Loop Vector Inverter User Manual
13

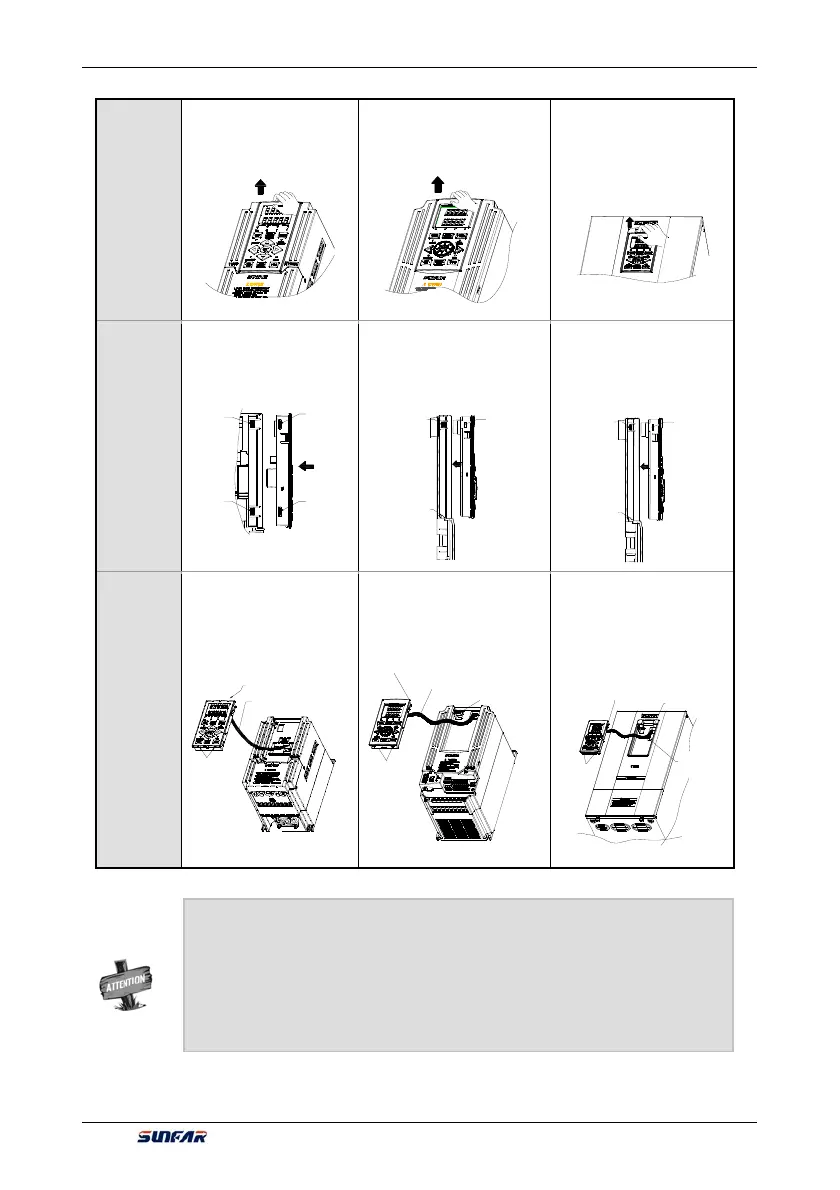

disassembly
Put middle finger in the
finger hole site front of the
operation panel, slightly lift
the panel up.
Put middle finger in the finger
hole site front of the operation
panel, slightly lift the panel up.
Put middle finger in the
finger hole site front of the
operation panel, slightly lift
the panel up.
installation
After the alignment of panel
and its slot position, push
the panel down evenly.
Card slot
Card slot
Card
clasp
Card
clasp
Joint the fixed mouth of hook
at the bottom of operation
panel and spring plate under
panel base, then only push
the panel inward.
Joint the fixed mouth of
hook at the bottom of
operation panel and spring
plate underpanel base, then
only push the panel inward.
Extend
external
connection
Disassemble the operation
panel and make the
extension cord as follows.
Connecting wire
External card clasp
External
card clasp
Disassemble the operation
panel, take crystal joint and
put it in the designated
position in case of the lost.
The extension cord as follow.
External card clasp
connecting wire
crystal subtenancy
External
card clasp
Disassemble the operation
panel, take crystal joint and
put it in the designated
position in case of the lost.
The extension cord as
follow.
External card clasp
connecting wire
crystal
subtenancy
External
card clasp
Card slot
Card clasp
Card clasp
Card
clasp
Card slot
Card
clasp
¾ It shall employ extension cable or LAN cable available (straight cable) in the market.
¾ Extension cable shall not exceed 15 meters; Shielding layer is connected with ground
terminal of frequency inverter. Please select fittings of remote operation panel for more
than 15 meters.
¾ Do not carry out wiring horizontally close to power line.
¾ Panel shall be fastened on stable fixed surface or work bench so as to avoid damage.
