Description Of Specific Functions
V560 Series High Performance Closed-Loop Vector Inverter User Manual
1
8
2
7.37 PARAMETER SELECTION OF COMPENSATION PID
CONTROLLER (GROUP F9.1)
There are 4 groups of compensation PID controller parameters, and their switching means are shown in
Figure 7-67 ([9.1.21=0023]):
Time
Time
Selection of controller
parameters
PID group 2 effective
Lower limit for group 1, 2
parameter switching
PID group 1 effective
Upper limit for group
1, 2 parameter switching
PID group 4 effective
PID group 3 effective
Upper limit for group
2, 3 parameter switching
Upper limit for group
3, 4 parameter switching
Lower limit for group
2, 3 parameter switching
Lower limit for group
3, 4 parameter switching
[F9.1.23]
[F9.1.25]
[F9.1.27]
[F9.1.28]
[F9.1.26]
[F9.1.24]
[F9.0.03]~[F9.0.07]
[F9.1.29]~[F9.1.33]
[F9.1.34]~[F9.1.38]
[F9.1.39]~[F9.1.43]

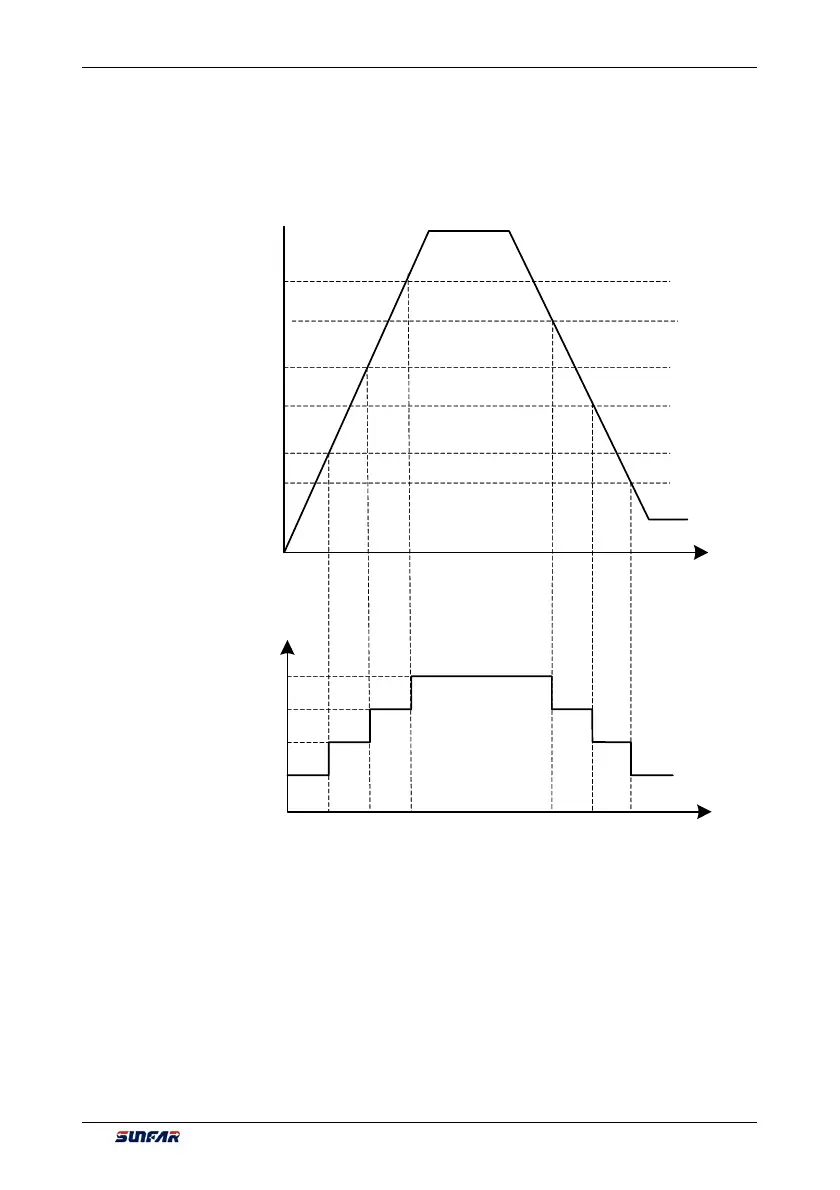

Figure 7-67 Sketch of compensation PID parameter switching
