Svantek SVAN 958A - C.5. MISCELLANEOUS SPECIFICATION OF SVAN 958 A

224
SVAN 958A User Manual
C.5. MISCELLANEOUS SPECIFICATION OF SVAN 958A
Display
Super contrast (10000:1) OLED 2.4” colour display (320 x 240 pixels).
Memory
32 MB flash memory and 96 kB of the RAM memory.
Flash memory divided between:
• buffer for the registration of the time history and spectra (ca. 50 % of the installed memory)
• FLASH-disk for storing the measurement data files (ca. 40 % of the installed memory)
Signal input
Channel 1,2,3:
The input of the measured signal (taken from the vibration transducer):

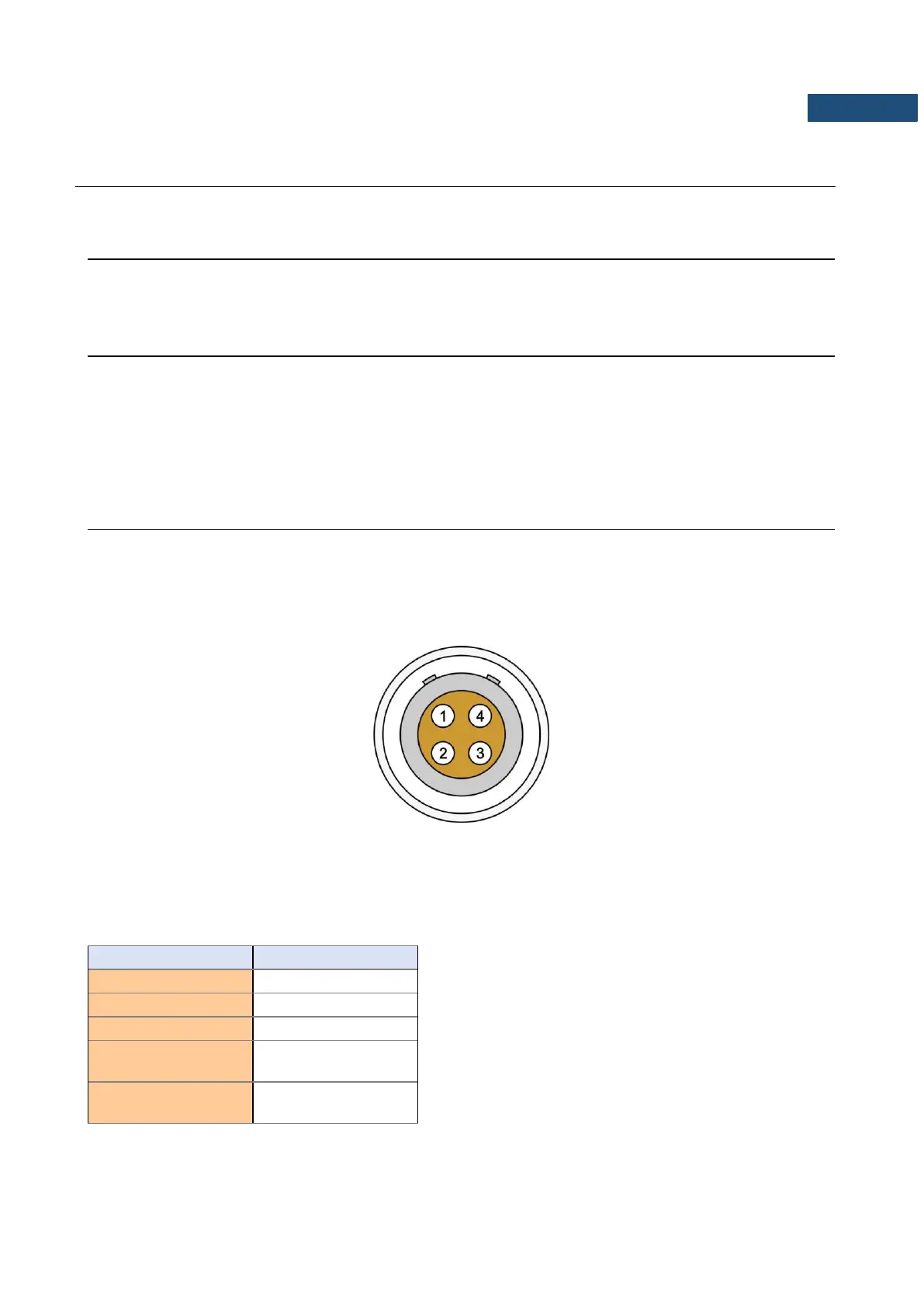

LEMO type ENB.OB.304 compatible socket (external view)
Table C.8.1. Pin-out of the TNC connector
Pin number
ENB.OB.304
1
Input for channel 1
2
Input for channel 2
3
Input for channel 3
4
Signal ground for
channels 1 - 3
Shield
Ground connected to
pin number 4
