7.17 SETTING USER FILTER COEFFICIENTS FOR 1/1 OCTAVE AND 1/3 OCTAVE ANALYSIS –
USER FILTERS

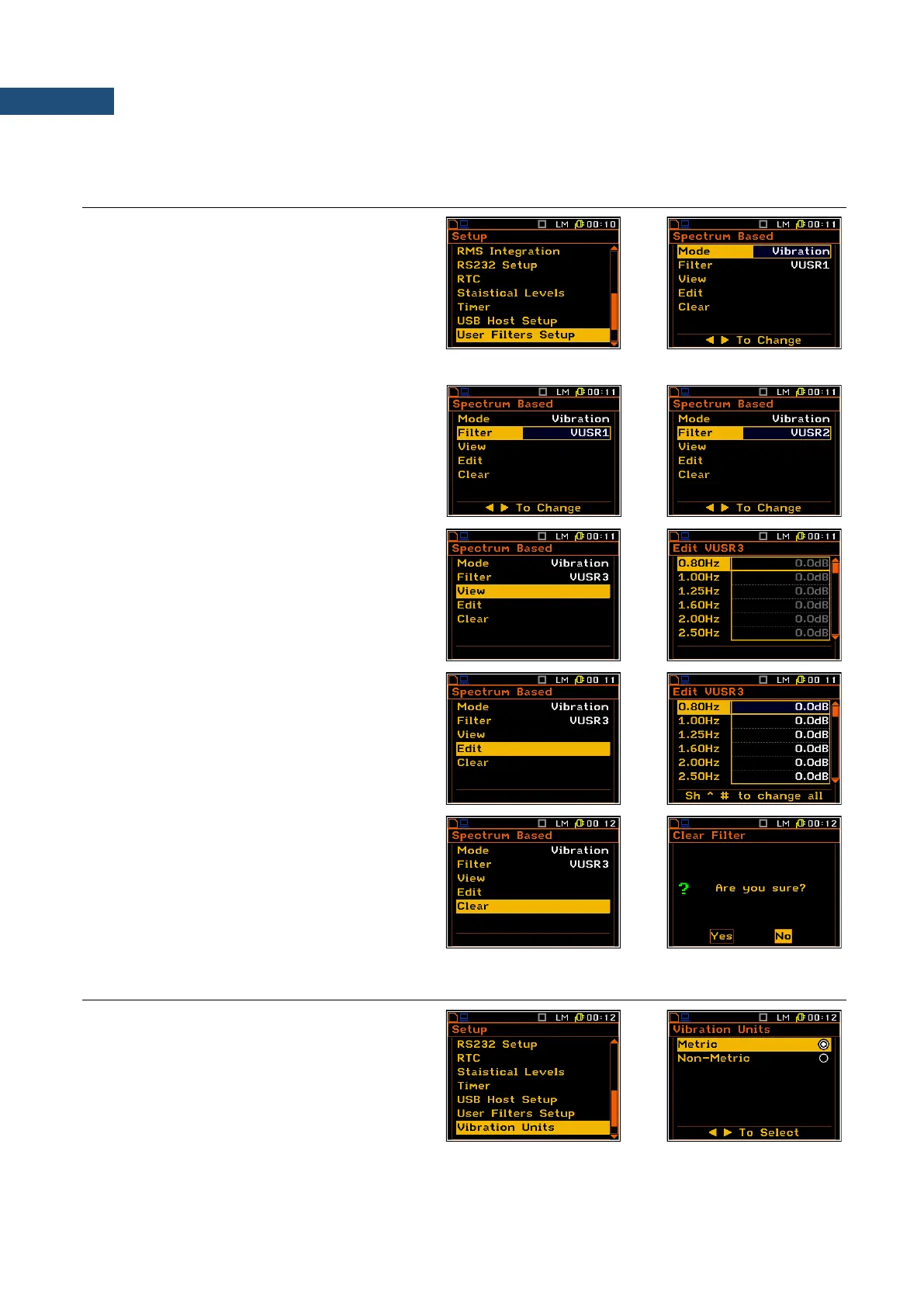

The User Filters sub-list enables the user to
introduce the values of the coefficients of the
user defined frequency filters. This position is
active only in 1/1 Octave and 1/3 Octave
modes. This sub-list is described in Chapter
10.
In the Mode position it is possible to select
signal type: Vibration or Sound.
<ENT>
In the Filter, there are VUSR1, VUSR2,
VUSR3 in the case of vibration measurements
and SUSR1, SUSR2, SUSR3 in the case of
sound measurements.
►
The View position opens the window with the
table of filter coefficients.
<ENT>
The Edit position opens the window with the
table of filter coefficients. All positions in this
table can be edited by the user.
<ENT>
The Clear position opens the window with a
warning before deleting the user filter
coefficients. In case of a positive answer, all
coefficients of the selected filter will be zeroed.
<ENT>
7.18 SELECTION OF THE VIBRATION UNITS – VIBRATION UNITS
The Vibration Units sub-list enables the user
to select the units for the Vibration
measurements.
It is possible to select the Non-Metric units
(e.g. g, ips, mil etc.) or Metric units (e.g. m/s
2
,
m/s, m etc.).
<ENT>
