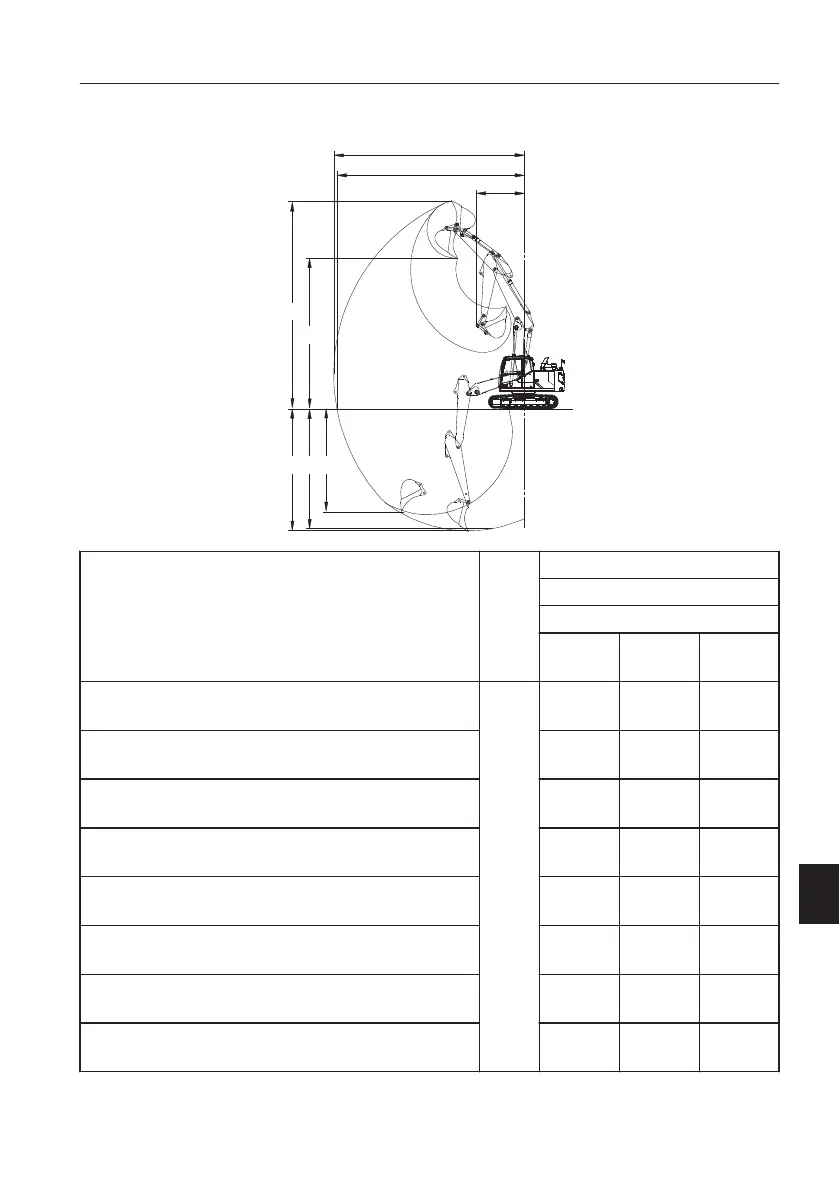

EC140E LM with variable adjustable boom
G
F
E
D
HC
B
A
V1149077
Description Unit
Variable adjustable boom
4.6 m (15' 1")
Dipper arm
2.1 m
(6' 11")
2.5 m
(8' 2")
3.0 m
(9' 10")
A. Maximum digging reach
mm
ft in
8080
26' 6"
8460
27' 9"
8960
29' 5"
B. Maximum digging reach on ground
7890
25' 11"
8290
27' 2"
8790
28' 10"
C. Maximum digging depth
4890
16' 1"
5280
17' 4"
5790
19' 0"
D. Maximum cutting height
9470
31' 1"
9830
32' 3"
10300
33' 10"
E. Maximum dumping height
6930
22' 9"
7290
23' 11"
7770
25' 6"
F. Maximum vertical wall digging depth
3780
12' 5"
4140
13' 7"
4630
15' 2"
G. Minimum front swing radius
1740
5' 9"
1990
6' 6"
2410
7' 11"
H. Maximum digging depth
(level the ground of 2.44 m (8'))
4760
15' 7"
5170
17' 0"
5680
18' 8"
- Machine with direct fit bucket
