Volvo EC140E - Page 394

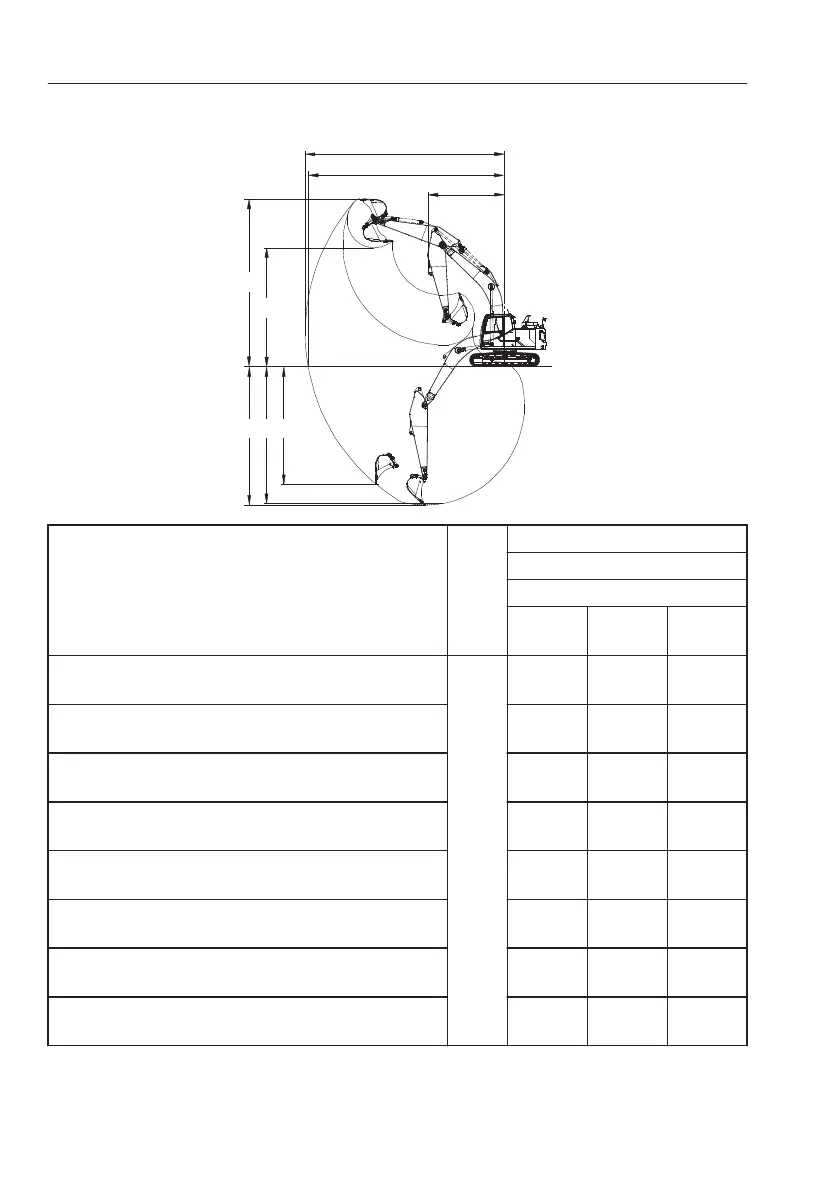

EC140E LM with mono-boom
V1149076
G
E
D
H FC
B
A
Description Unit
Boom
4.6 m (15' 1")
Dipper arm
2.1 m
(6' 11")
2.5 m
(8' 2")
3.0 m
(9' 10")
A. Maximum digging reach
mm
ft in
7980
26' 2"
8360
27' 5"
8850
29' 0"
B. Maximum digging reach on ground
7800
25' 7"
8180
26' 10"
8680
28' 6"
C. Maximum digging depth
4960
16' 3"
5360
17' 7"
5860
19' 3"
D. Maximum cutting height
8320
27' 4"
8550
28' 1"
8910
29' 3"
E. Maximum dumping height
5910
19' 5"
6150
20' 2"
6490
21' 4"
F. Maximum vertical wall digging depth
3770
12' 4"
4140
13' 7"
4670
15' 4"
G. Minimum front swing radius
2570
8' 5"
2630
8' 8"
2740
9' 0"
H. Maximum digging depth
(level the ground of 2.44 m (8'))
4710
15' 5"
5140
16' 10"
5680
18' 8"
- Machine with direct fit bucket
392
Specifications
Working ranges
