Maintenance8752−1/A1
Winterthur Gas & Diesel Ltd.
4/ 11
2. Removal
CAUTION
Damage Hazard: Make sure
that you do not damage
the sealing faces or the HP
fuel pipes.
1) Remove the clamps (1, Fig. 1).
2) Remove the four screws (1, Fig. 5)
from the flange (2).
3) Carefully move the flange (2) away
from the intermediate piece (3).
4) Remove the four screws (2, Fig. 6)
from the flange (3).
5) Carefully move the flange (3) away
from the valve housing (4).
CAUTION
Injury Hazard: The weight
of the HP fuel pipe is
approximately 43 kg. Use
approved equipment or
sufficient personnel to lift
and move the HP fuel pipe.
6) Carefully remove the HP fuel pipe (1).
7) Apply protection to the sealing
faces (SF) to prevent damage and
contamination.
2015

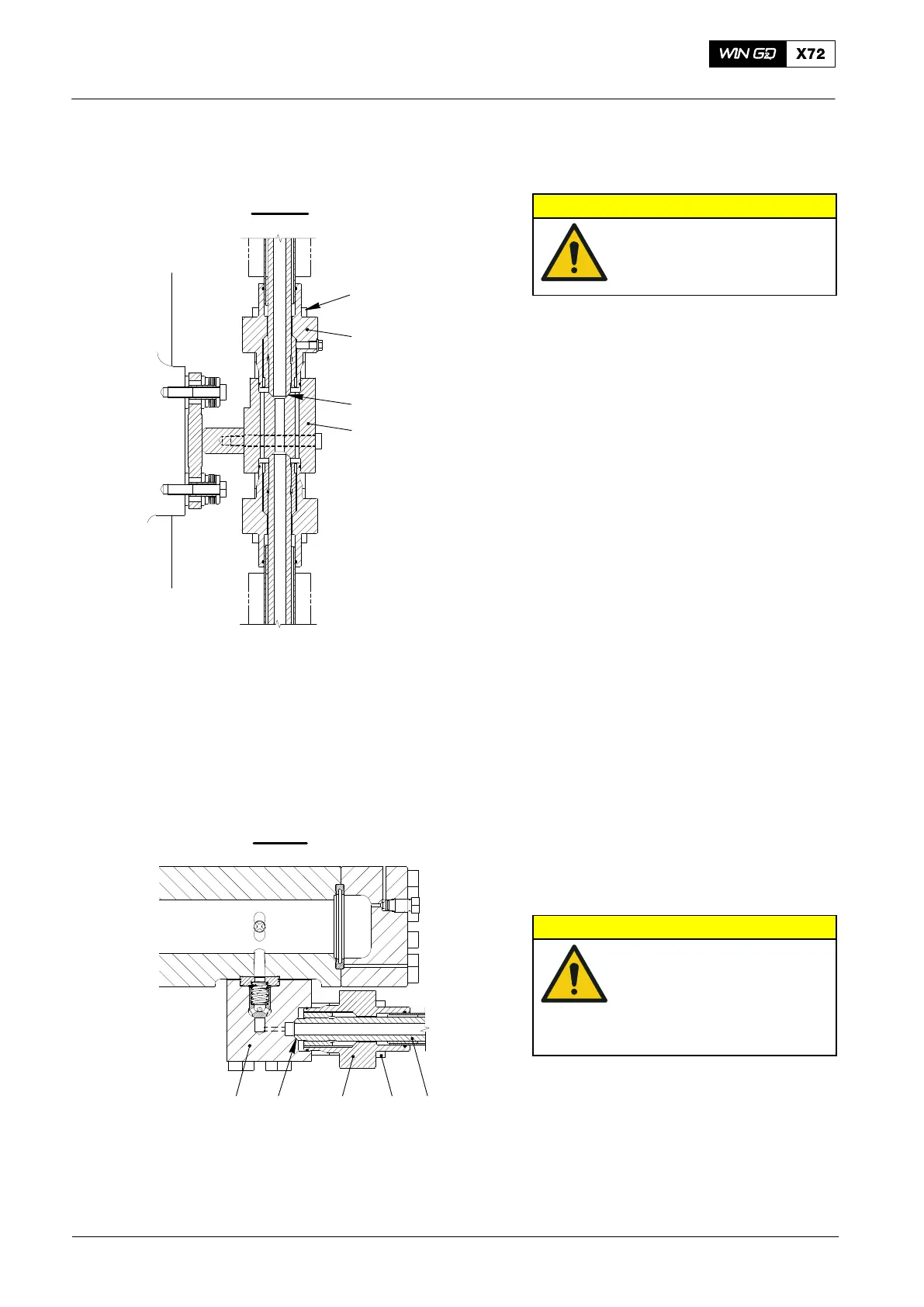

HP Fuel Pipe: Removal, Grind the Sealing Faces and Installation
Fig. 5
II - II
1
3
2
SF
WCH02293
Fig. 6
I - I
4 321SF
WCH02293
