Maintenance
8752−1/A1
Winterthur Gas & Diesel Ltd.
5/ 11
8) Remove the four screws (3, Fig 7) from
the flange (2).
9) Carefully move the flange (2) away
from the intermediate piece (1).
10) Remove the four screws (3, Fig 8) from
the flange (2).
11) Carefully move the flange (2) away
from the intermediate piece (1).
CAUTION
Injury Hazard: The weight
of the HP fuel pipe is
approximately 32 kg. Use
approved equipment or
sufficient personnel to lift
and move the HP fuel pipe.
12) Carefully remove the HP fuel pipe (4).
13) Apply protection to the sealing
faces (SF) to prevent damage and
contamination.
14) Remove the four screws (2, Fig. 9)
from the flange (4).
15) Carefully move the flange (4) away
from the fuel pump cover (3).
2015

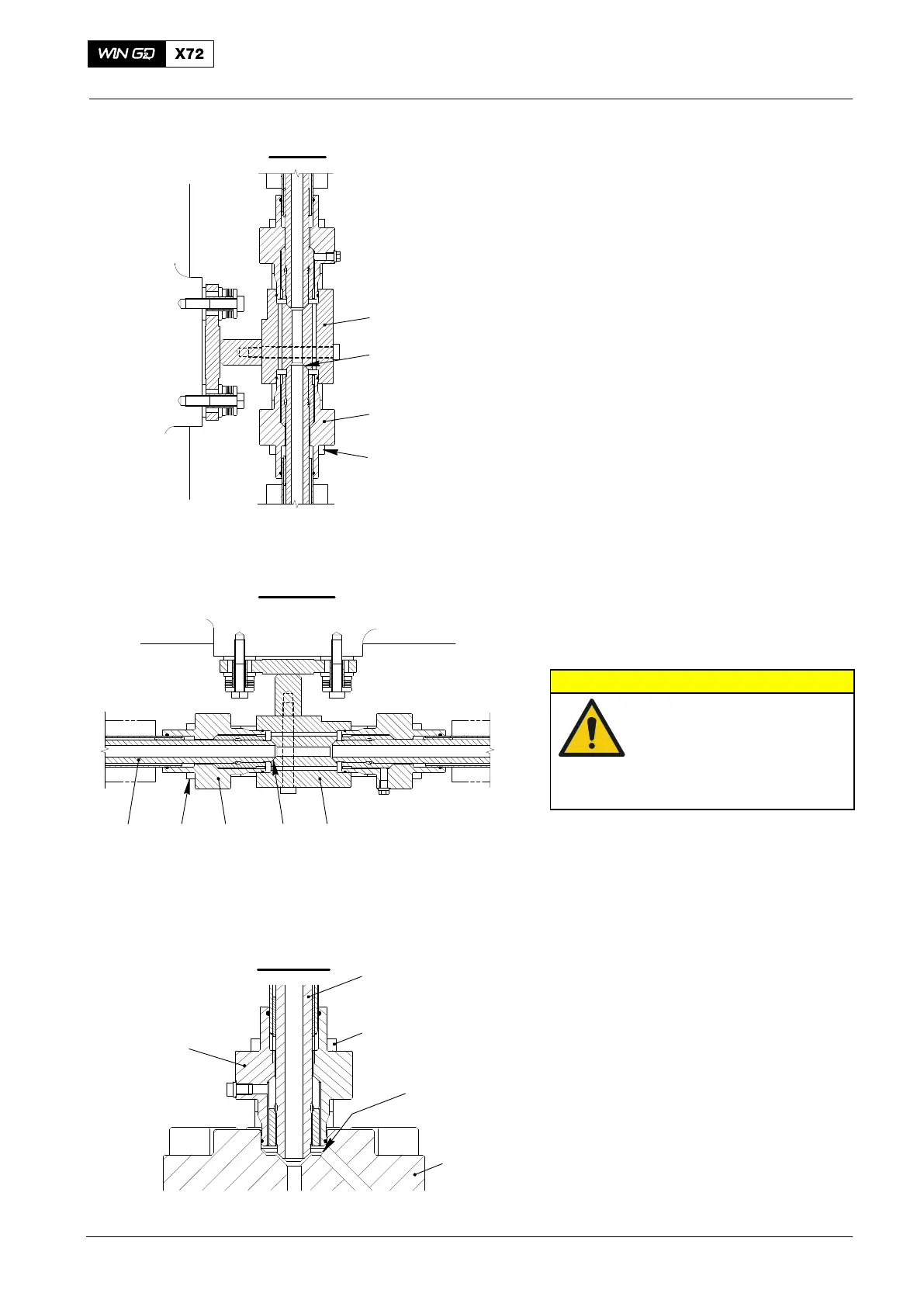

HP Fuel Pipe: Removal, Grind the Sealing Faces and Installation
Fig. 7
II - II
3
2
1
SF
WCH02293
Fig. 8
III - III
32 1SF
4
WCH02293
2
1
4
Fig. 9
IV - IV
3
SF
WCH02293
