Maintenance87521/A1
Winterthur Gas & Diesel Ltd.
6/ 11
16) Remove the four screws (2, Fig. 10)
from the flange (3).
17) Carefully move the flange (3) away
from the intermediate piece (4).
CAUTION
Injury Hazard: The weight
of the HP fuel pipe is
approximately 32 kg. Use
approved equipment or
sufficient personnel to lift
and move the HP fuel pipe.
18) Carefully remove the HP fuel pipe (1).
19) Do a check of the sealing faces (SF). If
you find damage, do the procedure in
paragraph 3.
20) Apply protection to the sealing
faces (SF) to prevent damage and
contamination.
2015

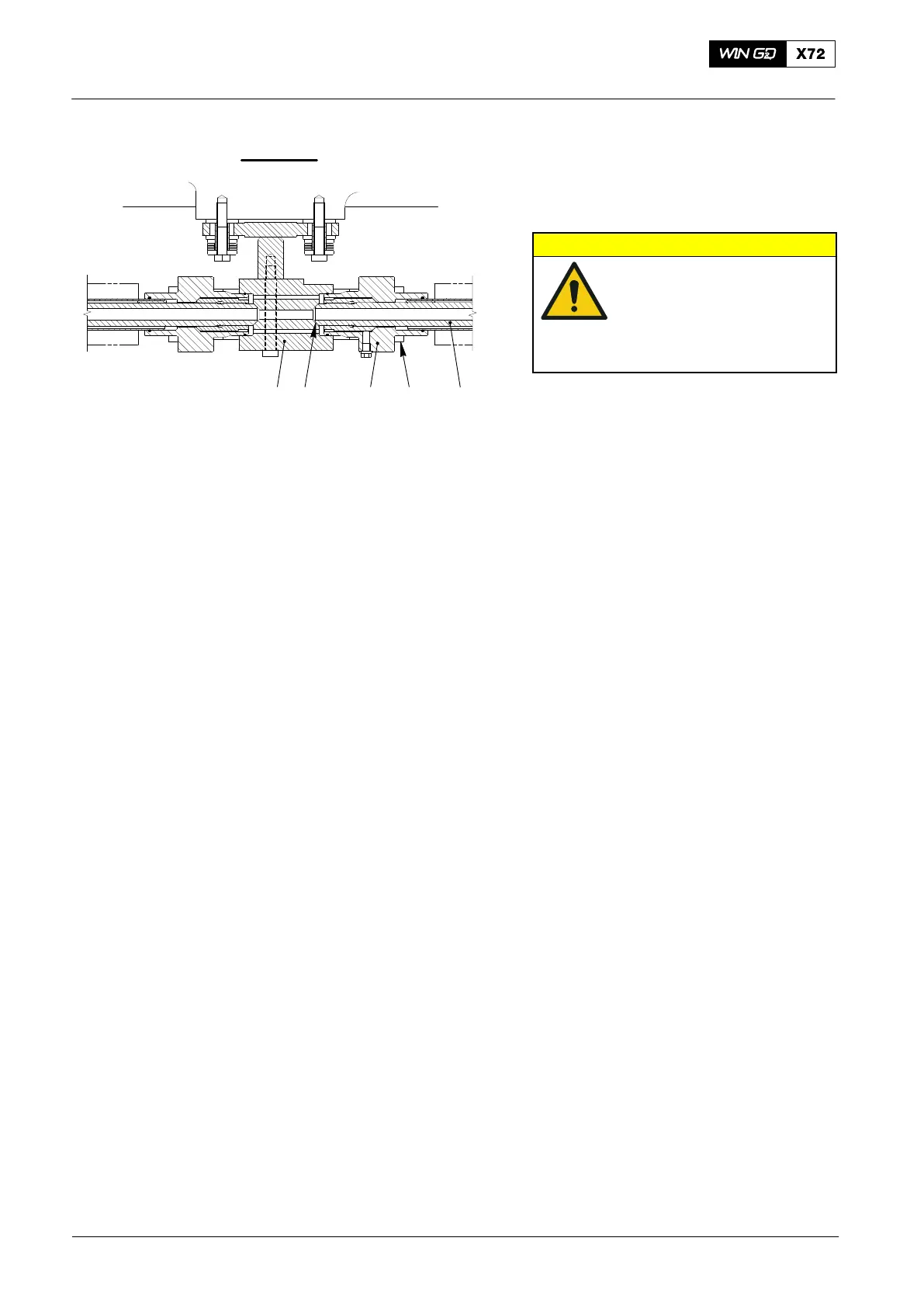

HP Fuel Pipe: Removal, Grind the Sealing Faces and Installation
Fig. 10
III - III
234 SF
1
WCH02293
