Xerox Phaser 3600

7-68 Phaser 3600 Printer Service Manual
Service Parts Disassembly

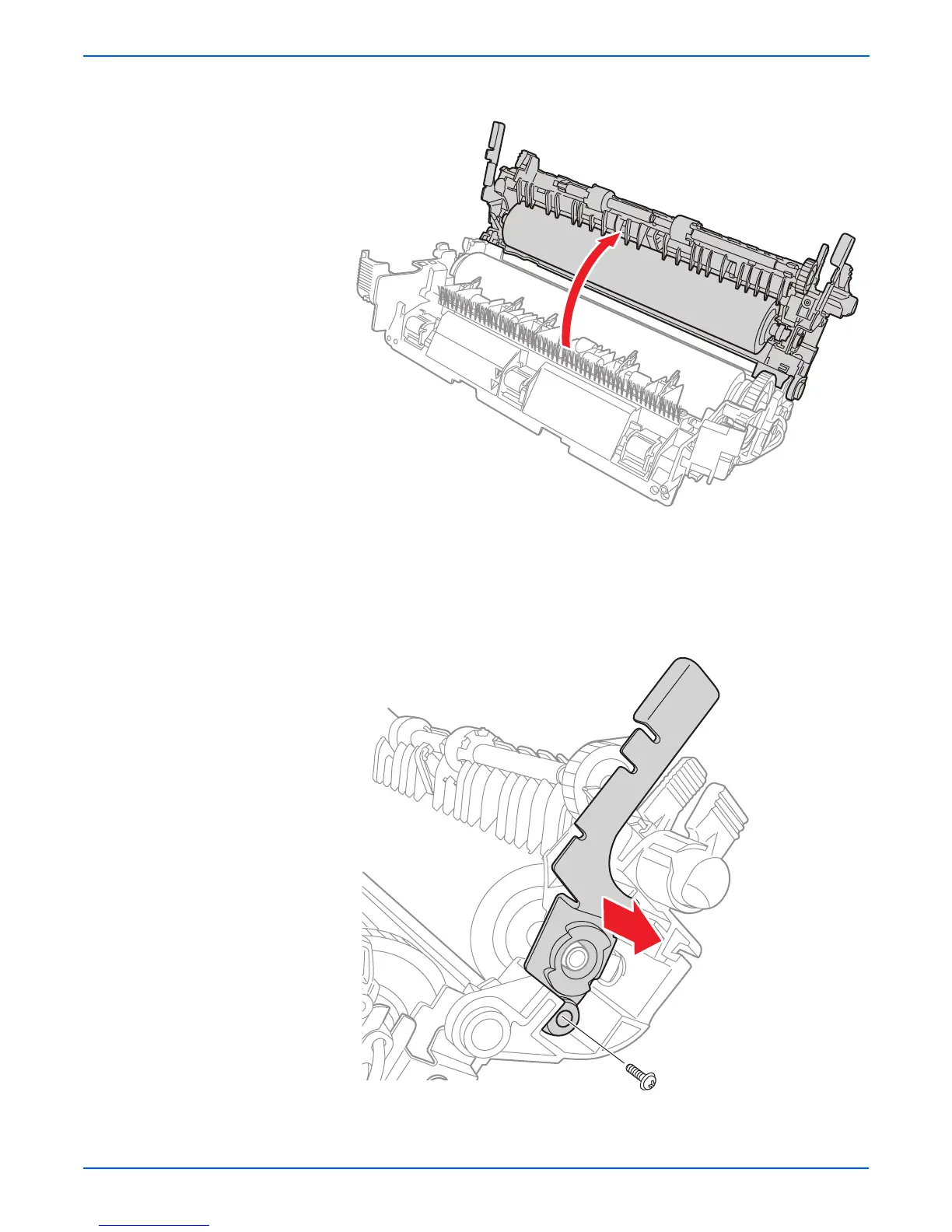

3. Unfold the Fuser Assembly to expose the Heat Roller and the Pressure
Roller.
4. Facing the Fuser Connector, disconnect the single wire connector from
the right tab of the Thermistor.
5. Remove two screws (8mm) securing the Fuser connector to the Fuser
Assembly.
6. Remove one screw from each end of the Pressure Roller.
s3600-124
s3600-128
