Xerox Phaser 3600

Phaser 3600 Printer Service Manual 7-69
Service Parts Disassembly

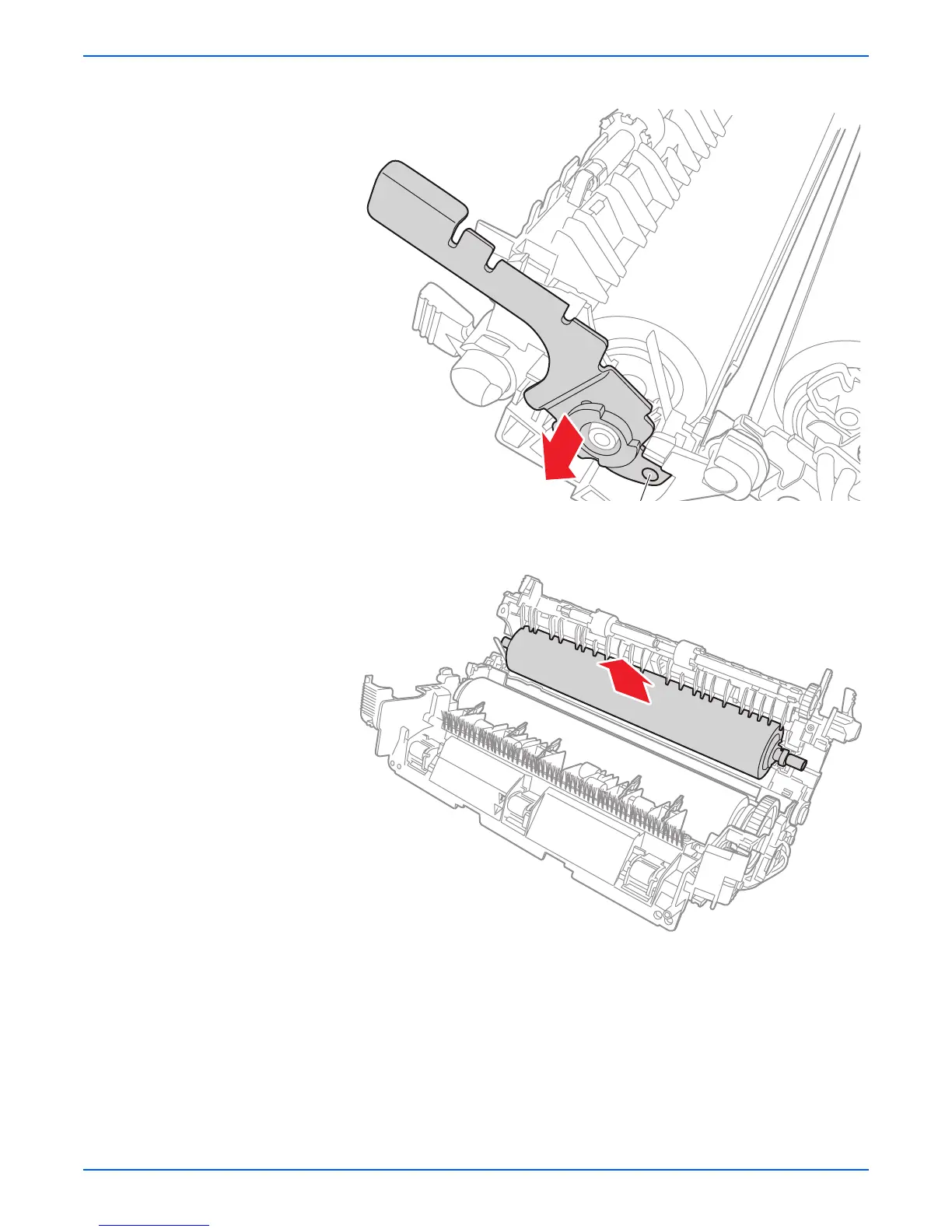

7. Slide the retaining plate and bushing off of each end of the Pressure
Roller.
8. Lift the Pressure Roller free from the assembly.
Replacement Note
Slide the retaining plates with bushings onto the Roller and seat into
the plastic retainers before securing the two end screws.
s3600-130
