Xerox Phaser 3600 Service Manual

Phaser 3600 Printer Service Manual 5-5
Print-Quality Troubleshooting
Fusing
Rub the image three times at the indicated points with a soft cloth or tissue.
The toner should not lift off of the surface of the print. If the image smears or
toner lifts off the image onto the cloth, see “Unfused Image” on page 5-24.
Resolution

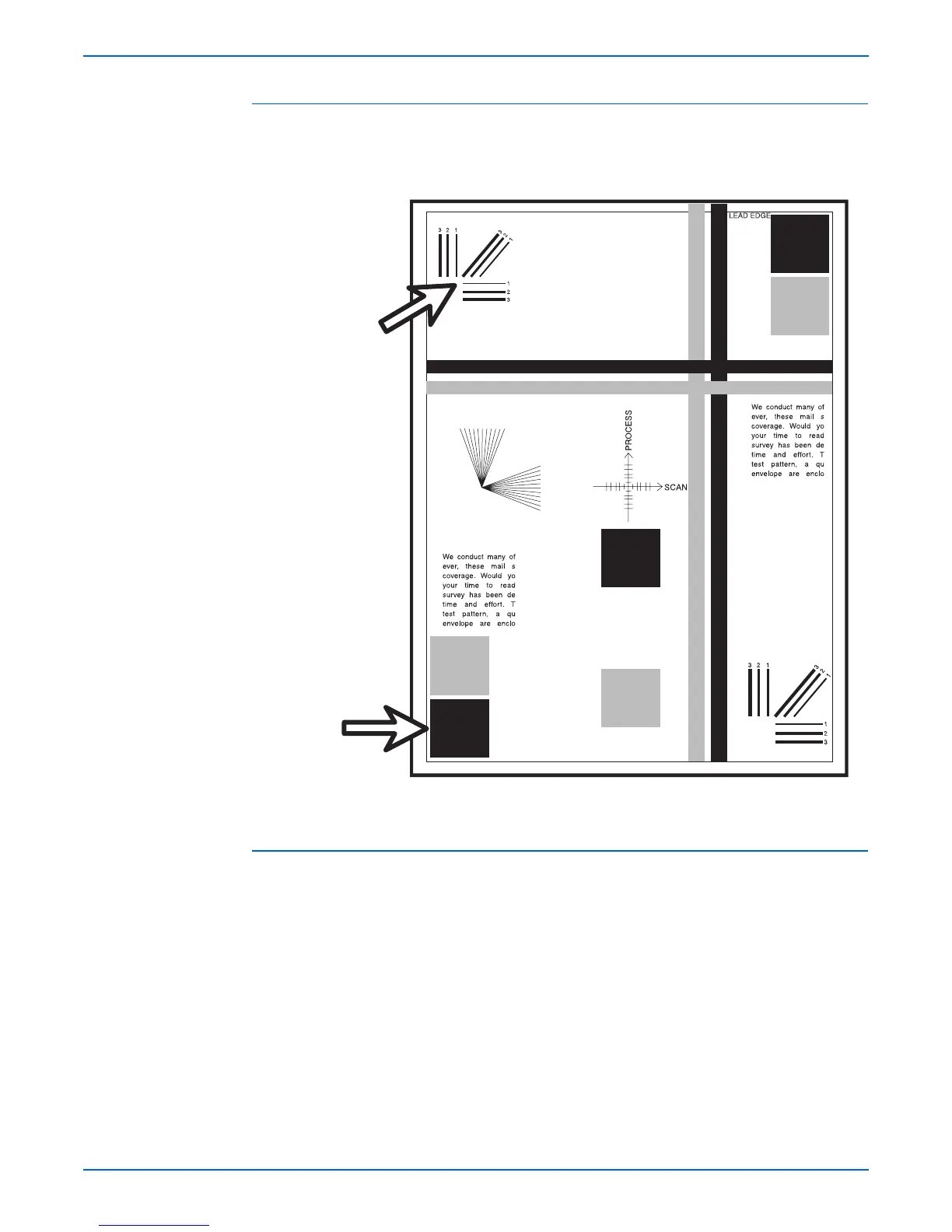

Observe the three resolution check points on several test prints.
■ Ensure that the 2 pixel horizontal, vertical, and diagonal lines are clear
and continuous. The diagonal lines might appear to be narrower than the
others.
■ Characters in the text paragraphs should be uniform and equal in density.
■ The halftone patches should be uniform in appearance.
If the image does not meet the criteria, see “Light or Undertone Print” on
page 5-11 or “Background Contamination” on page 5-15.
