Print-Quality Troubleshooting
Registration and Skew

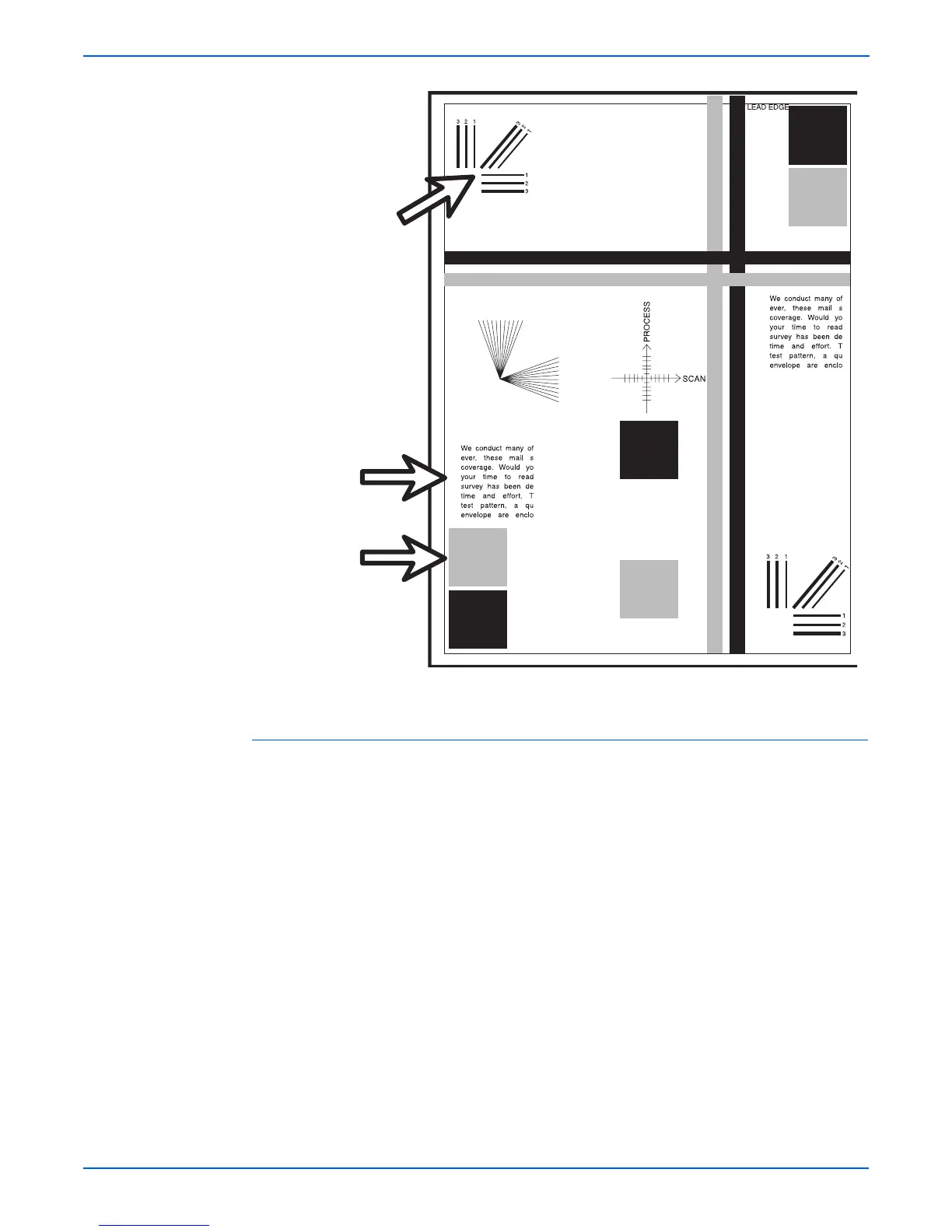

Fold the paper from two consecutive test prints in half (first side edge to side
edge and then top edge to bottom edge). Observe the fold lines with reference
to the crosshairs of the printed target. The fold line should be aligned
perpendicular to the target crosshairs and should be within ±2.0 mm of the
target crosshairs (each line on the target is 1.0 mm). If the image does not
meet the criteria, see “Skew” on page 5-25.
1
2
3
