Xerox Phaser 6120

Disassembly/Assembly Procedures
Phaser® 6120 Color Laser Printer Service Manual
5-22

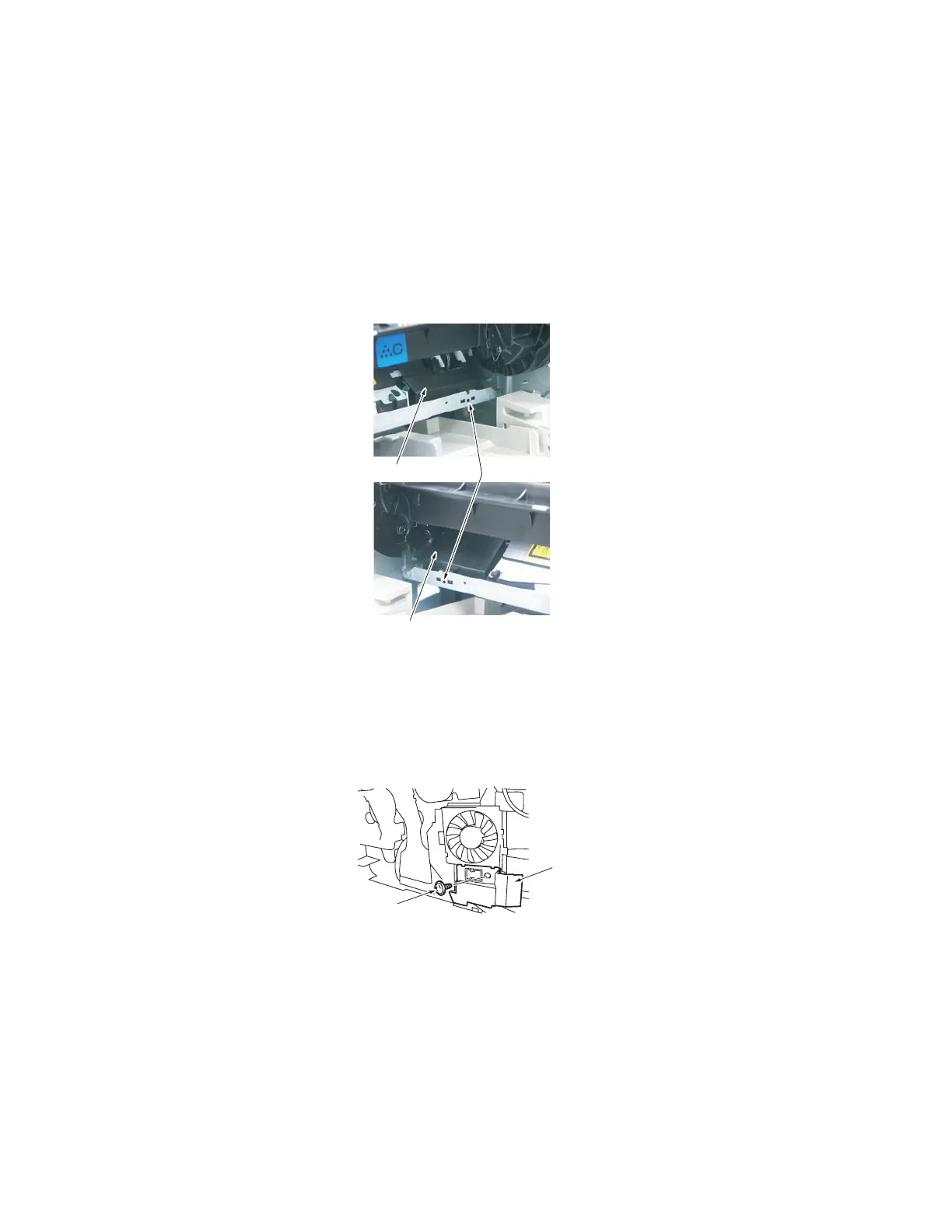

12. Remove the Laser (PH) Unit Covers (Right) [9], (Left) [10].
a. Disconnect the blue connector from the switch (S5).
b. Push the tabs of the Laser (PH) Unit Cover [11] and remove the Laser (PH) Unit
Cover.
Caution: Use care not to pull the laser unit with an excessive force, so you do not damage
the wiring harnesses.
13. Remove the screw [8], remove the Power Supply cooling Fan Motor Cover [9], and the
cooling fan housing in order to gain access to the harnesses.
14. Remove the 3 harnesses from the saddle, and then feed the 3 harnesses that you unplugged
from the controller board underneath the black fan duct.
[11]
[9]
[10]
4139fs2036c1
[9]
[8]
4139fs2073c1
