Xerox Phaser 6120 Service Manual

Print Engine Theory of Operation
Phaser® 6120 Color Laser Printer Service Manual
7-39
■ To prevent false detection, the Imaging Unit is provided with the Toner Agitating Screw
that ensures that the waste toner is evenly stored.
.
Waste Toner Near Full Condition Detection Control
■ Light emitted from the LED mounted on the Waste Toner Near Full Detection Board
(PWB-C) is made to travel through the light guide. This light is blocked if the waste toner
reaches an upper limit, which allows the machine to determine that there is a waste toner
near full condition.
■ To prevent false detection, the Imaging Unit is provided with the Toner Agitating Screw
that ensures that the waste toner is evenly stored.
Waste Toner Full Detection Control
■ The machine determines that there is a waste toner full condition when 200 images* are
reached after a waste toner near full condition has been detected. (* The initiation of any
new print cycle is prohibited when 50 full-color printed pages are produced after the waste
toner near full condition has been detected.)
■ When light of the LED on the Waste Toner Near Full Detection Board (PWB-C) is
unblocked after the Imaging Unit has been replaced, the waste toner full condition is reset.

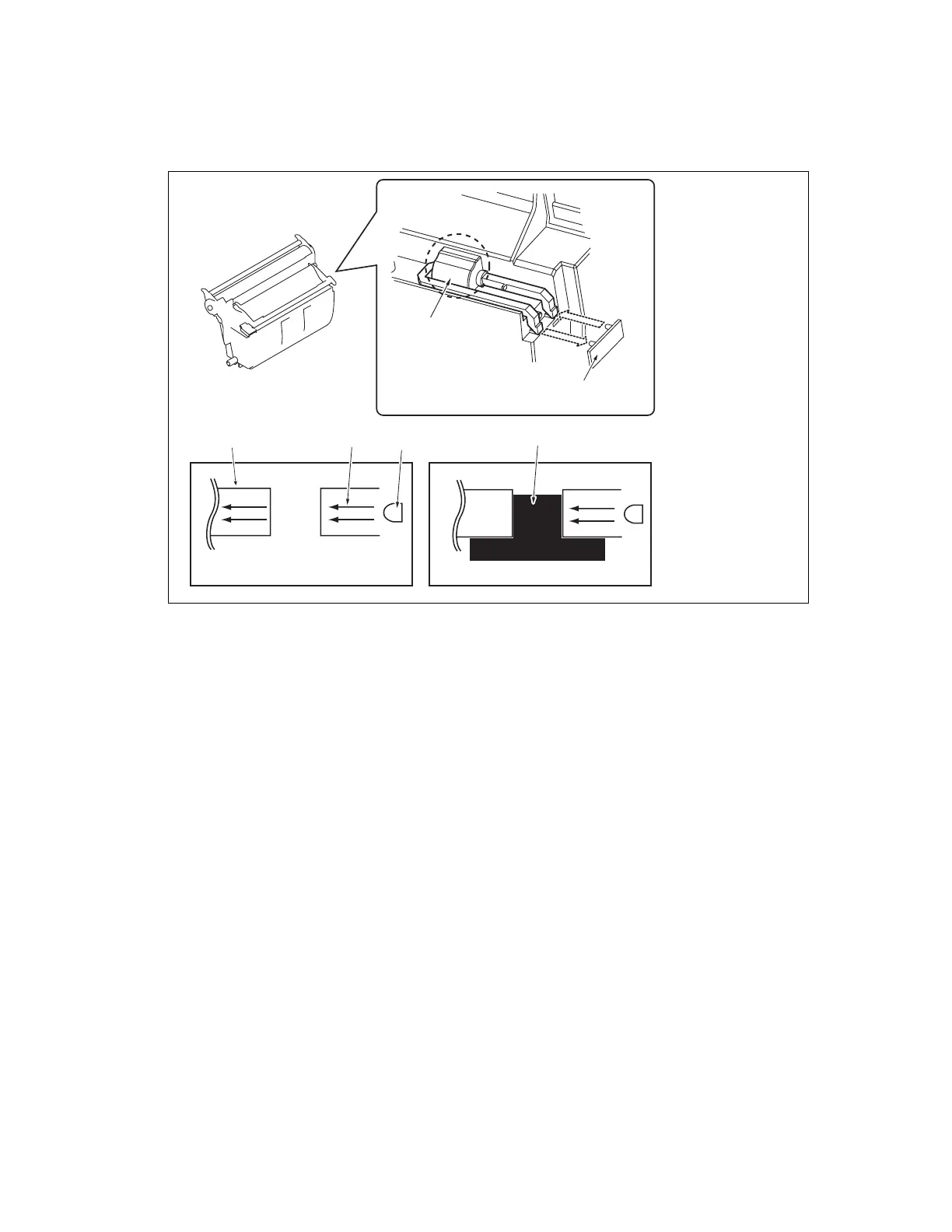

Waste Toner Near Full
Detection Board (PWB-C)
Light Guide
Waste Toner Detection Area
4139to2086e0
Normal Condition
LED
Waste TonerLED LightLight Guide
At Waste Toner Near Full Condition
4139to2087e0

Xerox Phaser 6120 Specifications

General

Color	Yes
Print technology	Laser
Time to first page (black, normal)	13 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	128 MB
Processor model	300 MHz, 32 bit RISC
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
I/O ports	USB
Power requirements	200 – 240 VAC / 100 – 127 VAC 50/60 Hz
Networking features	Ethernet/Fast-Ethernet
Non-operating relative humidity (non-condensing)	10 - 85 %
Total input capacity	200 sheets
Maximum input capacity	500 sheets
Printer fonts	PostScript
Maximum duty cycle	35000 pages per month
Number of PostScript fonts	139
Power consumption (printing)	380 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	442 x 395 x 341 mm
