Xerox Phaser 6120

Service Parts Disassembly
Phaser® 6120 Color Laser Printer Service Manual
9-6
Reinstall Procedure

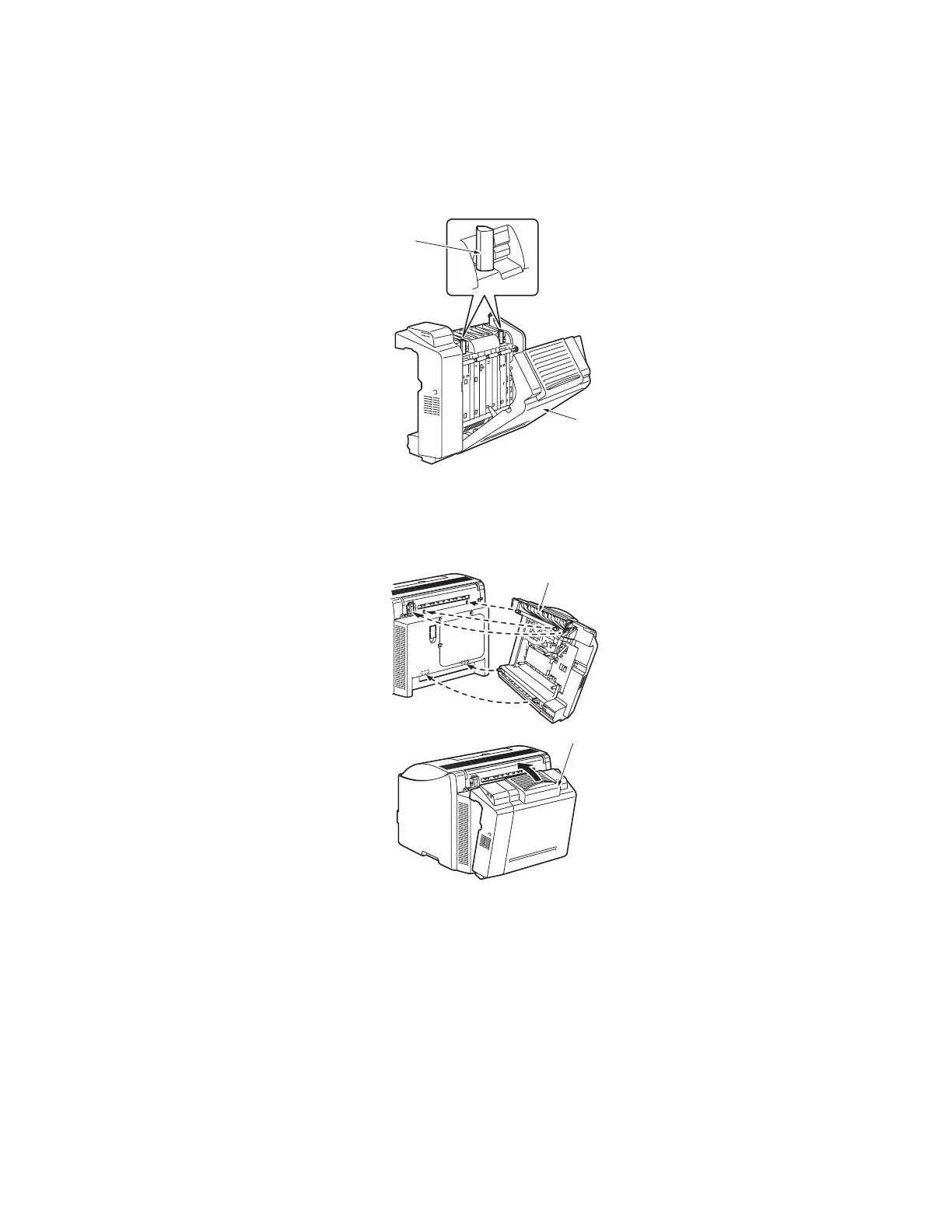

1. Open the Duplex Unit Door [1] and turn the two locking knobs [2] to unlock the Duplex
Unit.
2. Mount the Duplex Unit [3] onto the printer main body.
[2]
[1]
4057fs2504c0
[3]
[3]
4057fs2505c0
