Xerox Phaser 6120 Service Manual

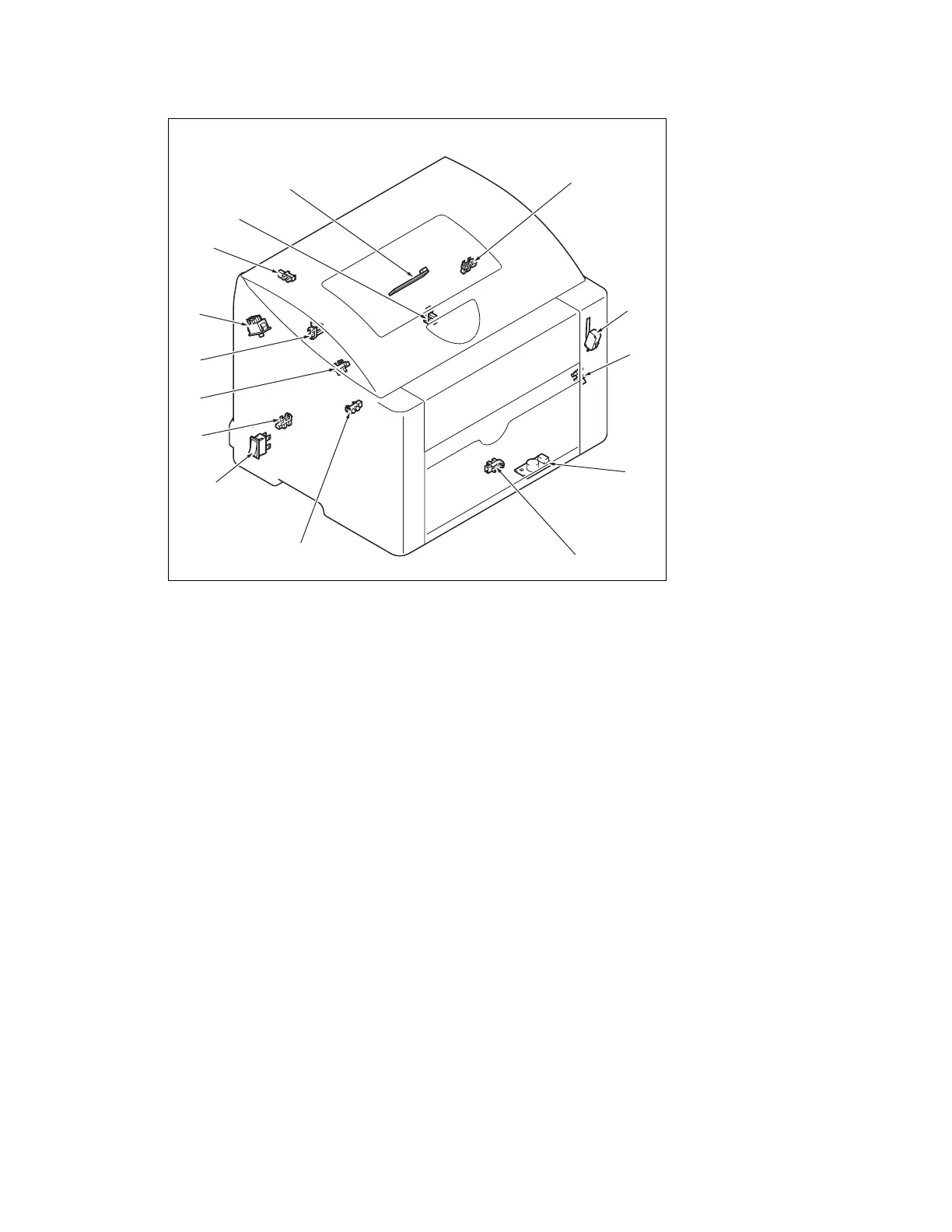

Parts Layout Drawing
Phaser® 6120 Color Laser Printer Service Manual
A-3
[1] Retraction Position Sensor /Cleaning Blade
(PC6)
[8] Fusing Paper Loop Sensor (PC8)
[2] Safety Switch (S2) [9] Registration Sensor (PC1)
[3] Rack Positioning Sensor (PC3) [10] Belt Positioning Sensor (PC4)
[4] Temperature/ humidity Sensor (HS1) [11] Fusing Safety switch (S3)
[5] Tray1 Paper Empty Sensor (PC9) [12] Exit Sensor (PC7)
[6] OHP Sensor (PC2A) [13] Retraction Position Sensor /2nd Image
Transfer (PC5)
[7] Power Switch (S1) [14] Density (AIDC) Sensor
4139fs5503c0
[1]
[13]
[2]
[3]
[4]
[14]
[12]
[11]
[10]
[9]
[8]
[7]
[5]
[6]

Xerox Phaser 6120 Specifications

General

Color	Yes
Print technology	Laser
Time to first page (black, normal)	13 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	128 MB
Processor model	300 MHz, 32 bit RISC
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
I/O ports	USB
Power requirements	200 – 240 VAC / 100 – 127 VAC 50/60 Hz
Networking features	Ethernet/Fast-Ethernet
Non-operating relative humidity (non-condensing)	10 - 85 %
Total input capacity	200 sheets
Maximum input capacity	500 sheets
Printer fonts	PostScript
Maximum duty cycle	35000 pages per month
Number of PostScript fonts	139
Power consumption (printing)	380 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	442 x 395 x 341 mm
