Phaser 6125/6130 Color Laser Printer Service Manual 4-27
General Troubleshooting
Motor Tests
Main Motor FULL2/FULL1/HALF
The Main Motor drives the Transfer Belt and Imaging Unit drums.
If the Front Cover will be open for more than 5 minutes, remove the
Imaging Unit and cover it or place it in a dark location to avoid exposure to
light.
The rotational speed order of the Main Motor Test is as follows:
■ FULL2 < FULL1 < HALF
1. Enter the Service Diagnostic menu (page 4-5).
2. Open the Front Cover.
3. Defeat the Front Cover Interlock Switch.
4. Perform the Main Motor test: Engine Diag > Motor Test > Main Motor
FULL2/FULL1/HALF.
5. Verify that the Main Motor is running, the imaging unit drums are rotating,
and the Transfer Belt is moving.
6. Press the Cancel button to stop the Main Motor test.
7. Remove the cheater from the Interlock Switch.

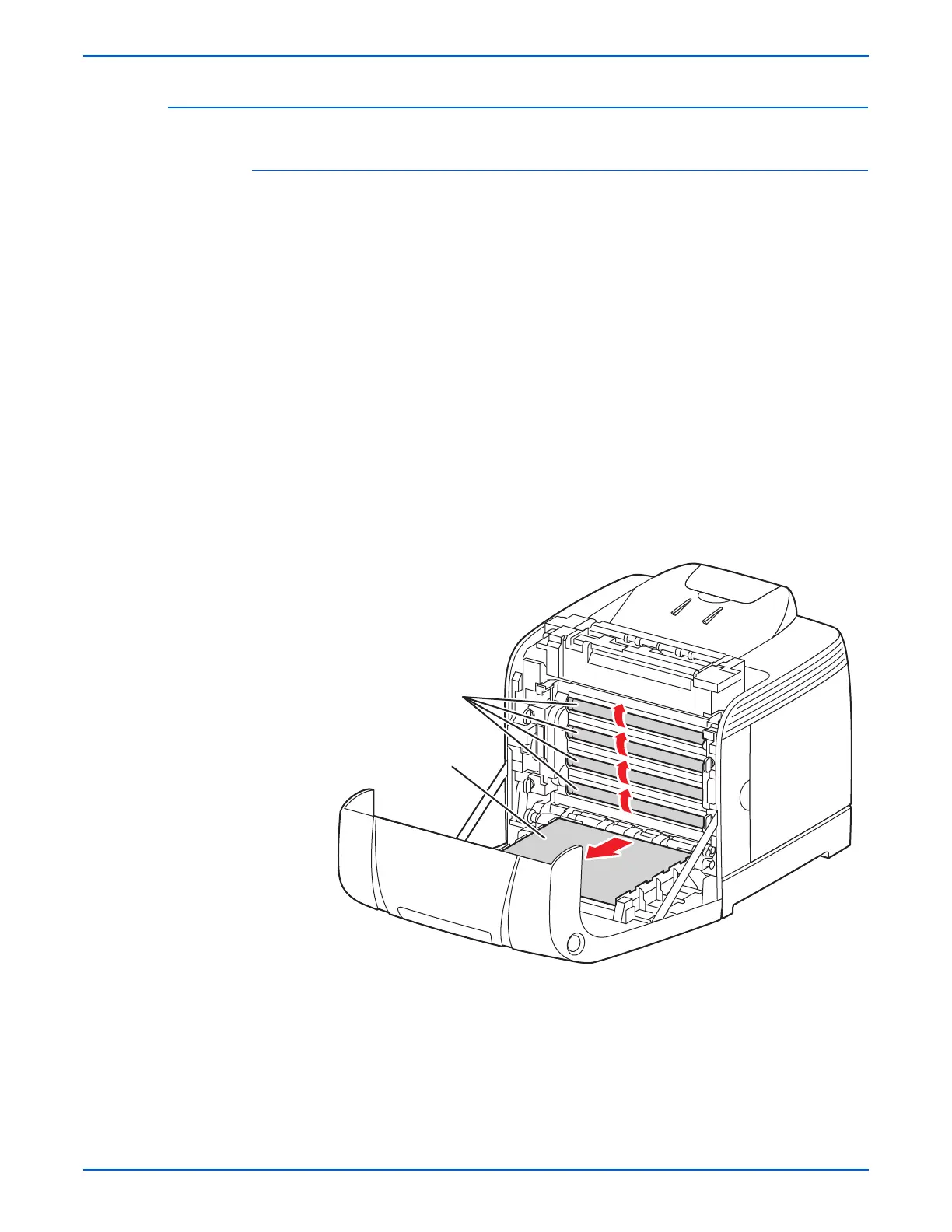

s6130-191
Drums
Belt
