4-20 Phaser 6125/6130 Color Laser Printer Service Manual
General Troubleshooting
Sensor Tests
Exit Sensor
Allow the Fuser to cool down before starting the procedure.
1. Enter Service Mode (page 4-5).
2. Open the Front Cover.

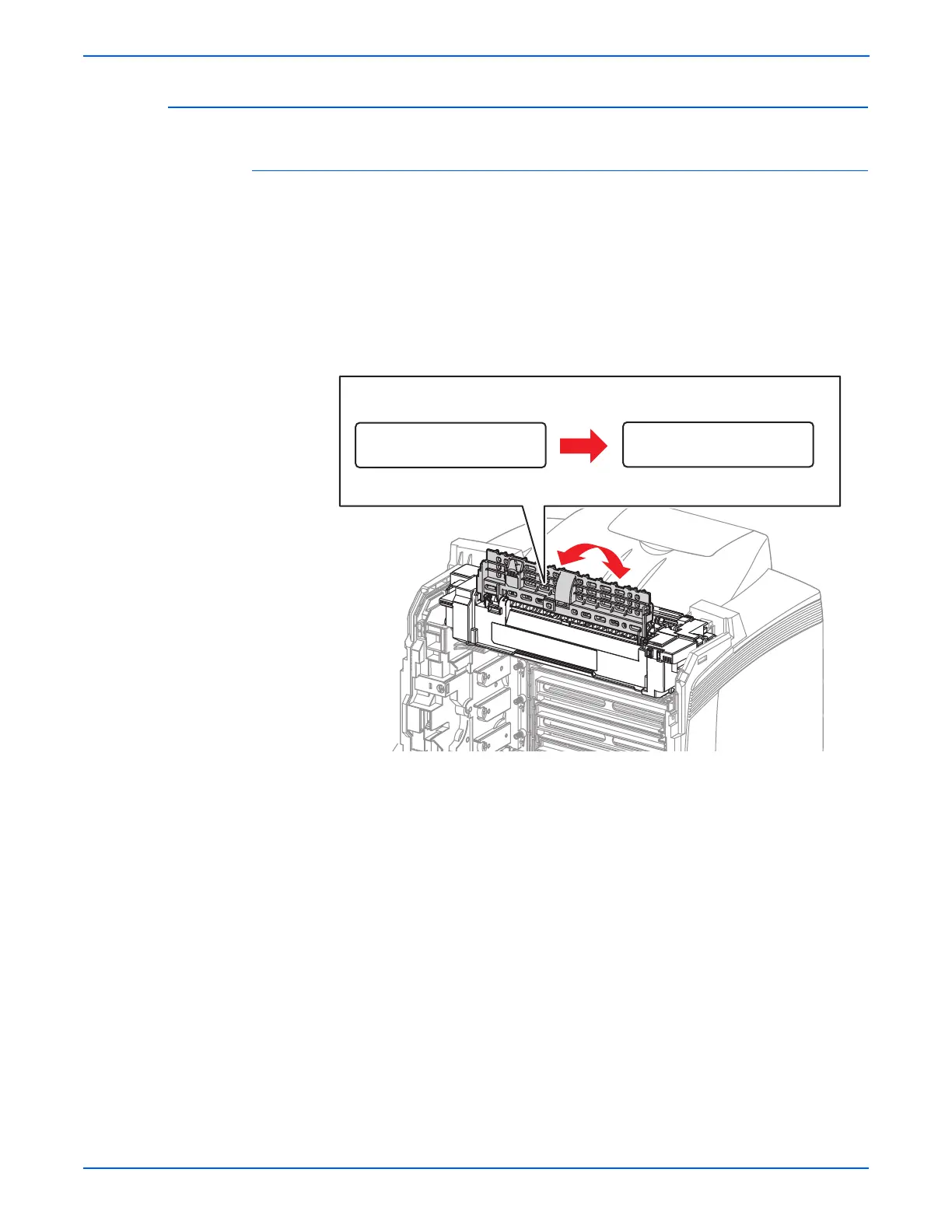

3. Perform the Exit Sensor test: Engine Diag > Sensor Test > Exit Sensor.
4. Move the Sensor up and down and check the information on the Control
Panel display. The Low and High values change from 0 up 99.
5. Press the Cancel button to stop the Exit Sensor test.
s6130-184
Control Panel
Normal
Exit Sensor
L-0
Exit Sensor
H-0
