Xerox Phaser 6125 Service Manual

2-26 Phaser 6125/6130 Color Laser Printer Service Manual
Theory of Operation
Toner Cartridge & Dispenser
The Toner Cartridge is a customer replaceable item that includes the following
components:
■ Customer Replaceable Unit Memory (CRUM) Connector
The CRUM Connector reads and writes the CRUM data. Printer specific
information is stored in the CRUM.
■ Dispenser Motor (C/M/Y/K)
The Dispenser Motor provides the drive for the Agitator and Auger in the
Toner Cartridge, and supplies toner to the Developer.

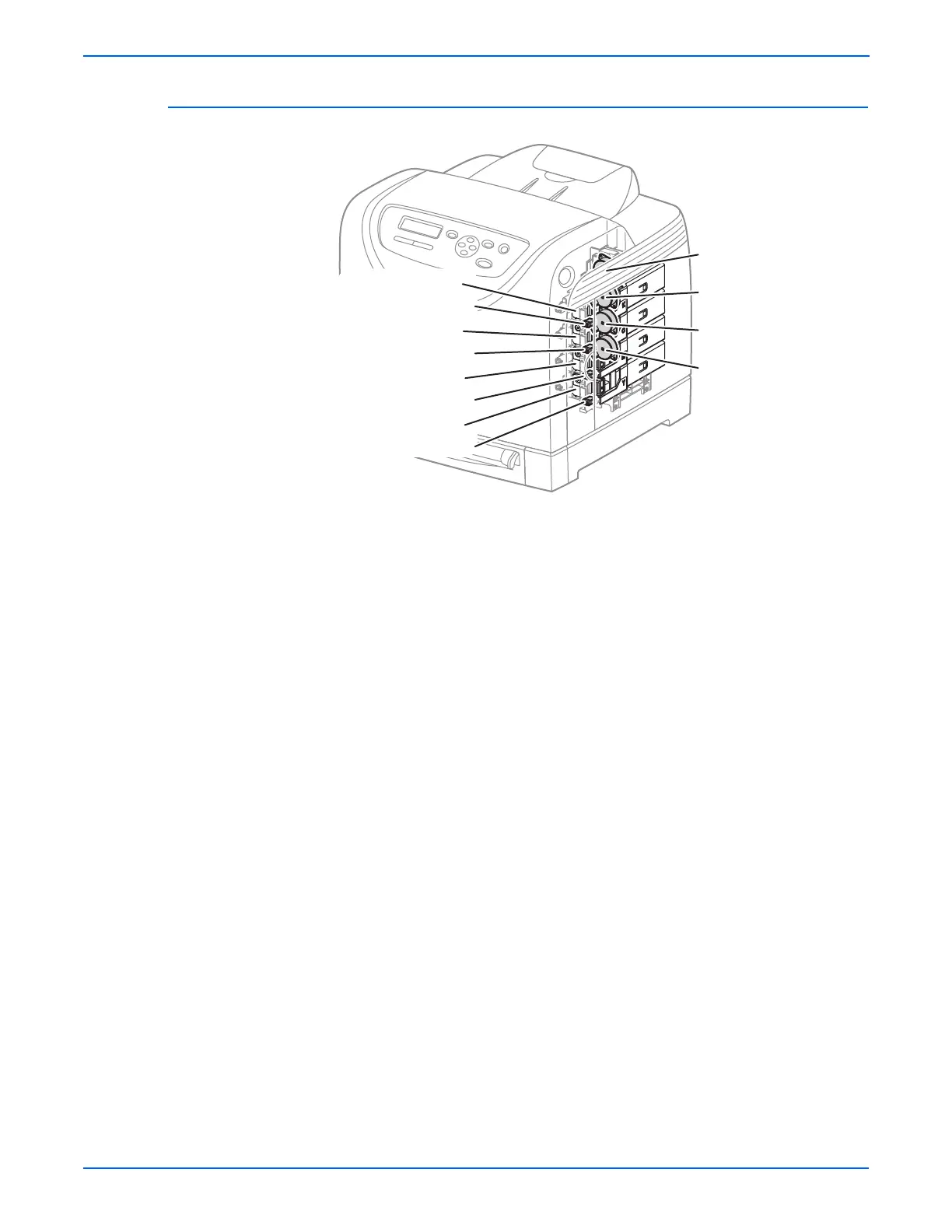

Dispenser Motor (K)
Dispenser Motor (C)
Dispenser Motor (M)
Dispenser Motor (Y)
Toner Cartridge (K)
Toner Cartridge (C)
Toner Cartridge (M)
Toner Cartridge (Y)
CRUM Connector (Y)
CRUM Connector (M)
CRUM Connector (C)
CRUM Connector (K)
s6130-021

Xerox Phaser 6125 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	17 s
Time to first page (color, normal)	14 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Internal memory	64 MB
Sound power level (standby)	25.7 dB
Sound pressure level (printing)	51.6 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Media weight (tray 1)	64 - 220 gsm
Paper tray media types	Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Letter
Multi-Purpose Tray media weight	64 - 164 g/m²
Power requirements	240 V, 50/60 Hz
Networking features	10/100BaseTX
Power consumption (active)	280 W
Maximum duty cycle	40000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	50 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	15 - 85 %
Certification	CE, UL 60950-1/CSA 60950-1-03, EMC 89/336/EEC, FCC 15 B, 73/23/EEC, 2002/95/EC

Weight and Dimensions

Dimensions (WxDxH)	400 x 394 x 389 mm
