Xerox Phaser 6125 Service Manual

2-4 Phaser 6125/6130 Color Laser Printer Service Manual
Theory of Operation
Charging
The Drum surface is charged with negative electricity by discharging of the
Bias Charge Roller (BCR) while rotating at a constant speed. This process is
performed in parallel for Cyan, Magenta, Yellow, and Black colors.
The BCR is kept in contact with the Drum and rotates following the rotations of
the Drum. The BCR is a conductive roller, which receives negative voltage
from the High-Voltage Power Supply (HVPS) and discharges a negative
Direct Current (DC) voltage.
The Drum surface is uniformly and negatively charged with DC bias voltage.
The Drum surface is a photoreceptor (which is an insulator in a dark area and
a conductor when receiving light) and the Drum inside is composed of
conductor.
The Cleaning Roller is a sponge that contacts the BCR to catch the toner.

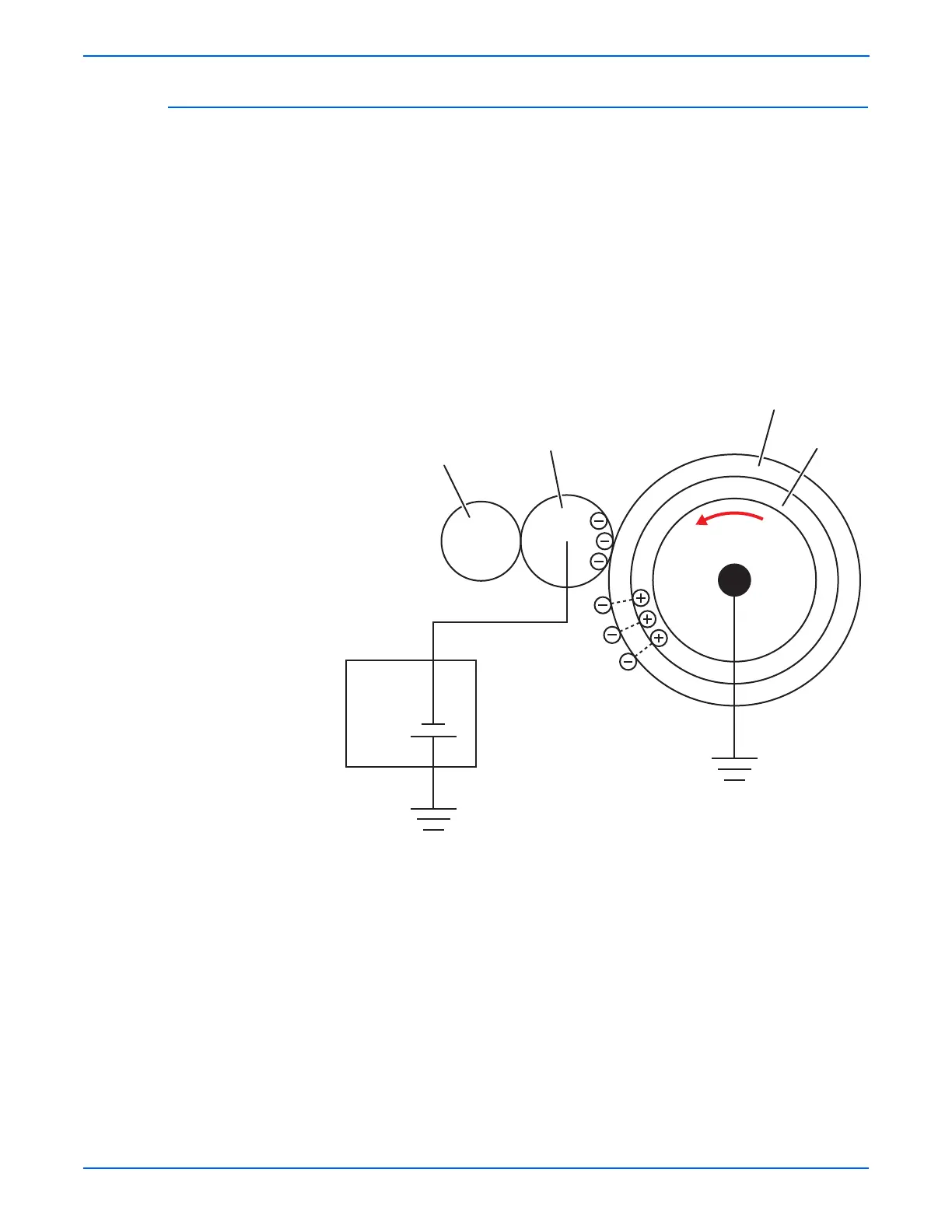

s6180-135
Cleaning Roller
BCR
Photoreceptor
Conductor
Drum
HVPS

Xerox Phaser 6125 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	17 s
Time to first page (color, normal)	14 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Internal memory	64 MB
Sound power level (standby)	25.7 dB
Sound pressure level (printing)	51.6 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Media weight (tray 1)	64 - 220 gsm
Paper tray media types	Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Letter
Multi-Purpose Tray media weight	64 - 164 g/m²
Power requirements	240 V, 50/60 Hz
Networking features	10/100BaseTX
Power consumption (active)	280 W
Maximum duty cycle	40000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	50 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	15 - 85 %
Certification	CE, UL 60950-1/CSA 60950-1-03, EMC 89/336/EEC, FCC 15 B, 73/23/EEC, 2002/95/EC

Weight and Dimensions

Dimensions (WxDxH)	400 x 394 x 389 mm
