Xerox Phaser 6125 Service Manual

2-24 Phaser 6125/6130 Color Laser Printer Service Manual
Theory of Operation
Fuser
The Fuser fixes transferred toner onto the paper using heat and pressure and
feeds the paper before and after toner is fixed. The Fuser consists of the
following components: Heat Roller, Heater Lamp, Thermostat, Temperature
Sensor, Pressure Belt, Exit Roller, and Exit Sensor.
■ Exit Sensor
The Exit Sensor detects passage of printed pages after fusing on the
Actuator’s position changes.

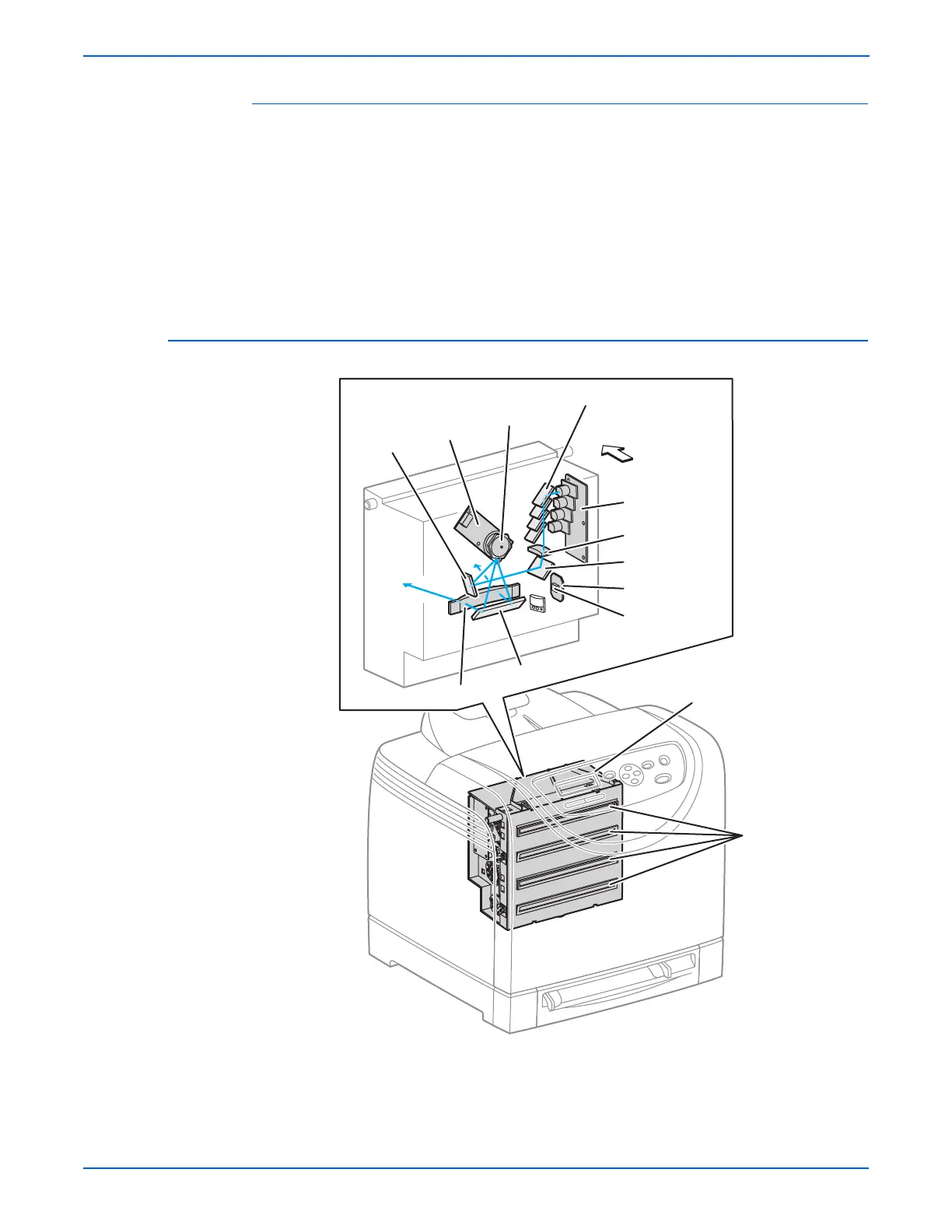

Laser Unit
The Laser Unit is an exposure unit that generates laser beams to form an
electrostatic latent image on the drum surface. The Laser Unit consists of the
following components: Laser Diode (LD) Board, Scanner Assembly, Start of
Scan (SOS) Board, Lenses, Mirrors, and Windows.
Windows
Laser Unit
s6130-020
Front
Laser Diode
Board
Polygon Mirror
Scanner
SOS Board
Lens
Lens
Mirror
Mirror
Mirror
Mirror
Rear View
SOS Sensor

Xerox Phaser 6125 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	17 s
Time to first page (color, normal)	14 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Internal memory	64 MB
Sound power level (standby)	25.7 dB
Sound pressure level (printing)	51.6 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Media weight (tray 1)	64 - 220 gsm
Paper tray media types	Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Letter
Multi-Purpose Tray media weight	64 - 164 g/m²
Power requirements	240 V, 50/60 Hz
Networking features	10/100BaseTX
Power consumption (active)	280 W
Maximum duty cycle	40000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	50 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	15 - 85 %
Certification	CE, UL 60950-1/CSA 60950-1-03, EMC 89/336/EEC, FCC 15 B, 73/23/EEC, 2002/95/EC

Weight and Dimensions

Dimensions (WxDxH)	400 x 394 x 389 mm
