Phaser 6125/6130 Color Laser Printer Service Manual 8-57
Service Parts Disassembly
GFI Breaker
(PL8.2.11)

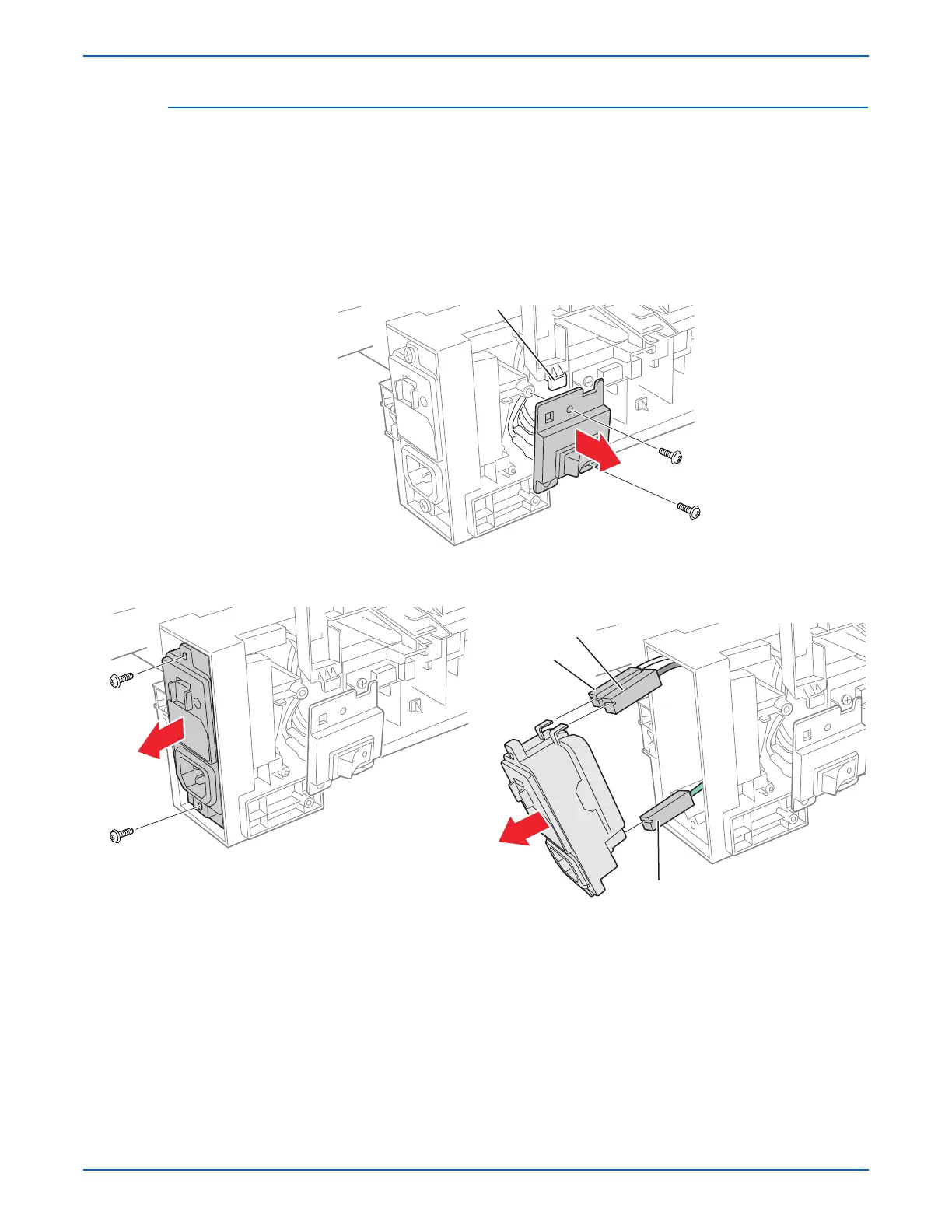

1. Remove the Rear Cover (page 8-18).
2. Remove 2 screws (silver, tap, 8mm) that attach the Switch Bracket to the
printer.
3. Release the Switch Bracket from the hook together with the Main Switch.
4. Remove the two screws (silver, tap, 16mm) that attach the GFI Breaker to
the printer.
5. Pull the GFI Breaker out of the frame, unplug the three connectors (P/
J482, 483, 484), and remove the GFI Breaker from the printer.
s6130-137
s6130-138
P/J482
P/J483
P/J484
