Service Parts Disassembly

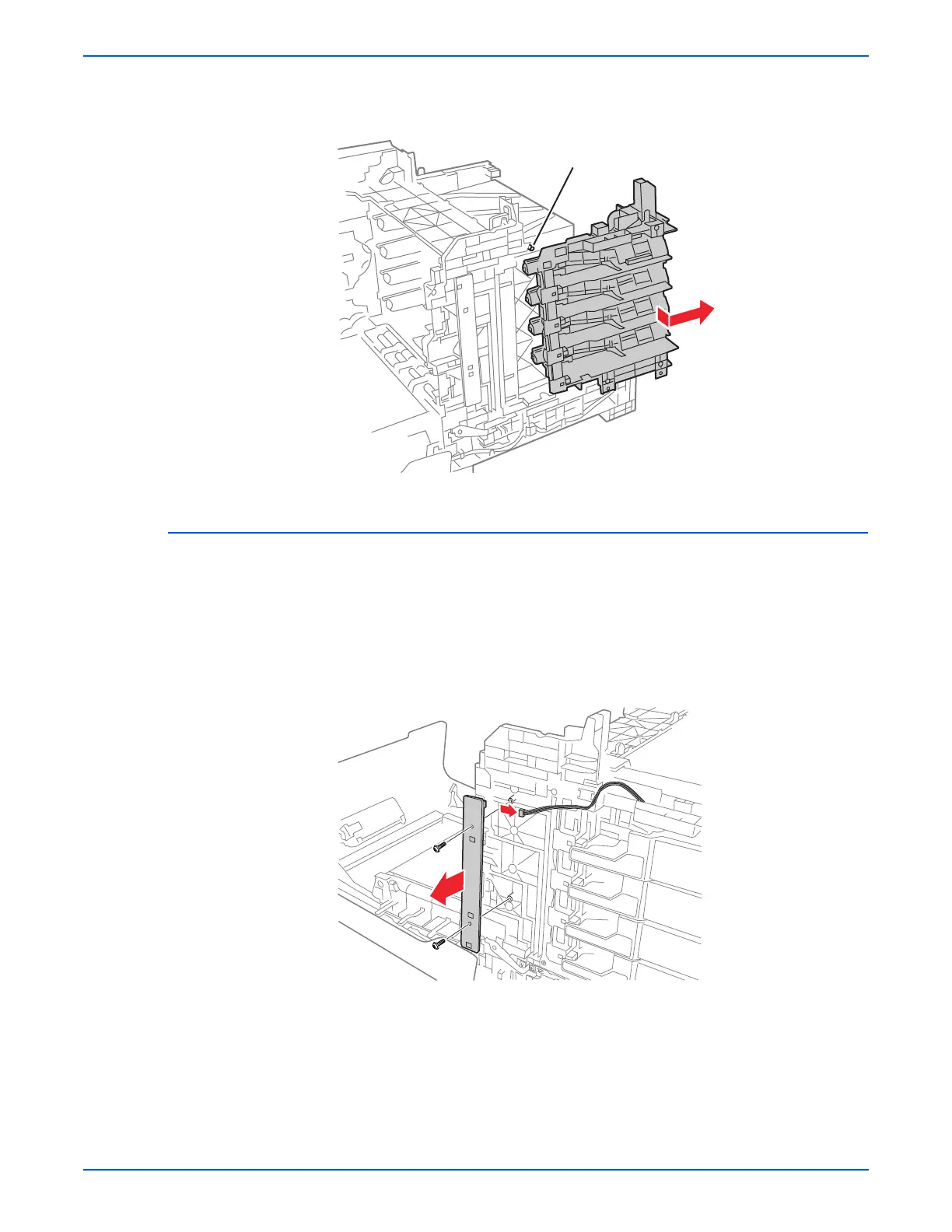

18. Release the hole in the Dispenser Assembly from the boss on the printer.
Move the Dispenser Assembly toward the rear to remove it from the
printer.
Erase LED Assembly
(PL4.1.8)
1. Remove the Right Side Cover (page 8-16).
2. Remove the two screws (silver, tap, 8mm) that attach the Erase LED
Assembly to the printer.
3. Remove the Erase LED Assembly from the printer.
4. Unplug the connector (P/J141) of the Erase LED Assembly.
Boss
s6130-104
