8-14 Phaser 6125/6130 Color Laser Printer Service Manual
Service Parts Disassembly
Top Cover
(PL1.1.1)
Do not expose the drums on the Imaging Unit to light for more than 5
minutes. Cover the Imaging Unit or remove it to a dark storage location to
avoid damage.
1. Remove the Imaging Unit (page 8-8).
The Fuser may be hot. Turn the printer power Off and allow at least 5
minutes for the Fuser to cool before removing the Fuser.
2. Remove the Fuser (page 8-9).

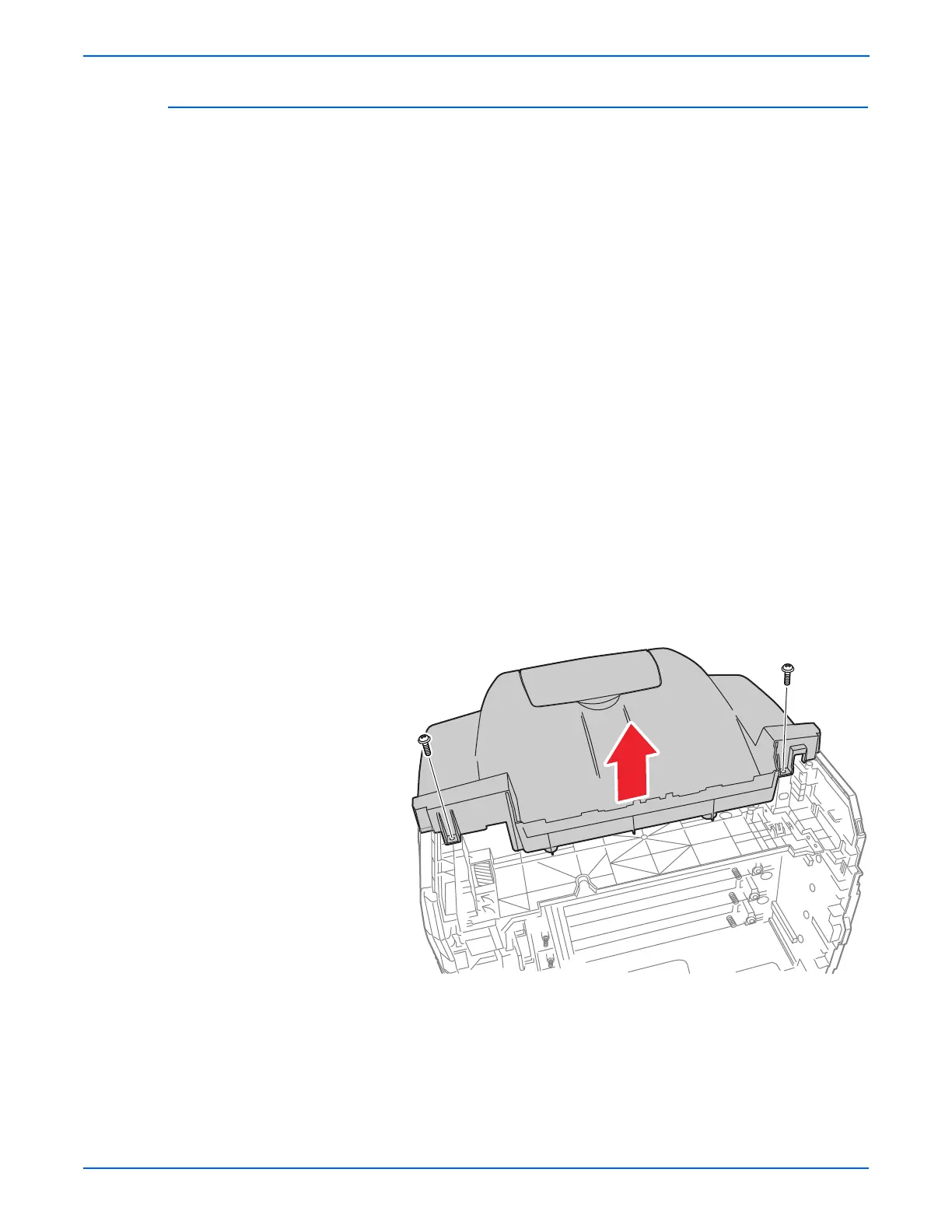

3. Remove the two screws (silver, tap, 8mm) that attach the Top Cover to the
printer.
4. Lift up the front side of the Top Cover just enough to release it from the
two pegs on the printer.
5. Push the Top Cover toward the rear to disengage the latches, and lift to
remove it.
There are three latches holding down the Top Cover at the rear.
When pushing the Top Cover toward the rear, the latches on each
side will release. The third latch in the center will snap free as the
cover is lifted.
When reinstalling the Top Cover, set the cover in place, then press
down on the rear edge so that the latches snap in place. Install the
screws to complete the reassembly.
