Phaser 6125/6130 Color Laser Printer Service Manual 8-25
Service Parts Disassembly

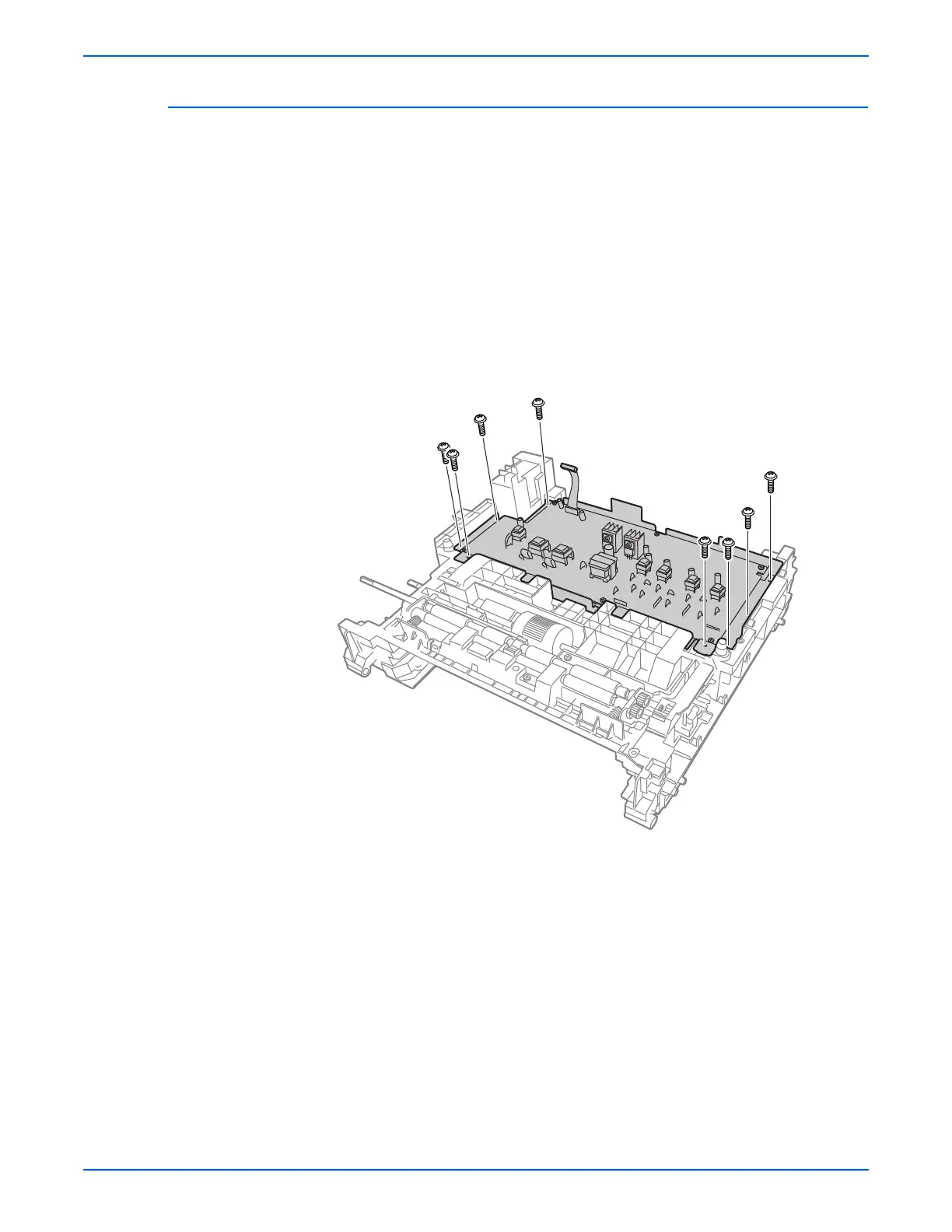

Feeder Assembly
(PL3.1.3)
Separation of the Upper and Lower Assemblies involves almost complete
disassembly of the printer.
1. Separate the Upper and Lower Assemblies (page 8-47).
2. Remove the eight screws (silver, tap, 8mm) that attach the HVPS Frame
to the Feeder Assembly.
3. Remove the HVPS Frame from the Feeder Assembly together with the
HVPS Board.
4. If replacing the Feeder Assembly, remove the GFI Breaker (page 8-57)
and Humidity Sensor (page 8-58) for transfer to the new assembly.
s6130-091
