Xerox Phaser 6125 Service Manual

Phaser 6125/6130 Color Laser Printer Service Manual 2-19
Theory of Operation
Manual Feed & Registration

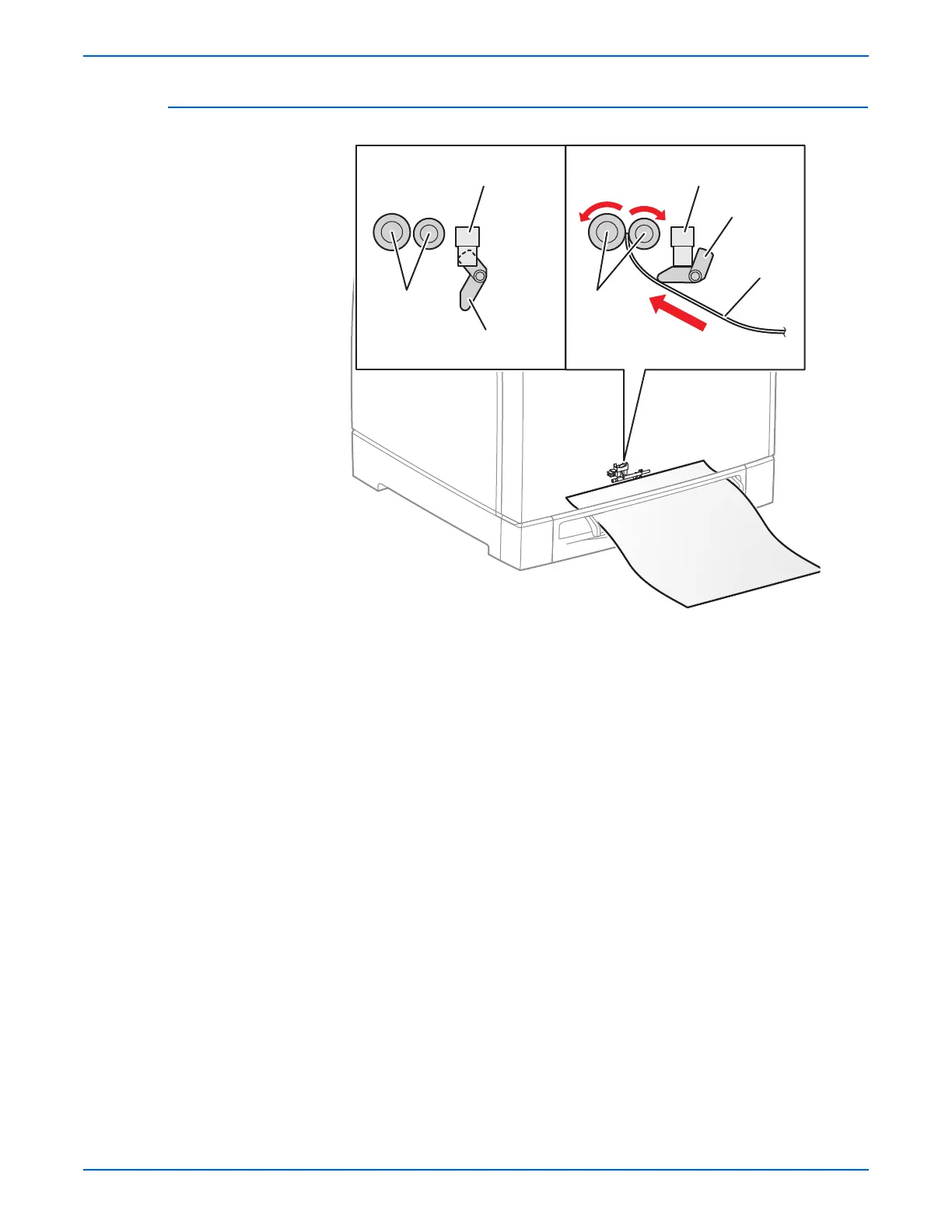

■ Manual Feed No Paper Sensor (Photo Sensor)
Detects presence/absence of paper in the Manual Feed Slot by the
change in actuator position.
Upon detecting the sheet, the Regi Roller rotates for a predetermined
duration to feed the sheet. The sheet is caught between the Rollers so
that it may not fall from the Manual Feed Slot.
The Rollers stop immediately when the Registration Sensor detects the
presence of paper.
■ Registration Sensor (Photo Sensor)
The Registration Sensor detects paper when the paper leading edge
reaches the Registration Chute. When paper is fed from the Manual Feed
Slot, the Registration Sensor measures the paper length. The On time of
the Registration Sensor is converted into the paper length.
Note
On: The paper activates the Actuator.
s6130-
Manual Sheet Feed
No Paper Sensor
Manual Sheet Feed
No Paper Sensor
Paper
Manual Sheet Feed Actuator
(No Paper Position)
Manual Sheet
Feed Actuator
Registration
Rollers
Registration
Rollers

Xerox Phaser 6125 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	17 s
Time to first page (color, normal)	14 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Internal memory	64 MB
Sound power level (standby)	25.7 dB
Sound pressure level (printing)	51.6 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Media weight (tray 1)	64 - 220 gsm
Paper tray media types	Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Letter
Multi-Purpose Tray media weight	64 - 164 g/m²
Power requirements	240 V, 50/60 Hz
Networking features	10/100BaseTX
Power consumption (active)	280 W
Maximum duty cycle	40000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	50 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	15 - 85 %
Certification	CE, UL 60950-1/CSA 60950-1-03, EMC 89/336/EEC, FCC 15 B, 73/23/EEC, 2002/95/EC

Weight and Dimensions

Dimensions (WxDxH)	400 x 394 x 389 mm
