Xerox Phaser 6125 Service Manual

Phaser 6125/6130 Color Laser Printer Service Manual 5-39
Print-Quality Troubleshooting

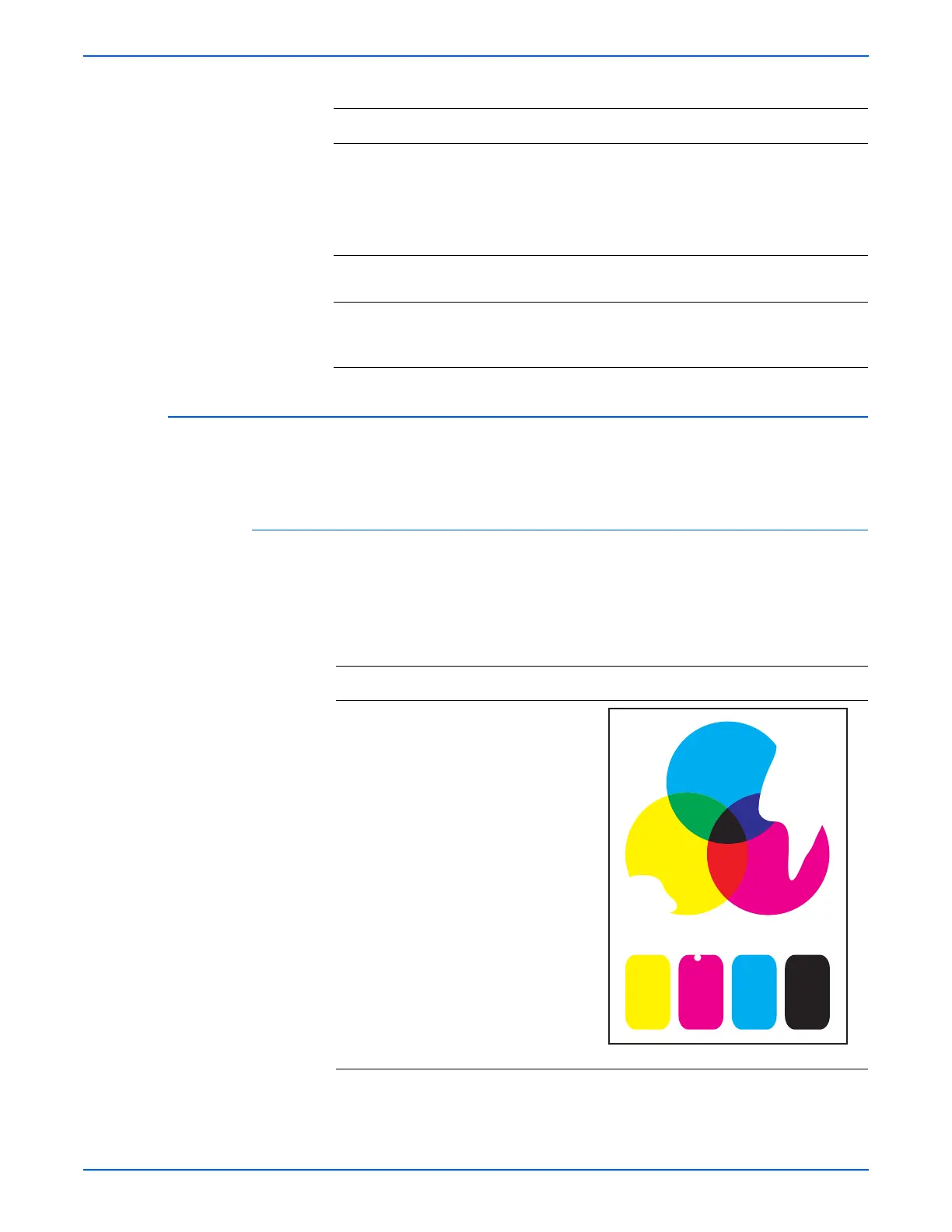

Partial Band
There are areas of the image that are extremely light or are missing in a
limited area on the paper.
Initial Actions
■ Check the paper transfer path.
■ Ensure there are no debris on the transfer path.
14 Replace the Fuser (page 8-9).
Warning: Start the operation after the
Fuser has cooled down.
Does the error still occur when
printing?
Complete Go to step 15.
15 Replace the IP Board (page 8-60).
Is the image printed correctly?
Complete Go to step 16.
16 Replace the Laser Unit (page 8-31).
Is the image printed correctly?
Complete Replace the
MCU Board
(page 8-59).
Troubleshooting Reference Table
Applicable Notes Example Print
■ Laser Unit Kit (PL4.1.99)
■ Imaging Unit (PL4.1.21)
■ Transfer Unit (PL6.1.7)
■ IP Board (PL8.1.9)
■ MCU Board (PL8.2.13)
Troubleshooting Procedure Table (continued)
Step Actions and Questions Yes No
ABCDE abcde 12345
s6180-324

Xerox Phaser 6125 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	17 s
Time to first page (color, normal)	14 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Internal memory	64 MB
Sound power level (standby)	25.7 dB
Sound pressure level (printing)	51.6 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Media weight (tray 1)	64 - 220 gsm
Paper tray media types	Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Letter
Multi-Purpose Tray media weight	64 - 164 g/m²
Power requirements	240 V, 50/60 Hz
Networking features	10/100BaseTX
Power consumption (active)	280 W
Maximum duty cycle	40000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	50 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	15 - 85 %
Certification	CE, UL 60950-1/CSA 60950-1-03, EMC 89/336/EEC, FCC 15 B, 73/23/EEC, 2002/95/EC

Weight and Dimensions

Dimensions (WxDxH)	400 x 394 x 389 mm
