8-12 Phaser 6125/6130 Color Laser Printer Service Manual
Service Parts Disassembly

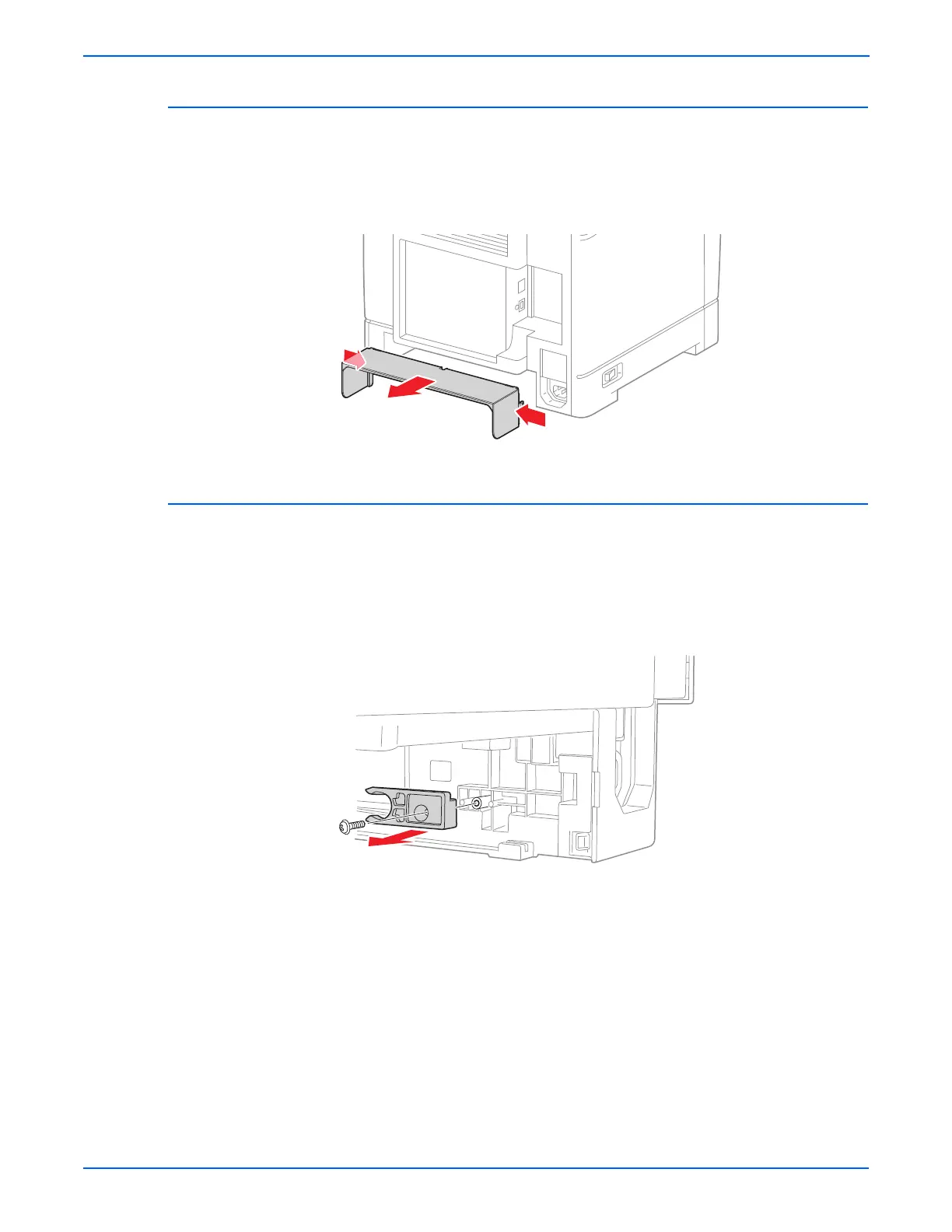

Rear Tray Cover
(PL1.1.4)
1. Remove the Paper Tray from the printer.
2. Press the left and right sides of the Rear Tray Cover to release the two
hooks from the holes in the printer and remove the cover.
Cassette Stopper
(PL3.1.7)
1. Remove the Paper Tray.
2. Remove the Rear Tray Cover.
3. Remove the screw (silver, tapping) that attaches the Cassette Stopper to
the Feeder Assembly, and remove the stopper from the printer.
s6130-166
