Phaser 6125/6130 Color Laser Printer Service Manual 5-37
Print-Quality Troubleshooting
Horizontal Stripes
There are black lines running parallel with the leading edge of the print,
perpendicular to the direction of the paper travel.
Initial Actions
■ Check the paper transfer path.
■ Ensure there are no debris on the transfer path.
To prevent burns, allow the Fuser to cool down before starting the
procedure.
Troubleshooting Reference Table

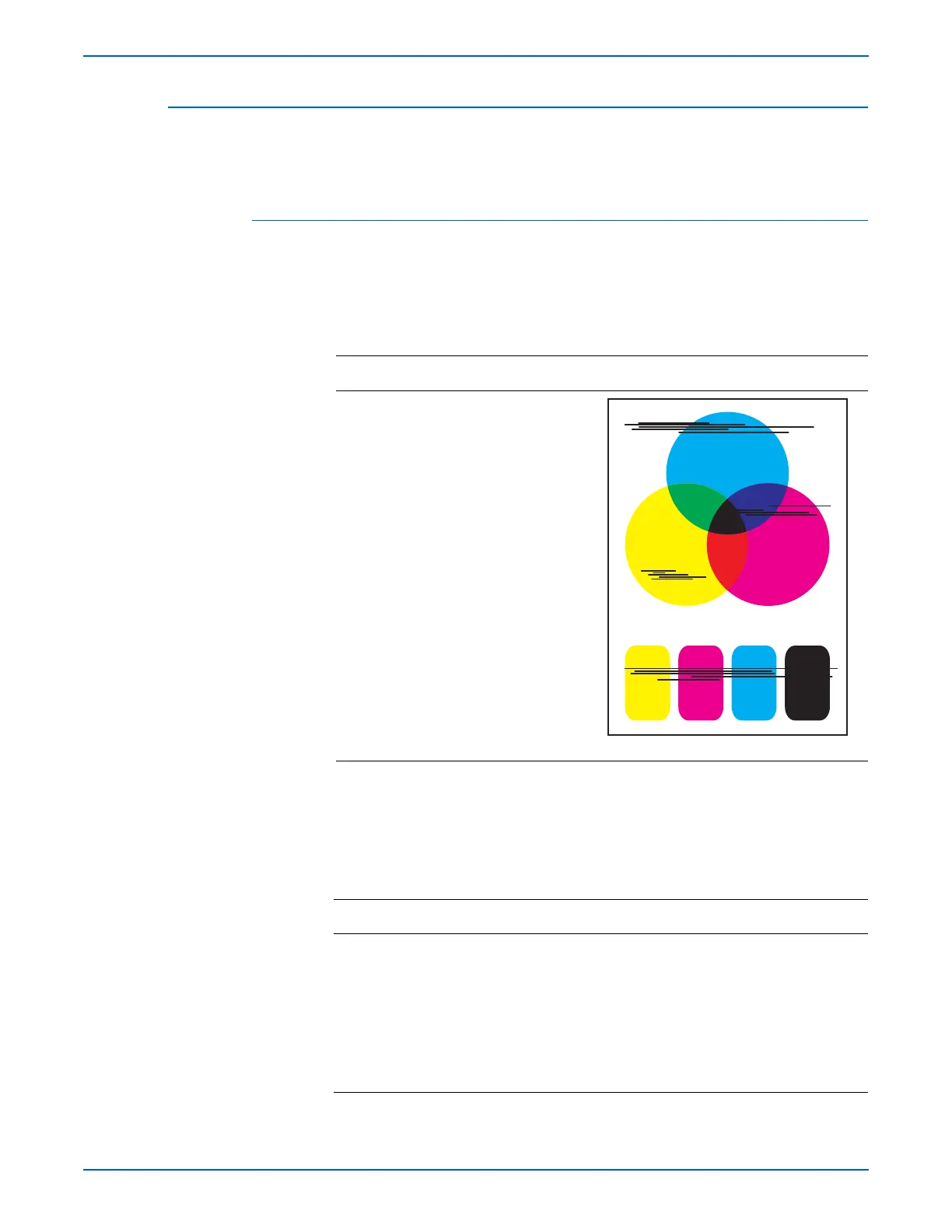

Applicable Notes Example Print
■ Laser Unit Kit (PL4.1.99)
■ Imaging Unit (PL4.1.21)
■ Toner Cartridge K (PL5.1.21)
■ Toner Cartridge C (PL5.1.22)
■ Toner Cartridge M (PL5.1.23)
■ Toner Cartridge Y (PL5.1.24)
■ Fuser (PL6.1.1)
■ Transfer Unit (PL6.1.7)
■ IP Board (PL8.1.9)
■ MCU Board (PL8.2.13)
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Run the Contamination Check test
print: Service Mode > Test Print >
Contamination Chk
Compare any horizontal dropout
bands with the Pitch Chart
(page 5-21).
Do any of the horizontal bands match
the chart?
Replace the
corresponding
parts.
Go to step 2.
ABCDE abcde 12345
s6180-323
To Next Page
