Xerox Phaser 6125

8-16 Phaser 6125/6130 Color Laser Printer Service Manual
Service Parts Disassembly
Right Side Cover
(PL1.1.6)
1. Remove the Toner Access Door (page 8-11).
2. Remove the Rear Tray Cover (page 8-12).
3. Remove the Top Cover (page 8-14).

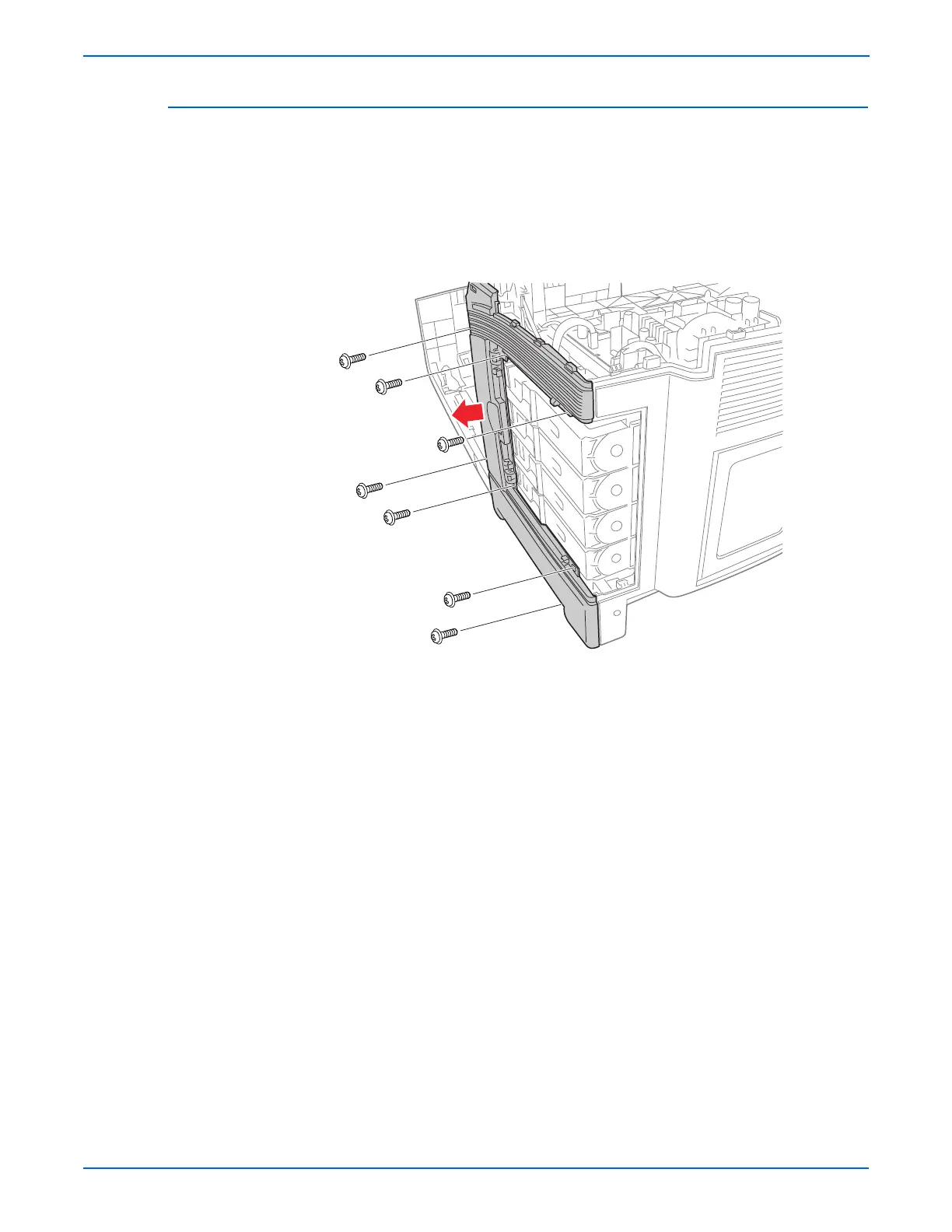

4. Remove the seven screws (silver, tap, 8mm) that attach the Right Side
Cover to the printer.
5. Release the hook at the front and remove the Right Side Cover from the
printer.
s6130-099
