8-10 Phaser 6125/6130 Color Laser Printer Service Manual
Service Parts Disassembly
Toner Cartridges (C, M, Y, K)
(PL5.1.21-24)
This procedure applies to all four toner cartridges.

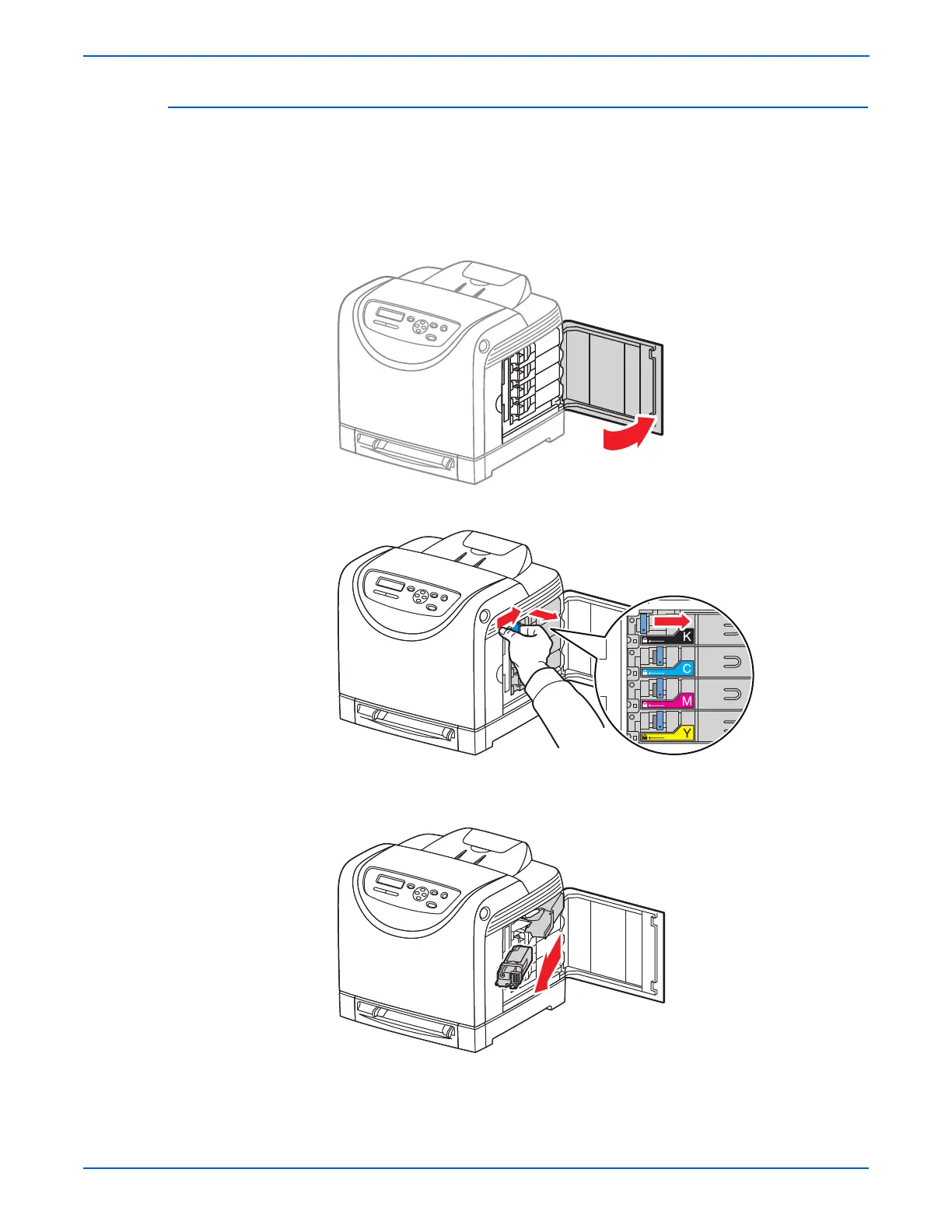

1. Open the Toner Access Door.
2. Push the toner cartridge handle toward the rear to release the latch.
3. Swing open the toner cartridge holder and slide the toner cartridge out of
the holder as shown.
s6130-075
s6130-077
