Xerox Phaser 6125 Service Manual

8-30 Phaser 6125/6130 Color Laser Printer Service Manual
Service Parts Disassembly

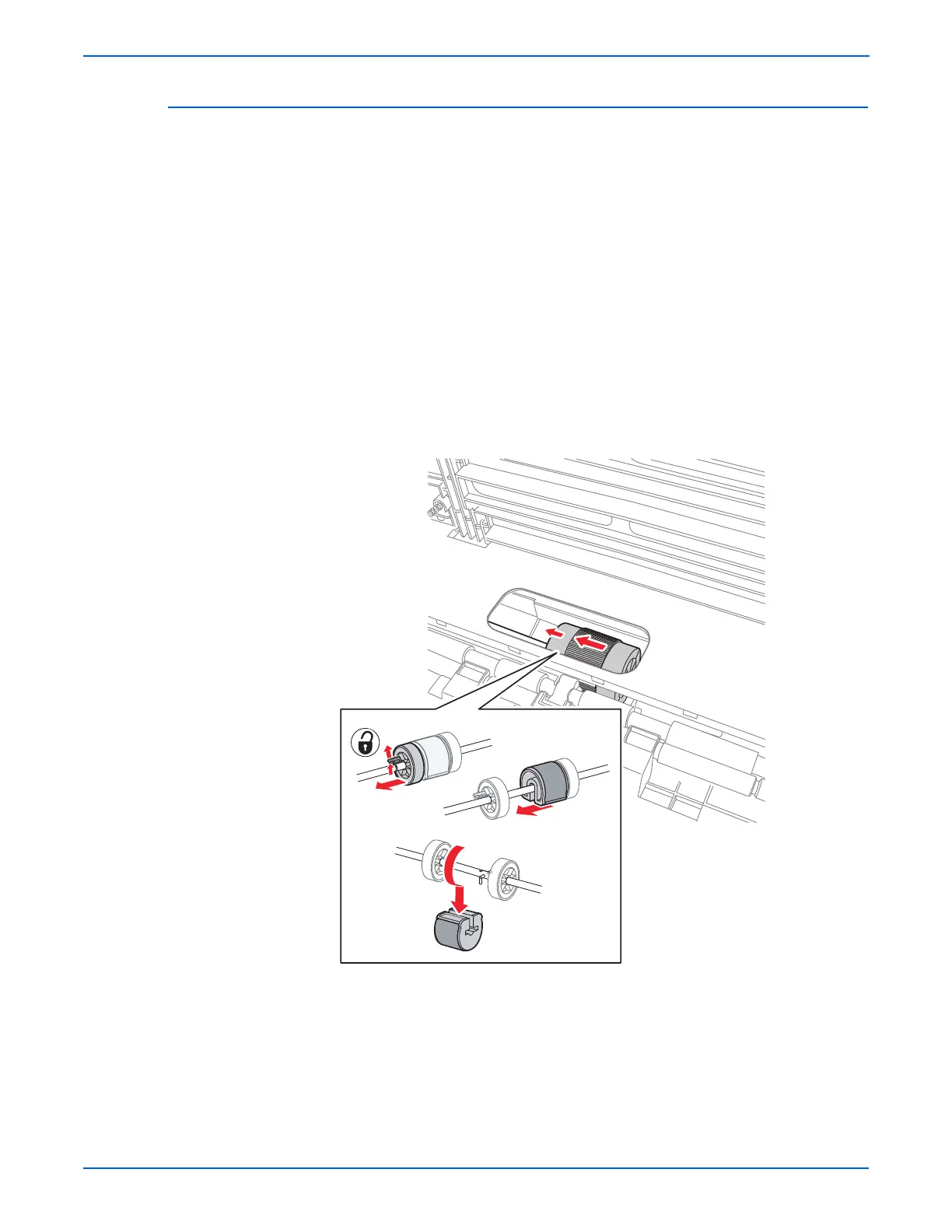

Feed Roller
(PL3.2.4)
1. Remove the Tray.
2. Open the Front Cover.
Caution
Do not expose the drums on the Imaging Unit to light for more than 5
minutes. Cover the drums to avoid damage.
3. Remove the Imaging Unit (page 8-8)
4. Reach in through the opening in the bottom of the imaging unit cavity and
release the hook on the left side Roller Core. Move the Roller Core to the
left side.
5. Move the Feed Roller to the left, so that the grooves in the Feed Roller
are clear of the pins on the Feed Shaft.
6. Rotate the Feed Roller 180° on the Feed Shaft and allow the Feed Roller
to drop off the shaft.
Replacement Note
Because there are grooves in only in one side of the Feed Roller, it
fits over the pins on the Feed Shaft in only one direction. Note the
location of the grooves when installing the Feed Roller on the shaft.
s6130-092

Xerox Phaser 6125 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	17 s
Time to first page (color, normal)	14 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Internal memory	64 MB
Sound power level (standby)	25.7 dB
Sound pressure level (printing)	51.6 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Media weight (tray 1)	64 - 220 gsm
Paper tray media types	Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Letter
Multi-Purpose Tray media weight	64 - 164 g/m²
Power requirements	240 V, 50/60 Hz
Networking features	10/100BaseTX
Power consumption (active)	280 W
Maximum duty cycle	40000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	50 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	15 - 85 %
Certification	CE, UL 60950-1/CSA 60950-1-03, EMC 89/336/EEC, FCC 15 B, 73/23/EEC, 2002/95/EC

Weight and Dimensions

Dimensions (WxDxH)	400 x 394 x 389 mm
