Xerox Phaser 6125 Service Manual

Phaser 6125/6130 Color Laser Printer Service Manual 2-15
Theory of Operation
Major Assemblies and Functions
Major functional components for the printer are classified into the following
categories based on the printer configuration.
■ Paper Tray
■ Paper Feeder
■ Manual Feed & Registration
■ Transfer Unit and Fuser
■ Laser Unit
■ Toner Cartridge & Dispenser
■ Imaging Unit
■ Drive Assembly
■ Electrical

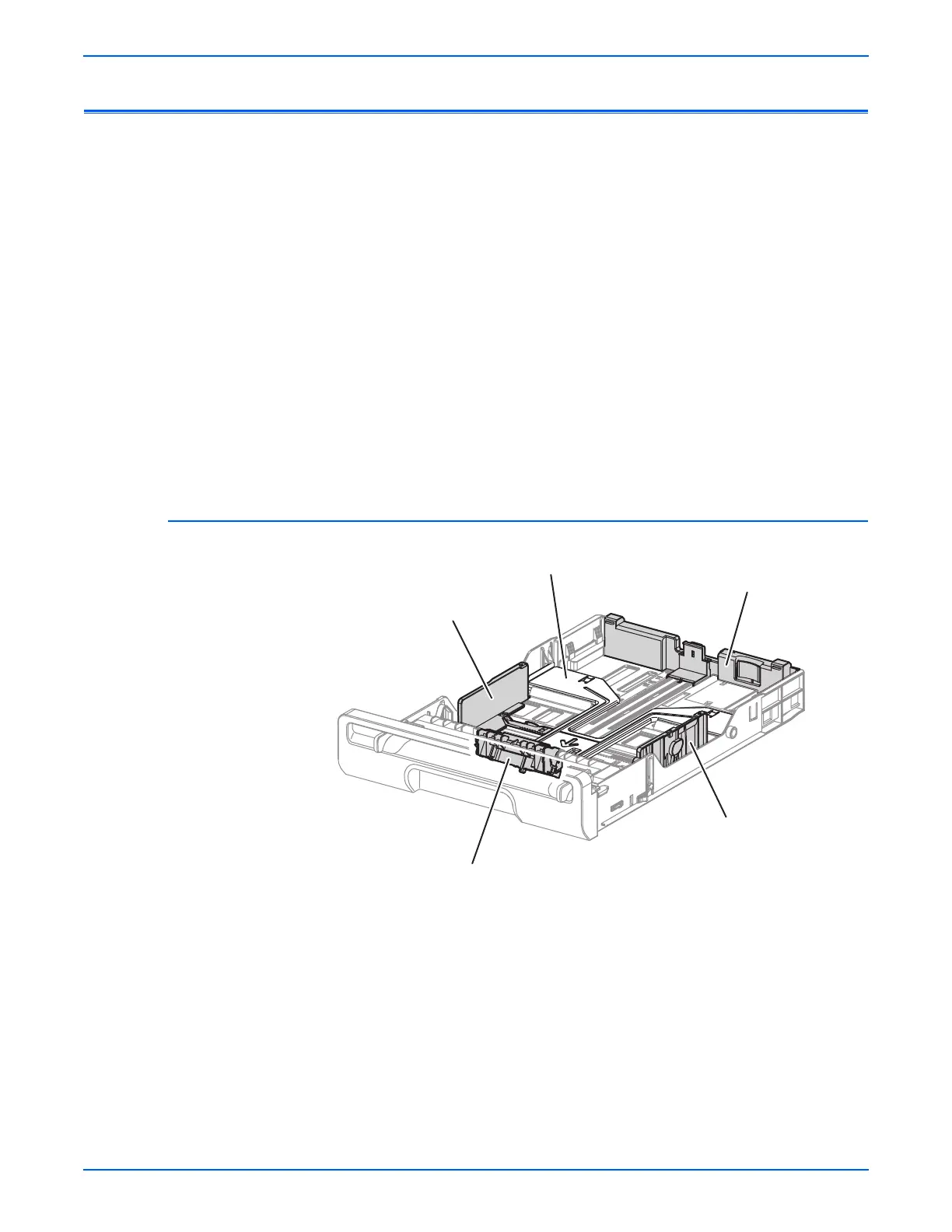

Paper Tray
■ Left/Right Side Guide
The Side Guides move at a right angle to the paper transfer direction to
align the paper width.
■ Separator Roller
The Separator Roller and Feed Roller pinch the paper to prevent multiple
sheets of paper from feeding.
s6130-010
Bottom Plate
Side Guide (L)
Side Guide (R)
End Guide
Separator Roller

Xerox Phaser 6125 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	17 s
Time to first page (color, normal)	14 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Internal memory	64 MB
Sound power level (standby)	25.7 dB
Sound pressure level (printing)	51.6 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Media weight (tray 1)	64 - 220 gsm
Paper tray media types	Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Letter
Multi-Purpose Tray media weight	64 - 164 g/m²
Power requirements	240 V, 50/60 Hz
Networking features	10/100BaseTX
Power consumption (active)	280 W
Maximum duty cycle	40000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	50 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	15 - 85 %
Certification	CE, UL 60950-1/CSA 60950-1-03, EMC 89/336/EEC, FCC 15 B, 73/23/EEC, 2002/95/EC

Weight and Dimensions

Dimensions (WxDxH)	400 x 394 x 389 mm
