Xerox Phaser 6125 Service Manual

8-4 Phaser 6125/6130 Color Laser Printer Service Manual
Service Parts Disassembly
Preparation
Before you begin any removal and replacement procedure:
1. Wear an Electrostatic Discharge wrist strap to help prevent damage to the
sensitive electronics of the printer circuit boards.
2. Turn Off the printer and disconnect the power cord from the wall outlet.
3. Disconnect all interface cables from the printer.
4. Remove the Paper Tray.
5. Open the Front Cover.
6. Remove the following Maintenance Items:
Caution
Do not expose the Imaging Unit to light for more than 5 minutes. After
removal, cover the Imaging Unit to minimize the amount of light
striking the drums. Prolonged exposure to light significantly reduces
Imaging Unit performance.
a. Imaging Unit (page 8-8).

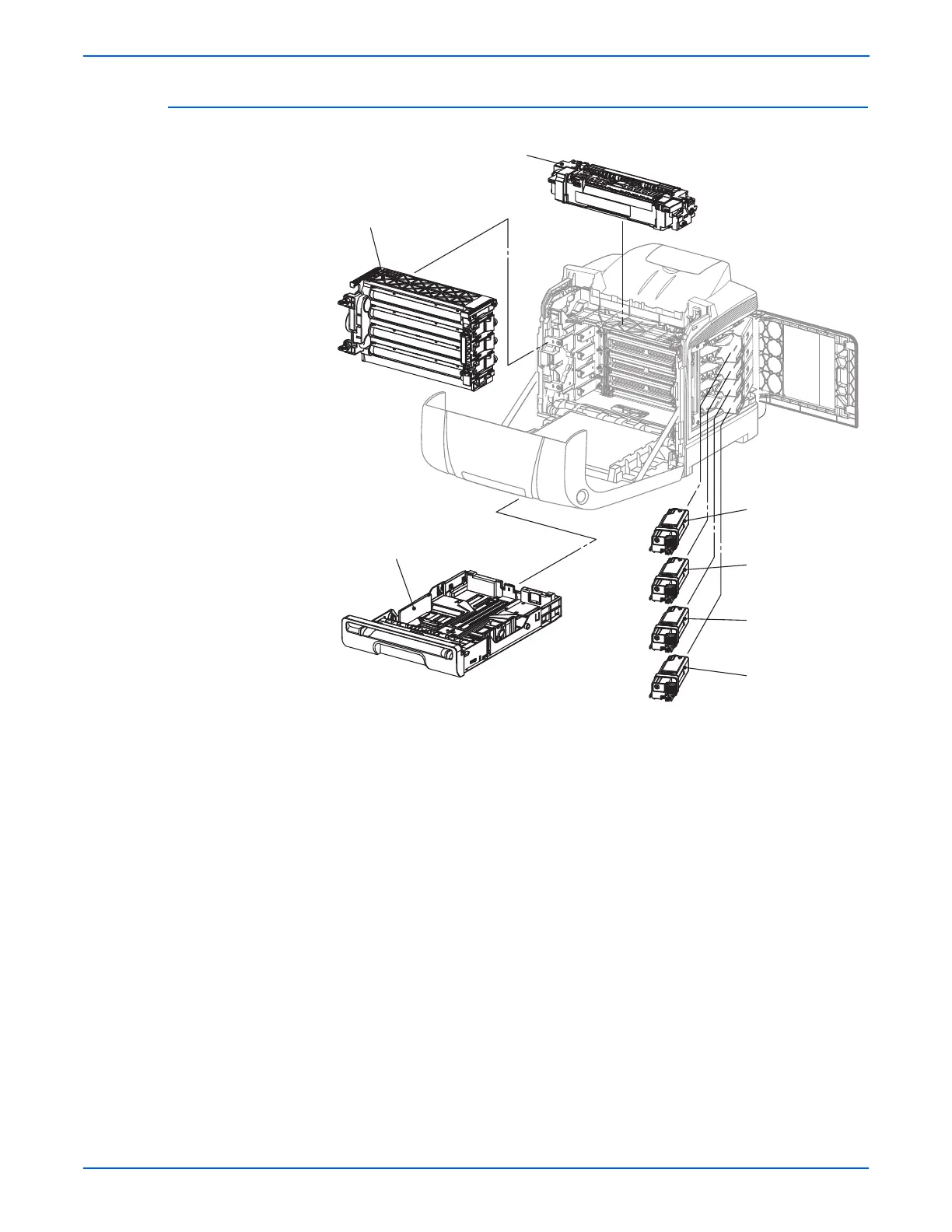

s6130-052
Imaging Unit
Paper Tray
Fuser
Black Toner
Cartridge
Cyan Toner
Cartridge
Magenta Toner
Cartridge
Yellow Toner
Cartridge

Xerox Phaser 6125 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	17 s
Time to first page (color, normal)	14 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Internal memory	64 MB
Sound power level (standby)	25.7 dB
Sound pressure level (printing)	51.6 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Media weight (tray 1)	64 - 220 gsm
Paper tray media types	Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Letter
Multi-Purpose Tray media weight	64 - 164 g/m²
Power requirements	240 V, 50/60 Hz
Networking features	10/100BaseTX
Power consumption (active)	280 W
Maximum duty cycle	40000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	50 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	15 - 85 %
Certification	CE, UL 60950-1/CSA 60950-1-03, EMC 89/336/EEC, FCC 15 B, 73/23/EEC, 2002/95/EC

Weight and Dimensions

Dimensions (WxDxH)	400 x 394 x 389 mm
