8-52 Phaser 6125/6130 Color Laser Printer Service Manual
Service Parts Disassembly
Drive
Main Drive Assembly
(PL7.1.2)

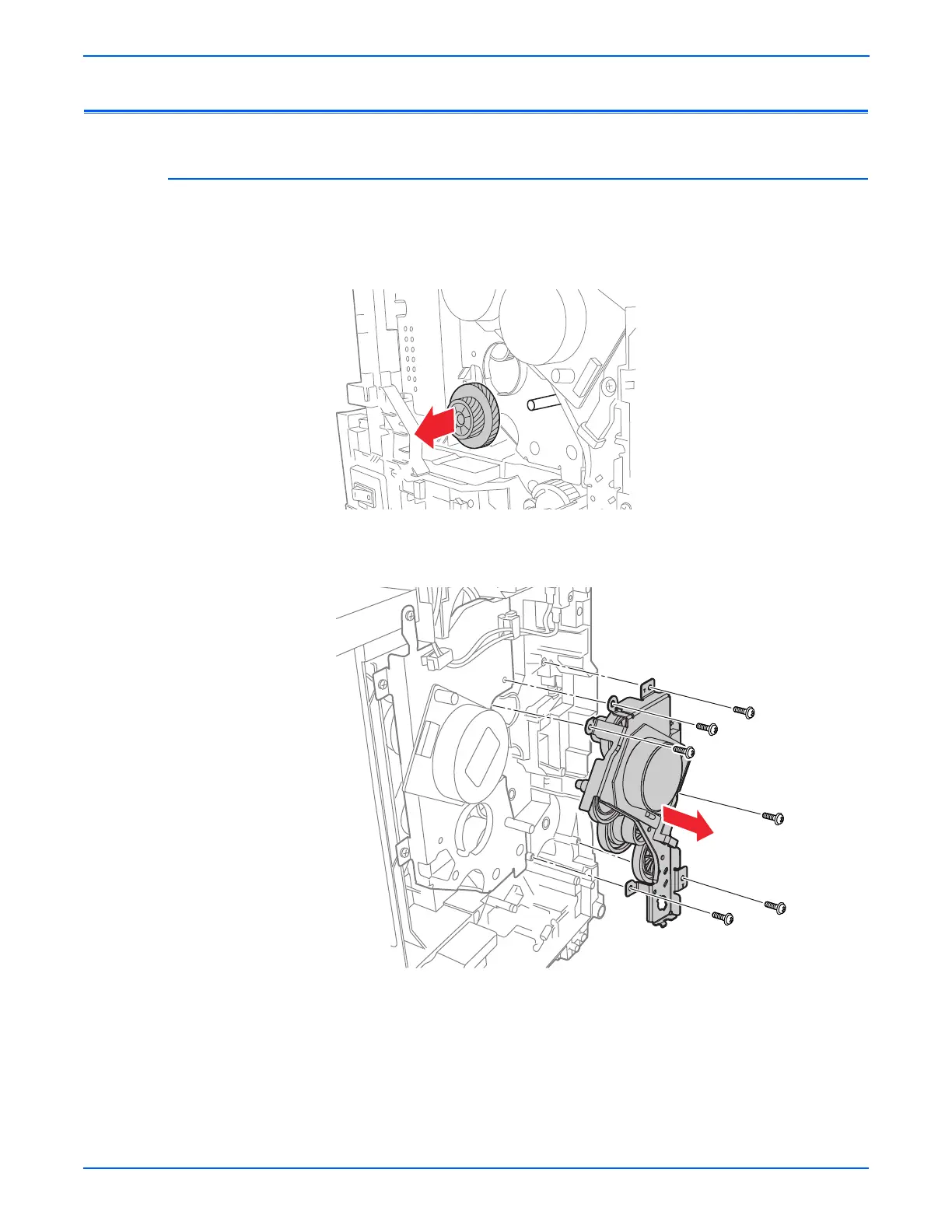

1. Remove the Feed Drive Assembly (page 8-22).
2. Slide Gear P2 from the Sub-Drive shaft.
3. Remove the one screw (silver, M4, 6mm) and the five screws (silver, tap,
8mm) that attach the Main Drive Assembly to the printer.
4. Remove the Main Drive Assembly from the printer.
Replacement Note
Be sure to place the wiring harness connecting the Developer Motor
through the back of the hook on the Drive Assembly
s6130-131
