Phaser 6125/6130 Color Laser Printer Service Manual 8-51
Service Parts Disassembly

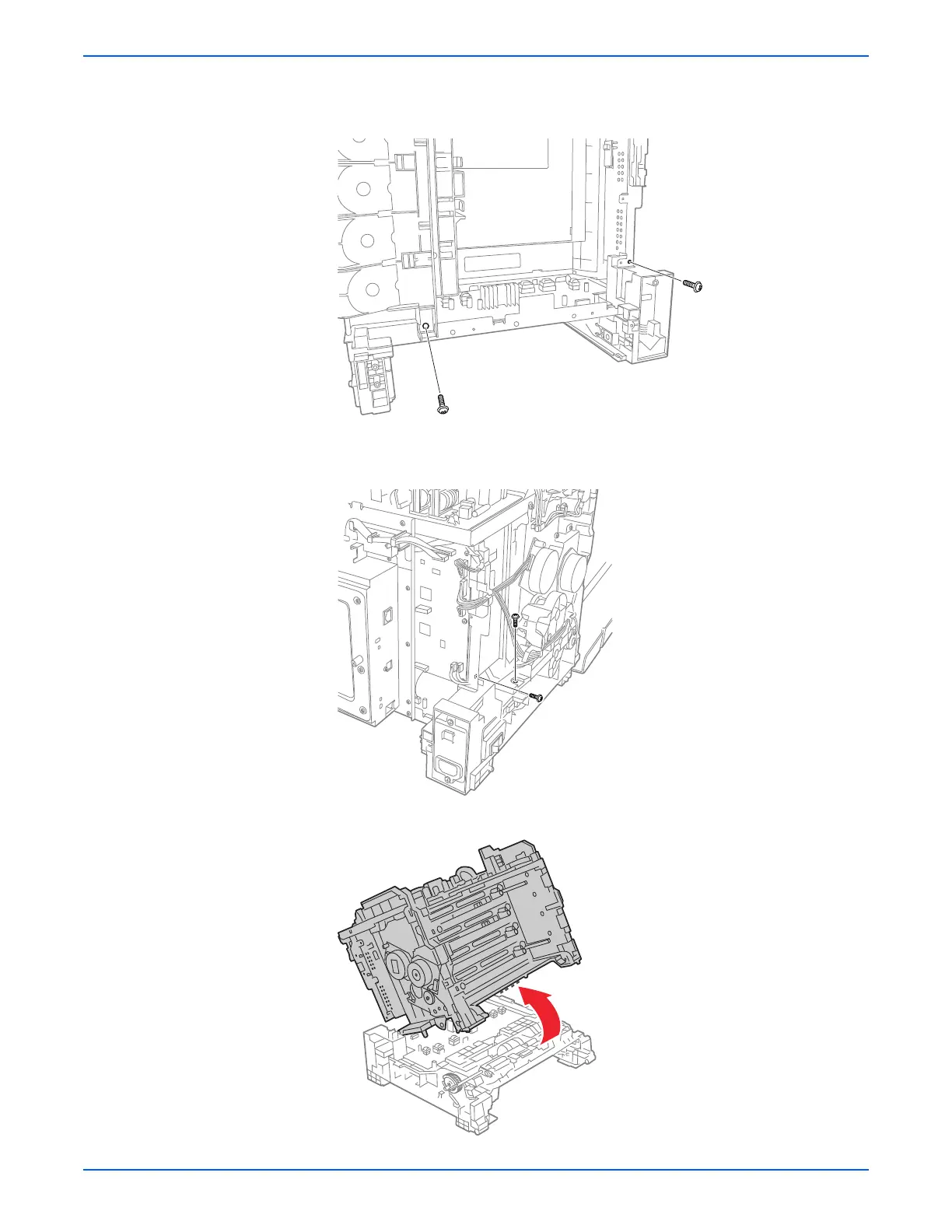

16. Remove the screw (silver, 6mm) that attaches the rear side of the
Dispenser Assembly and the screw (silver, tap, 8mm) that attaches the
MCU L.
17. Remove the screw (silver, tap, 8mm) that attaches the left side of the
printer frame and the screw (silver, tap, 8mm) that attaches the
BRACKET MCU L.
18. Lift the Upper Assembly off of the Lower Assembly.
s6130-124
To Next Page
