Phaser 6125/6130 Color Laser Printer Service Manual 8-63
Service Parts Disassembly
Toner Access Door Switch
(PL5.1.9)

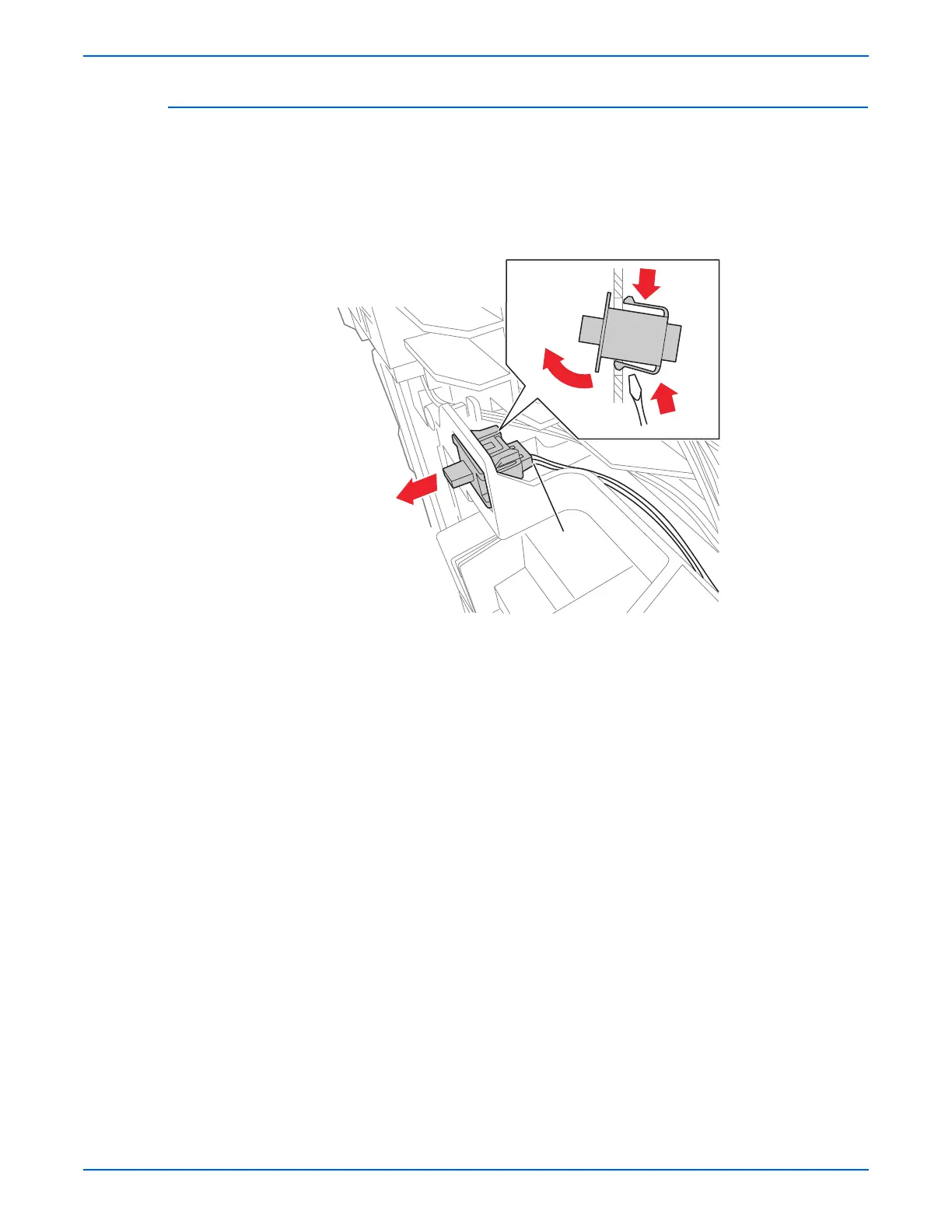

1. Remove the Right Side Cover (page 8-16).
2. Using a miniature screwdriver, release the hooks that latch the switch in
the frame and remove the switch from the printer.
3. Unplug the switch from the harness connector (P/J291).
P/J291
s6130-152
1
2
3
